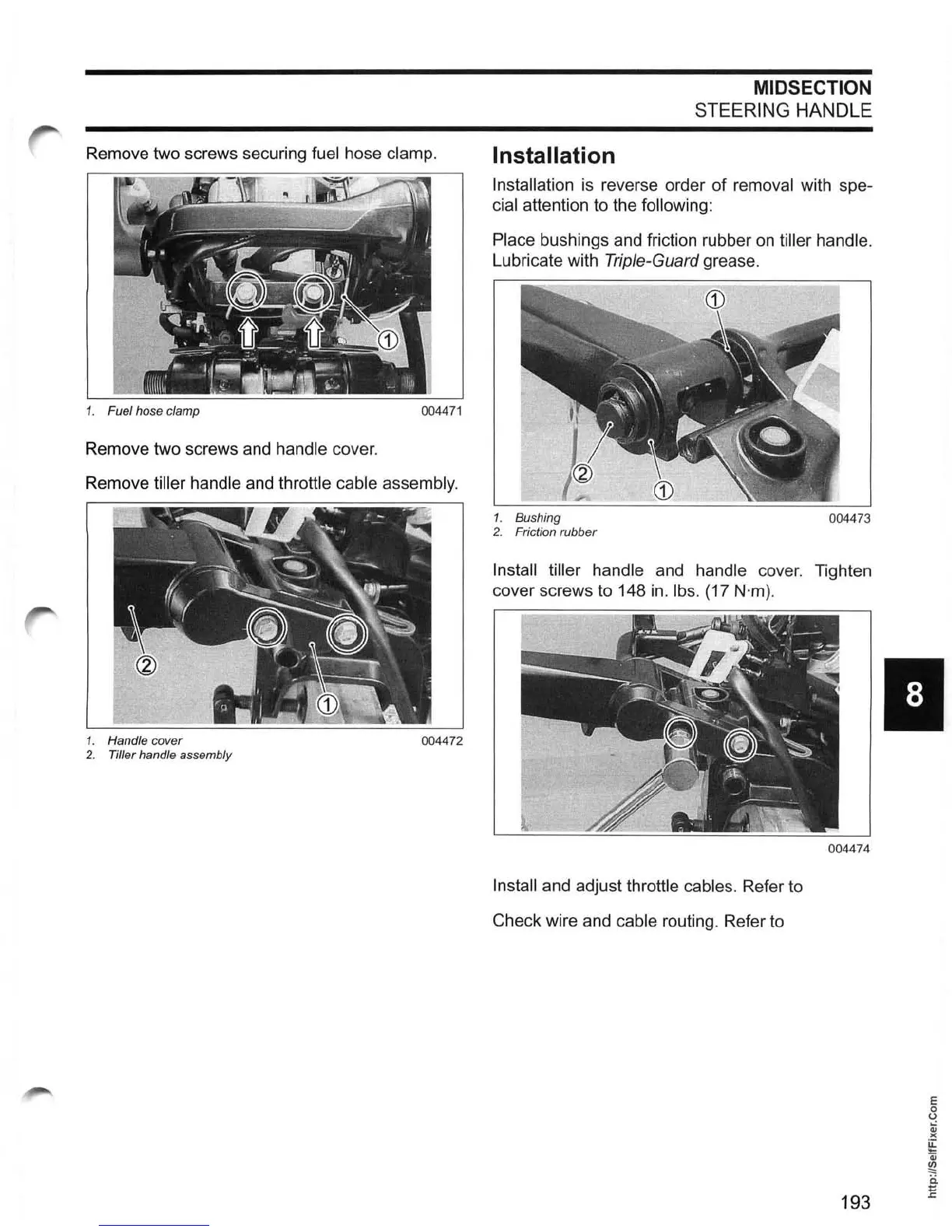

Remove two screws securing fuel hose clamp.
1. Fuel hose clamp
00
44
71
Remove two screws and handle cover.
Remove
tiller handle and throttle cable assembly.
1. Handle cov
er
004472
2. Tiller handle assembly
MIDSECTION
STEERING HANDLE
Installation
Installation
is
reverse order of removal with spe-
cial attention to the following:
Place
bushings and friction rubber
on
tiller handle.
Lubricate with Triple-Guard grease.
1. Bushing
0044
73
2. Friction rubber
Install tiller handle and handle cove
r.
Tighten
cover screws to 148
in
.
Ibs
. (17 N·
m)
.
Install and adjust throttle cables. Refer to
Check wire and
cable routing. Refer to
00
4474
193
•
E
o
o
~
x
~
OJ
VI
:::::
ii
t:
.s::
