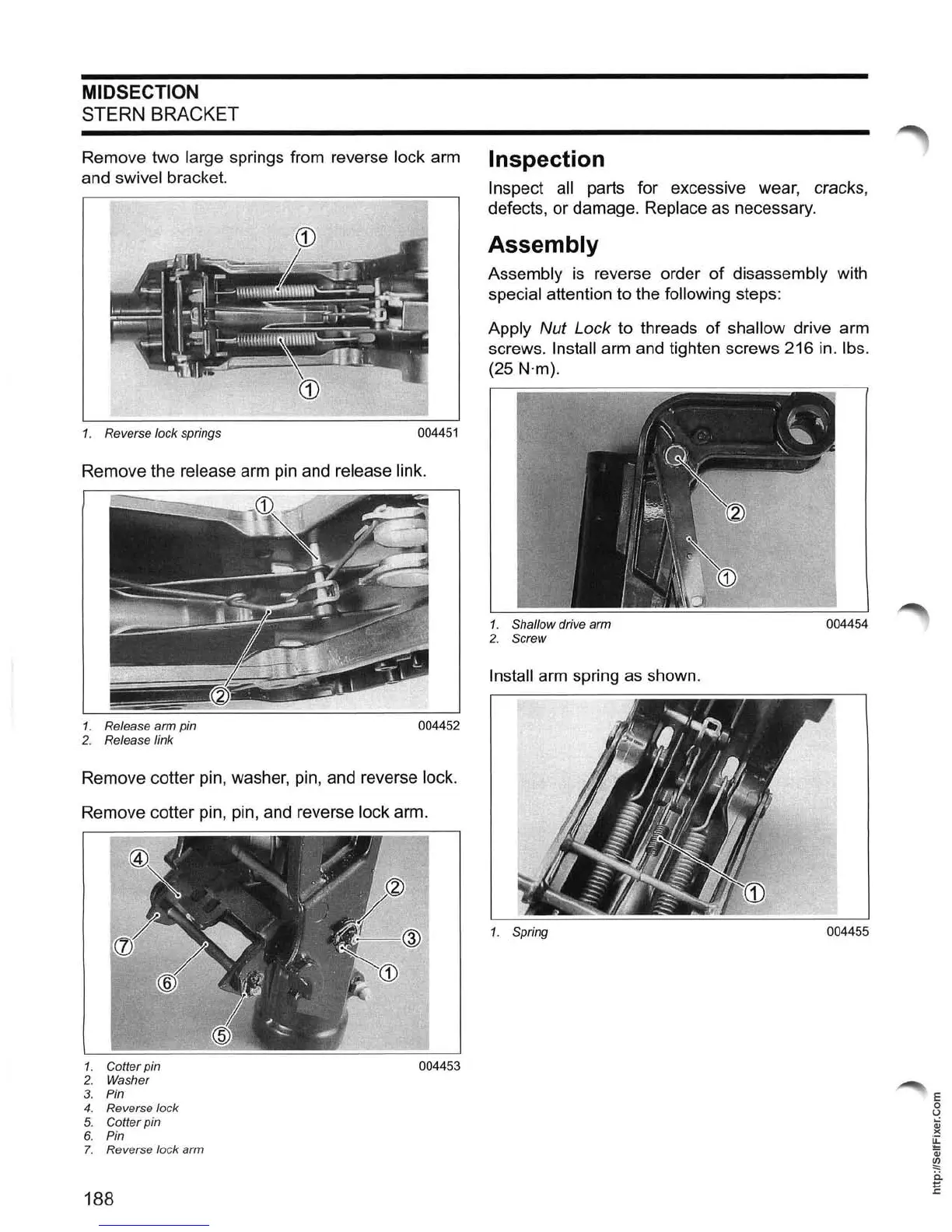

MIDSECTION
STERN
BRACKET
Remove two large springs from reverse lock arm
and
swivel bracket.
1. Reverse lock springs
004451
Remove the release arm
pin
and release link.
1. Release arm pin
004452
2.
Release link
Remove cotter pin, washer,
pin,
and reverse lock.
Remove cotter pin,
pin,
and reverse lock arm.
1. Cotter pin
004453
2.
Washer
3.
Pin
4.
Reverse lock
5.
Cotter pin
6.
Pin
7.
Reverse lock arm
188
Inspection
Inspect
all
parts for excessive wear, cracks,
defects, or damage.
Replace as necessary.
Assembly
Assembly
is
reverse order of disassembly with
special attention
to
the following steps:
Apply Nut Lock
to
threads of shallow drive arm
screws.
Install arm and tighten screws
216
in
. Ibs.
(25 N·m).
1.
Shallow drive arm
004454
2.
Screw
Install arm spring as shown.
1.
Spring
004455
E
o
U
Qj
)(
~
Qj
~
ii
E
