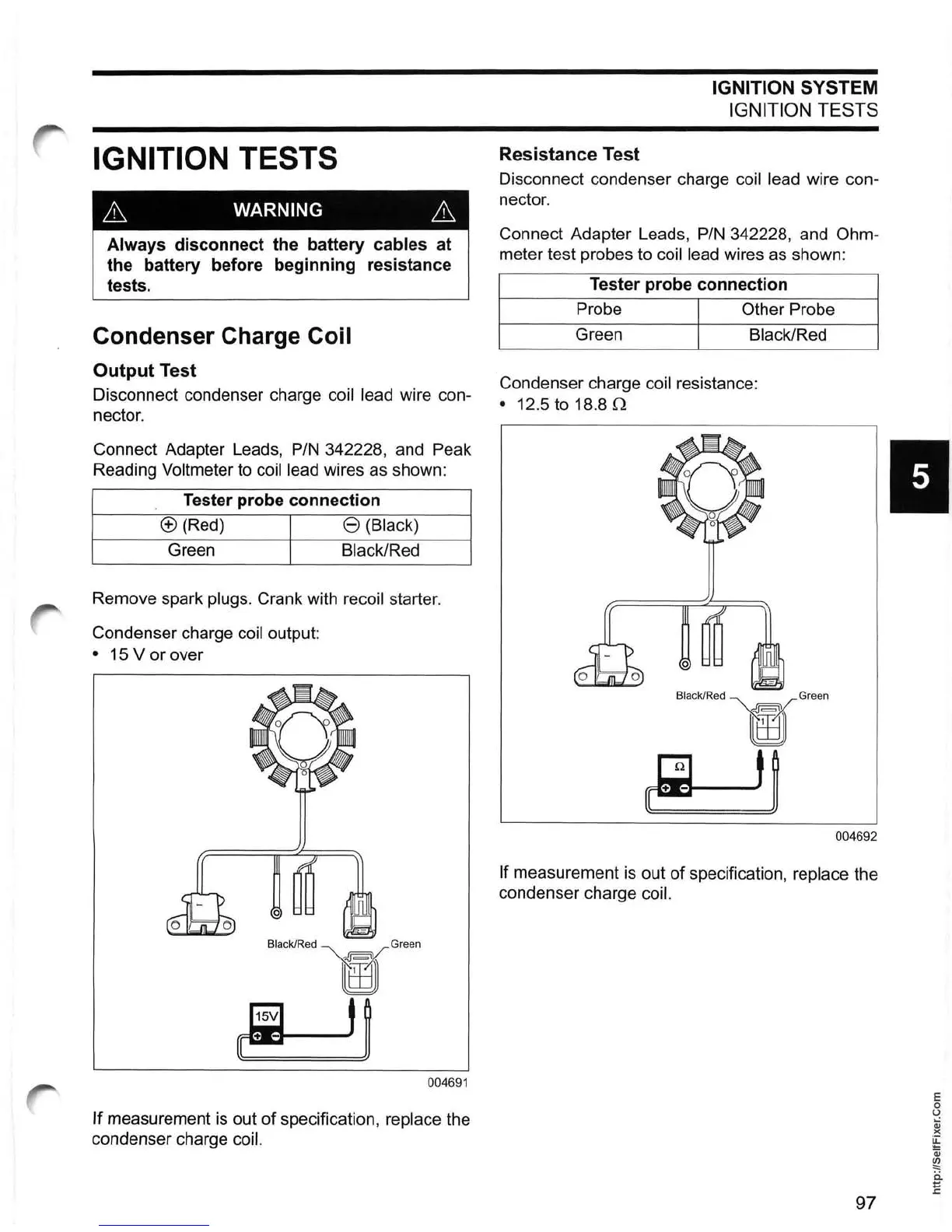

IGNITION TESTS
ill WARNING ill
Always disconnect the battery cables at
the battery before beginning resistance
tests.
Condenser Charge Coil
Output Test
Disconnect condenser charge coil lead wire con-
nector.
Connect Adapter Leads,
PIN 342228, and Peak
Reading Voltmeter to coil lead wires as shown:
Tester probe connection
® (Red) e (Black)
Green
BlacklRed
Remove spark plugs. Crank with recoil starter.
Condenser charge
coil output:
• 15 V or over
004691
If measurement is out of specification, replace the
condenser charge
coil.
IGNITION SYSTEM
IGNITION TESTS
Resistance Test
Disconnect condenser charge coil lead wire con-
nector.
Connect Adapter Leads,
PIN 342228, and Ohm-
meter test probes to coil lead wires as shown:
Tester probe connection
Probe Other Probe
Green Black/Red
Condenser charge coil resistance:
• 12.5 to 18.8 n
Black/Red ~ ~Green
~
~ q
004692
If measurement is out of specification, replace the
condenser charge
coil.
97
•
