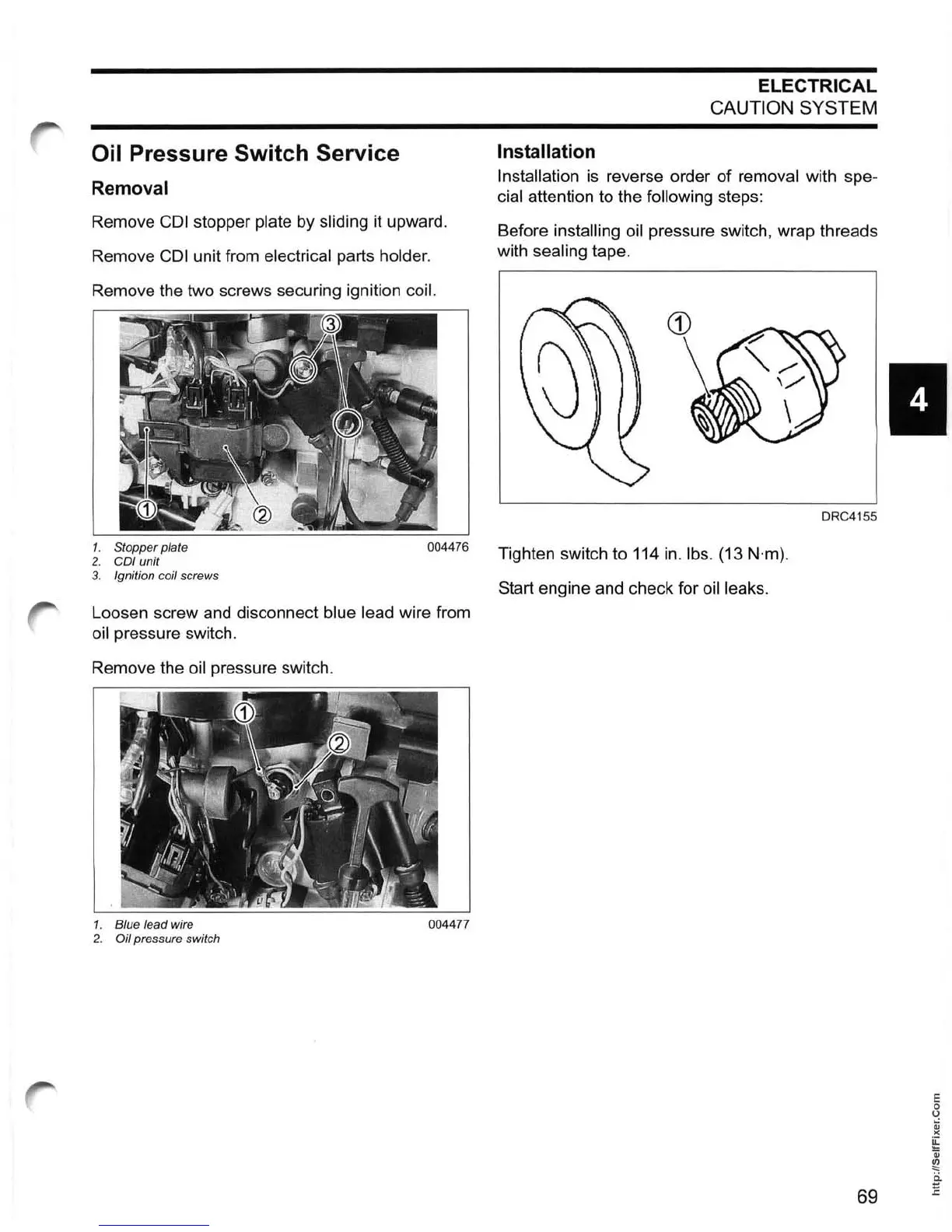

Oil Pressure Switch Service
Removal
Remove
COl
stopper plate by sliding it upward.
Remove
COl
unit from electrical parts holder.
Remove the two screws securing ignition coil.
1. Stopper plate
004476
2. COl unit
3. Ignition coil screws
Loosen screw and disconnect blue lead wire from
oil pressure switch.
Remove the
oil pressure switch.
1. Blue lead wire
004477
2. Oil pressure switch
ELECTRICAL
CAUTION SYSTEM
Installation
Installation is reverse order of removal with spe-
cial attention to the following steps:
Before
installing oil pressure switch, wrap threads
with
sealing tape.
Tighten switch to
114
in.
Ibs. (13 N·m).
Start engine and check for oil leaks.
DRC4155
