FUEL SYSTEM
CARBURETOR SERVICE

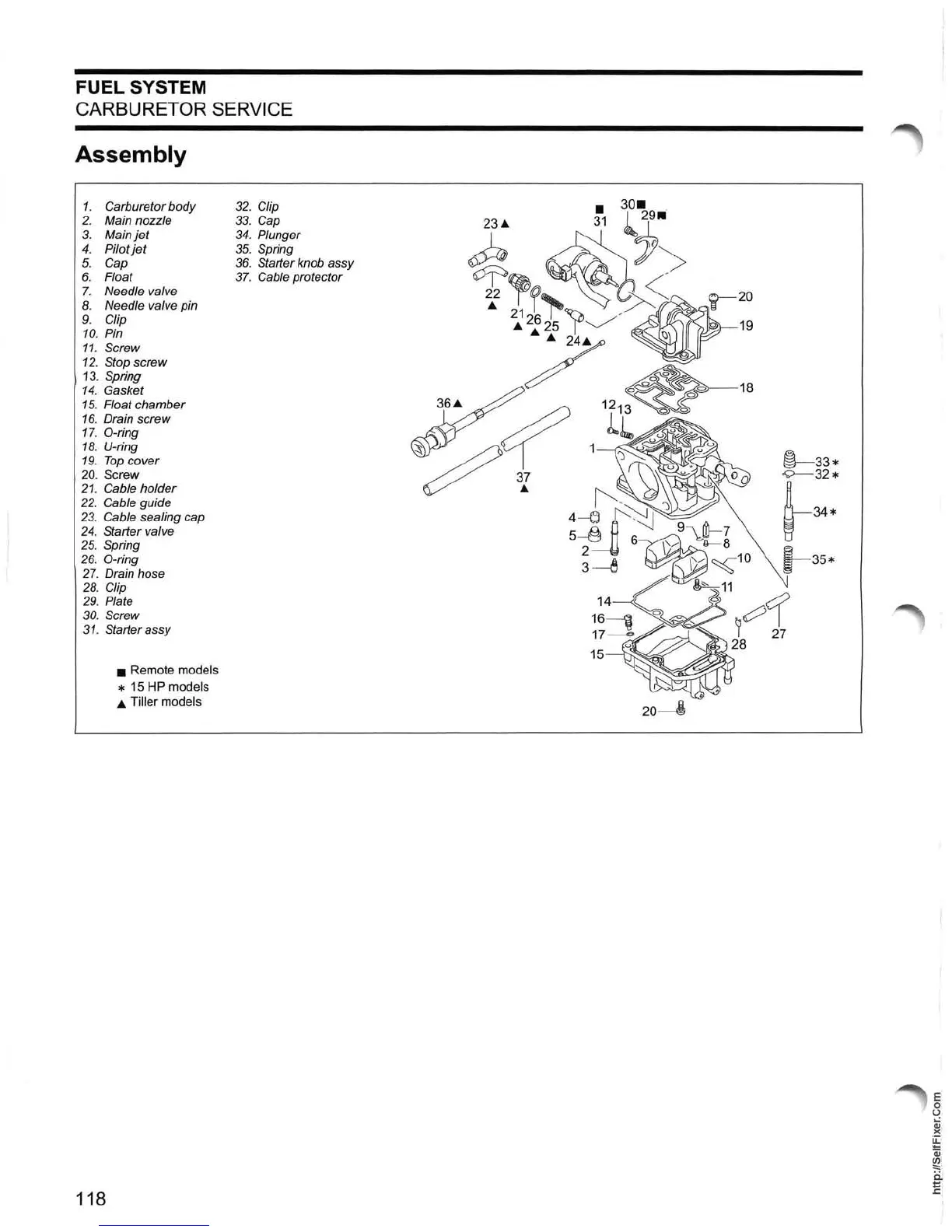

Assembly
1. Carburetor body
2. Main nozzle
3. Main jet
4. Pilot jet
5. Cap
6. Float
7. Needle valve
8. Needle valve pin
9. Clip
10. Pin
11. Screw
12 . Stop screw
13. Spring
14. Gasket
15. Float chamber
16. Drain screw
17. O-ring
18. U-ring
19. Top cover
20. Screw
21. Cable holder
22. Cable guide
23. Cable sealing cap
24. Starter valve
2
5. Spring
26. O-ring
27. Drain hose
28. Clip
29. Plate
30.
Screw
31 . Starter assy
118
• Remote models
* 15 HP models
.6. Tiller models
32. Clip
33. Cap
34 . Plunger
35 . Spring
36 . Starter knob assy
37. Cable protector
