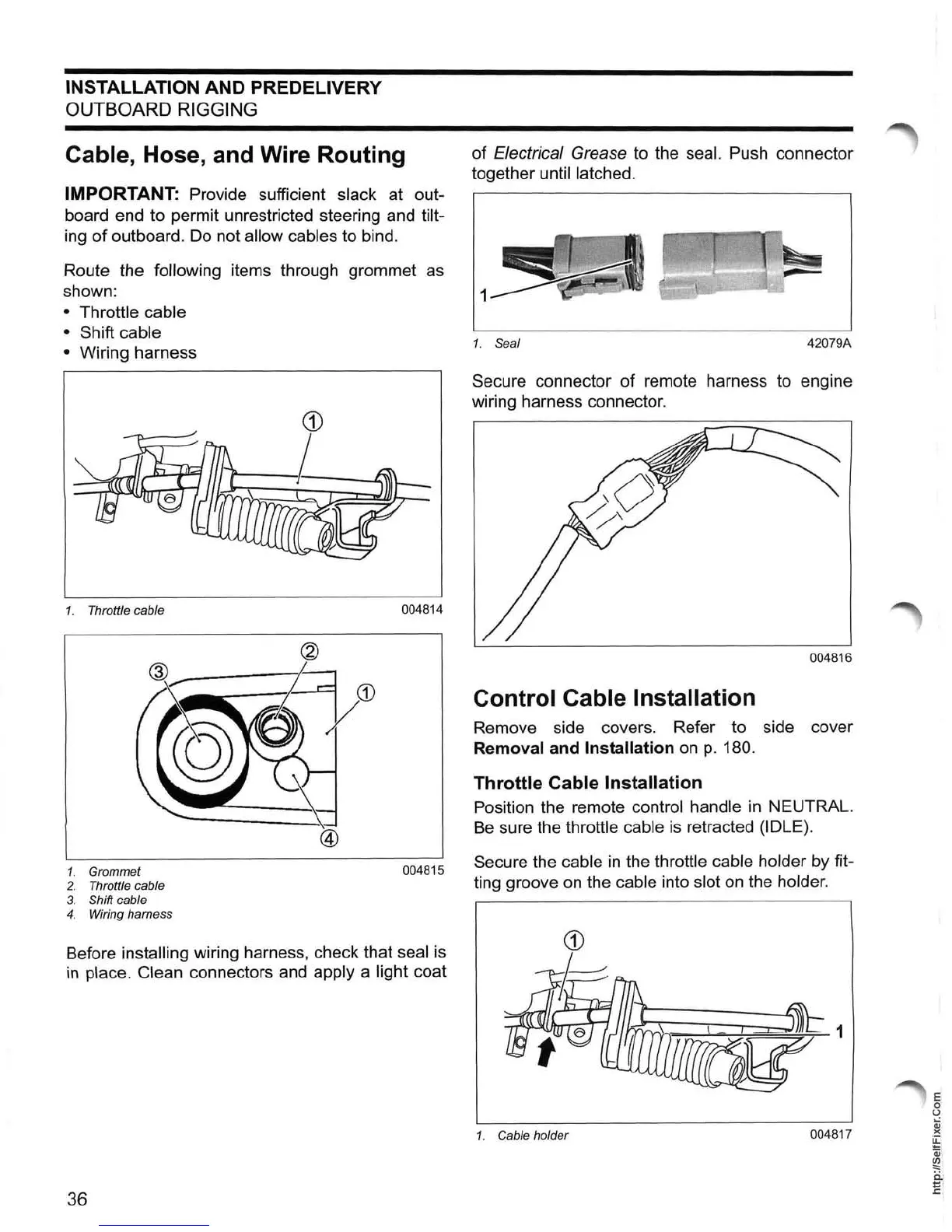

INSTALLATION AND PREDELIVERY
OUTBOARD RIGGING
Cable, Hose, and Wire Routing
IMPORTANT: Provide sufficient slack at out-
board end to permit unrestricted steering and
tilt-
ing
of
outboard.
Do
not allow cables to bind.
Route the
following items through grommet as
of
Electrical Grease to the seal. Push connector
together
until latched.
shown: 1
• Throttle cable
• Shift cable
•
Wiring harness
1.
Throttle cable
004814
1. Grommet
004815
2. Throttle cable
3.
Shift cable
4.
Wiring harness
Before installing wiring harness, check that seal
is
in
place. Clean connectors and apply a light coat
36
1. Seal
42079A
Secure connector
of
remote harness to engine
wiring harness connector.
004816
Control Cable Installation
Remove side covers. Refer to side cover
Removal and Installation
on
p.
180.
Throttle Cable Installation
Position the remote control handle
in
NEUTRAL.
Be
sure the throttle cable
is
retracted (IDLE).
Secure
the cable
in
the throttle cable holder by fit-
ting groove
on
the cable into slot
on
the holder.
1. Cable holder
004817
