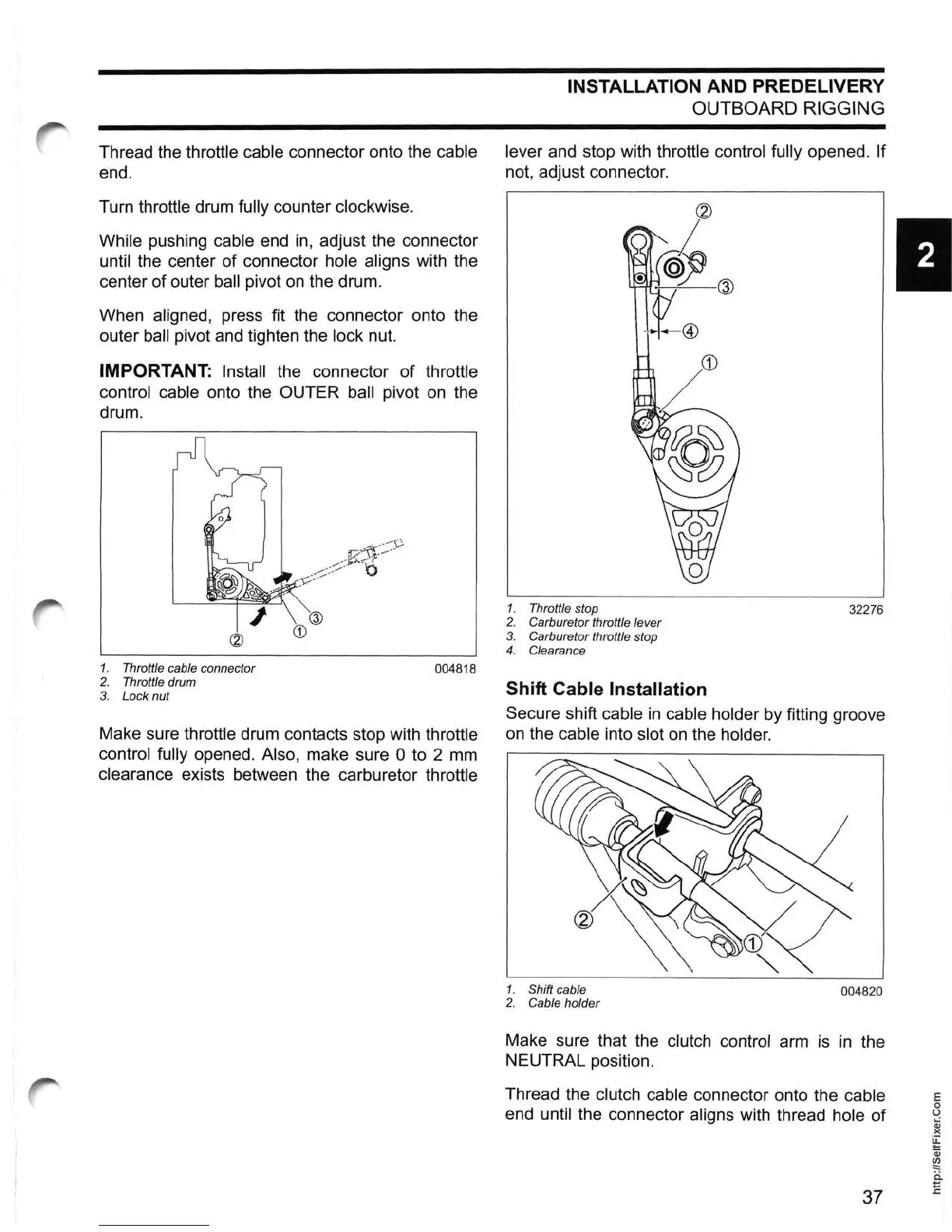

Thread the throttle cable connector onto the cable
end.
Turn
throttle drum fully counter clockwise.
While pushing cable end
in,
adjust the connector
until the center of connector
hole aligns with the
center of outer
ball pivot
on
the drum.
When
aligned, press fit the connector onto the
outer
ball pivot and tighten the lock nut.
IMPORTANT: Install the connector
of
throttle
control cable onto the OUTER ball pivot
on
the
drum.
1.
Throttle cable connector
2.
Throttle drum
3. Lock nut
@
CD
004818
Make sure throttle drum contacts stop with throttle
control fully
opened. Also, make sure 0 to 2
mm
clearance exists between the carburetor throttle
INSTALLATION AND PREDELIVERY
OUTBOARD RIGGING
lever and stop with throttle control fully opened. If
not, adjust connector.
1. Throttle stop
3
22
76
2.
Carburetor throttle lever
3.
Carburetor throttle stop
4. Clearance
Shift Cable Installation
Secure shift cable
in
cable holder by fitting groove
on
the cable into slot
on
the holder.
1. Shift cable
00
4820
2. Cable holder
Make sure that the clutch control arm is
in
the
NEUTRAL position.
Thread the
clutch cable connector onto the cable
end until the connector aligns with thread hole
of
37
