THROTTLE CONTROL
Installation/Adjustment
Tiller Models
!
i-~j
:'
i
l,
\
-\f
FUEL SYSTEM
THROTTLE CONTROL

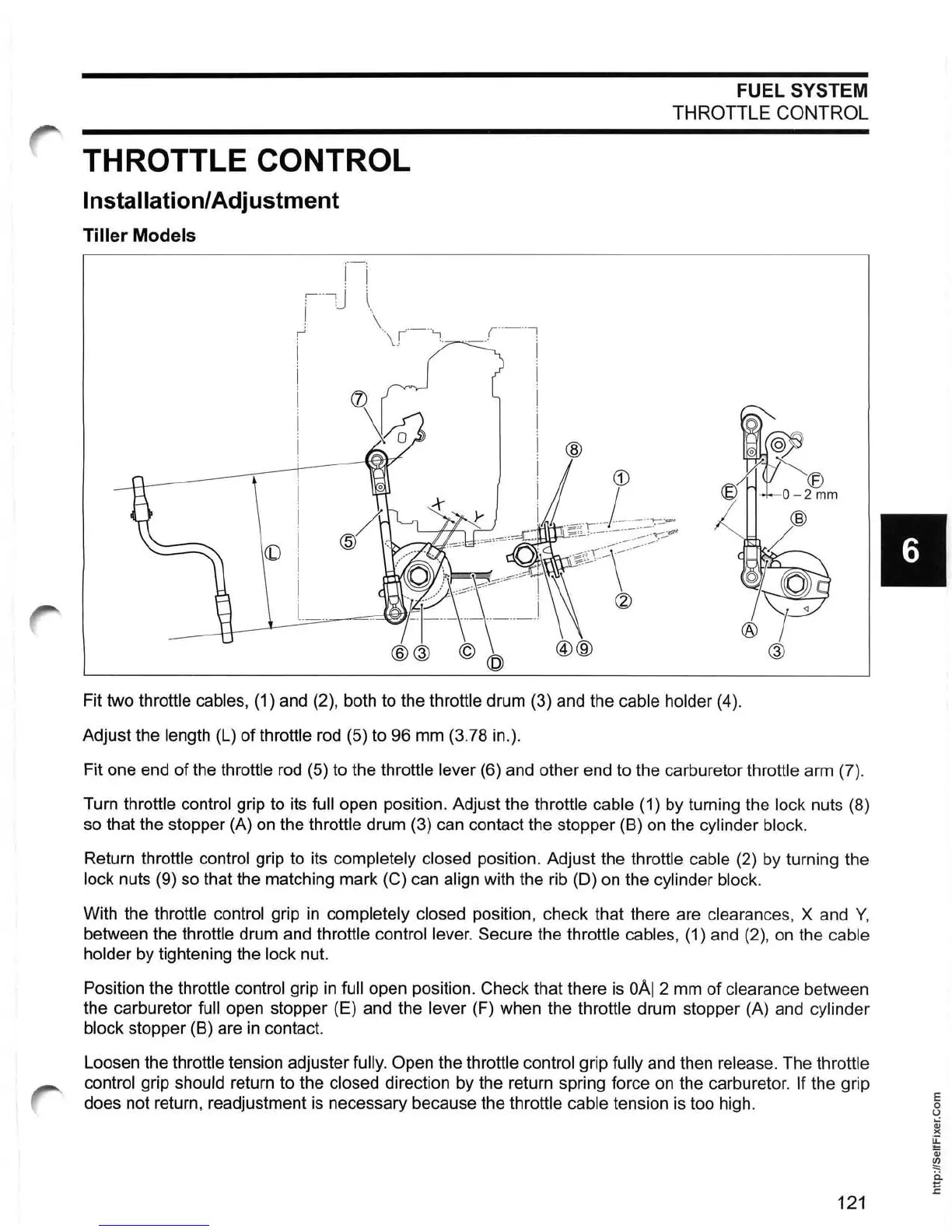

Fit two throttle cables, (1) and (2), both to the throttle drum (3) and the cable holder (4).
Adjust the
length (L) of throttle rod (5) to 96 mm (3.78 in.).
Fit one end of the
throttle rod (5) to the throttle lever (6) and other end to the carburetor throttle arm (7).
Turn
throttle control grip to its full open position. Adjust the throttle cable (1)
by
turning the lock nuts (8)
so that the stopper (A)
on
the throttle drum (3) can contact the stopper (8)
on
the cylinder block.
Return throttle control grip to its completely closed position. Adjust the throttle cable (2)
by
turning the
lock nuts (9) so that the matching mark (C) can align with the rib (D)
on
the cylinder block.
With the throttle control grip
in
completely closed position, check that there are clearances, X and
Y,
between the throttle drum and throttle control lever. Secure the throttle cables, (1) and (2),
on
the cable
holder
by tightening the lock nut.
Position the
throttle control grip
in
full open position. Check that there is
oAI
2
mm
of clearance between
the carburetor
full open stopper (E) and the lever (F) when the throttle drum stopper (A) and cylinder
block
stopper (8) are
in
contact.
Loosen the
throttle tension adjuster fully. Open the throttle control grip fully and then release. The throttle
control
grip should return to the closed direction by the return spring force
on
the carburetor. If the grip
does not return, readjustment is necessary because the
throttle cable tension is too high.
