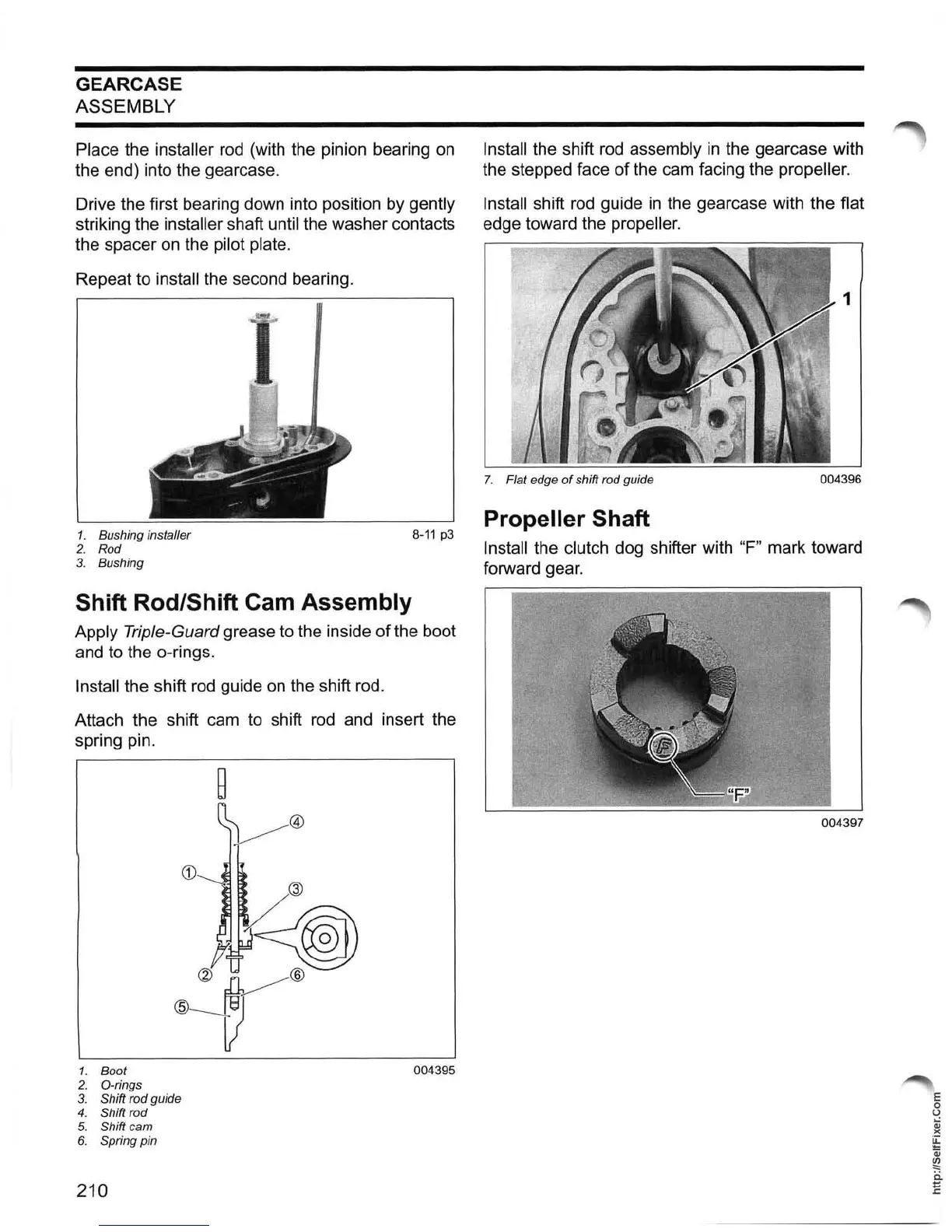

GEARCASE
ASSEMBLY
Place the installer
rod
(with the pinion bearing
on
the end) into the gearcase.
Drive the first bearing down into position by gently
striking the
installer shaft until the washer contacts
the spacer
on
the pilot plate.
Repeat to
install the second bearing.
1. Bushing installer
8-
11
p3
2.
Rod
3. Bushing
Shift Rod/Shift Cam Assembly
Apply Triple-Guard grease
to
the inside
of
the boot
and to the o-rings.
Install the shift rod guide
on
the shift rod .
Attach the shift cam to shift
rod
and insert the
spring pin.
8
1. Boot
004395
2. O-rings
3. Shift rod guide
4. Shift rod
5. Shift cam
6.
Spring pin
210
Install the shift
rod
assembly
in
the gearcase with
the stepped face of the cam facing the
propeller.
Install
shift rod guide
in
the gearcase with the flat
edge toward the
propeller.
1
7. Flat edge
of
shift rod guide
004396
Propeller Shaft
Install the clutch dog shifter with
"F
" mark toward
forward gear.
004397
E
o
U
Qj
)(
~
Qj
~
ii
E
