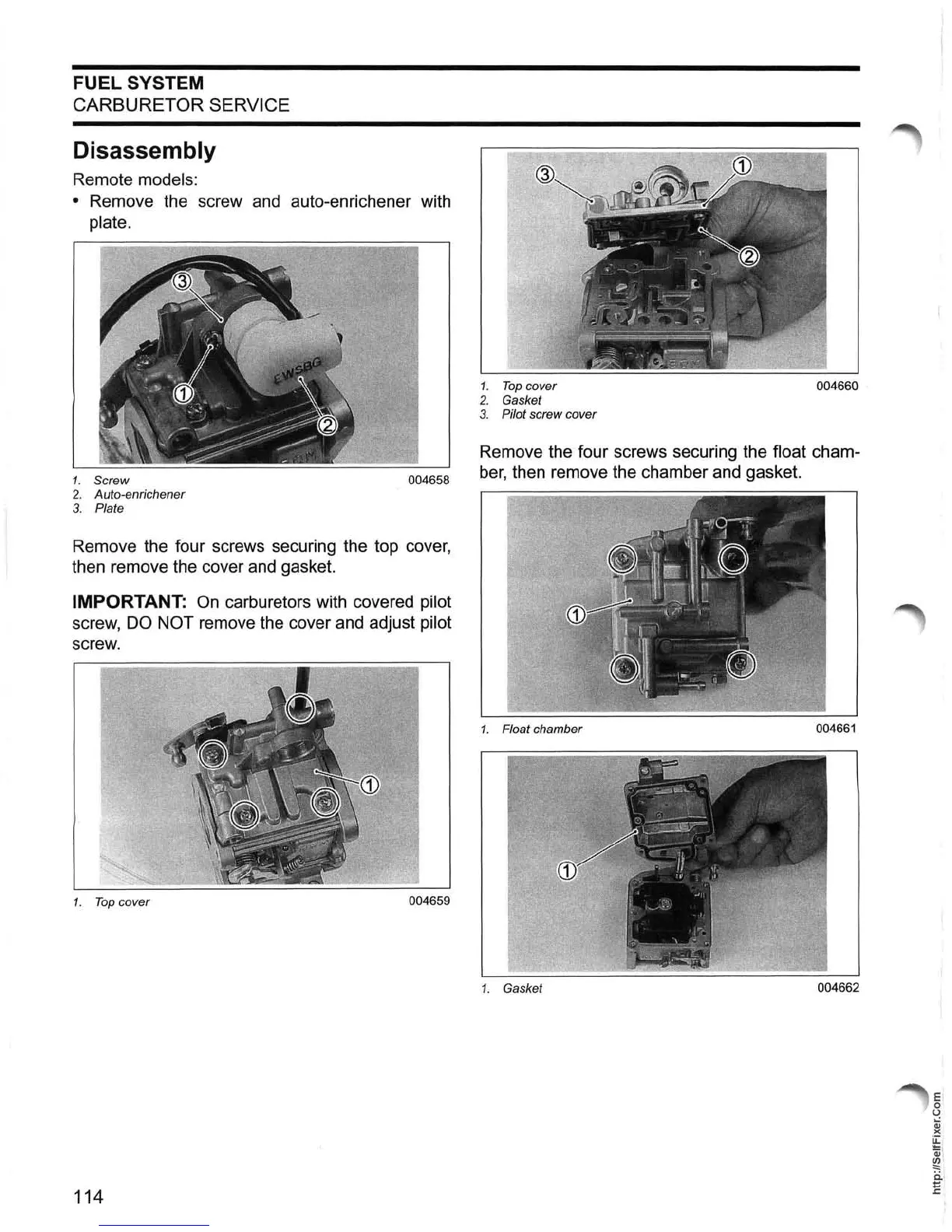

FUEL
SYSTEM
CARBURETOR SERVICE
Disassembly
Remote models:
•
Remove the screw and auto-enrichener
with
plate.
1.
Screw
004658
2.
Auto-enrichener
3. Plate
Remove the four screws securing the
top
cover,
then remove the cover and gasket.
IMPORTANT: On carburetors
with
covered pilot
screw,
DO
NOT
remove the cover and adjust
pilot
screw.
1.
Top
cover
004659
114
1.
Top
cover 004660
2.
Gasket
3.
Pilot screw cover
Remove the four screws securing the float cham-
ber,
then remove the chamber and gasket.
1. Float chamber
004661
1. Gasket
004662
