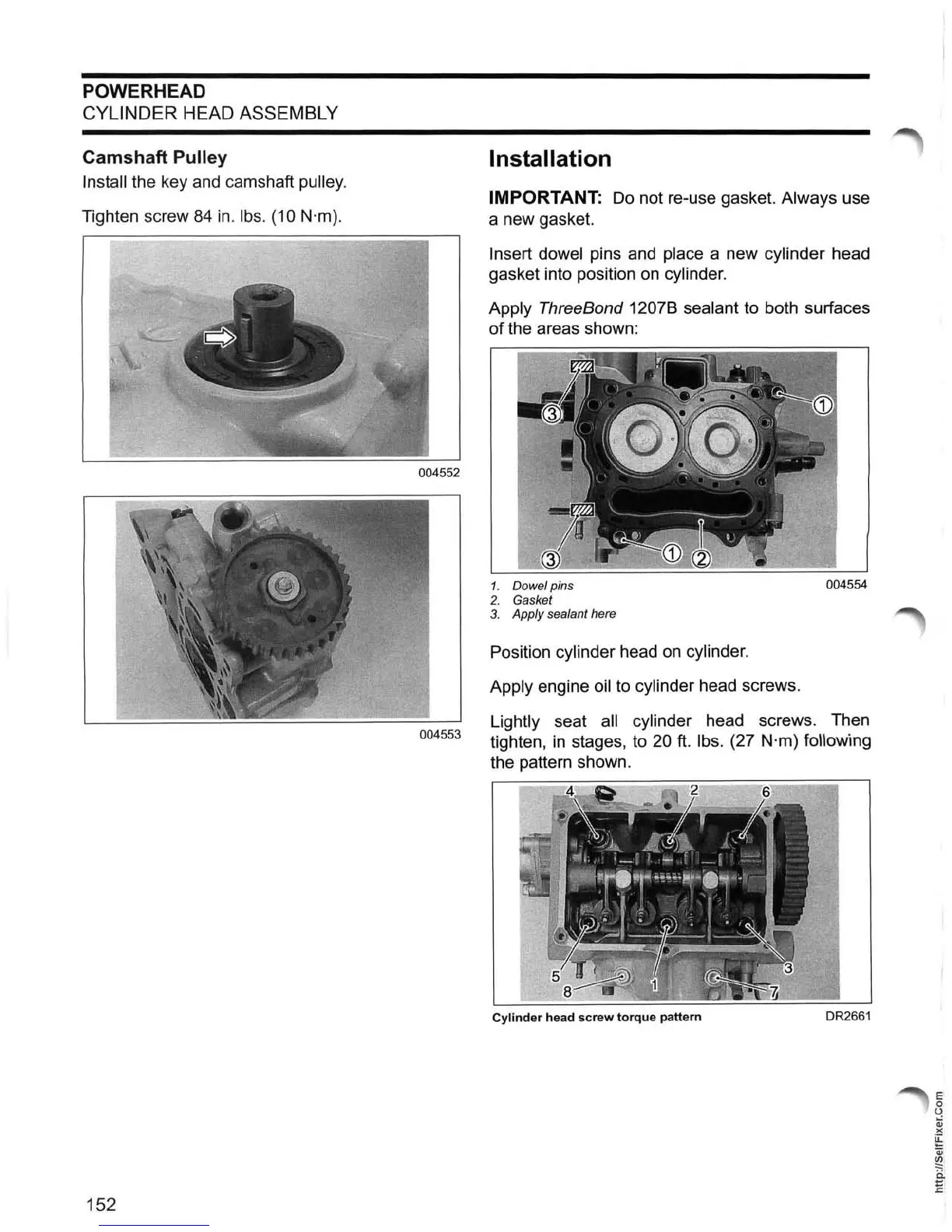

POWERHEAD
CYLINDER HEAD ASSEMBLY
Camshaft Pulley
Install the key and camshaft pulley.
Tighten screw
84
in.
Ibs. (10 N·m).
004552
004553
152
Installation
IMPORTANT: Do not re-use gasket. Always use
a new gasket.
Insert dowel pins and place a new cylinder head
gasket into position
on
cylinder.
Apply
ThreeBond 12078 sealant to both surfaces
of the areas shown:
1. Dowel pins
004554
2. Gasket
3. Apply sealant here
Position cylinder head on cylinder.
Apply
engine oil to cylinder head screws.
Lightly seat all cylinder head screws. Then
tighten,
in
stages, to 20
ft.
Ibs. (27 N'm) following
the pattern shown.
Cylinder
head
screw
torque
pattern
DR2661
