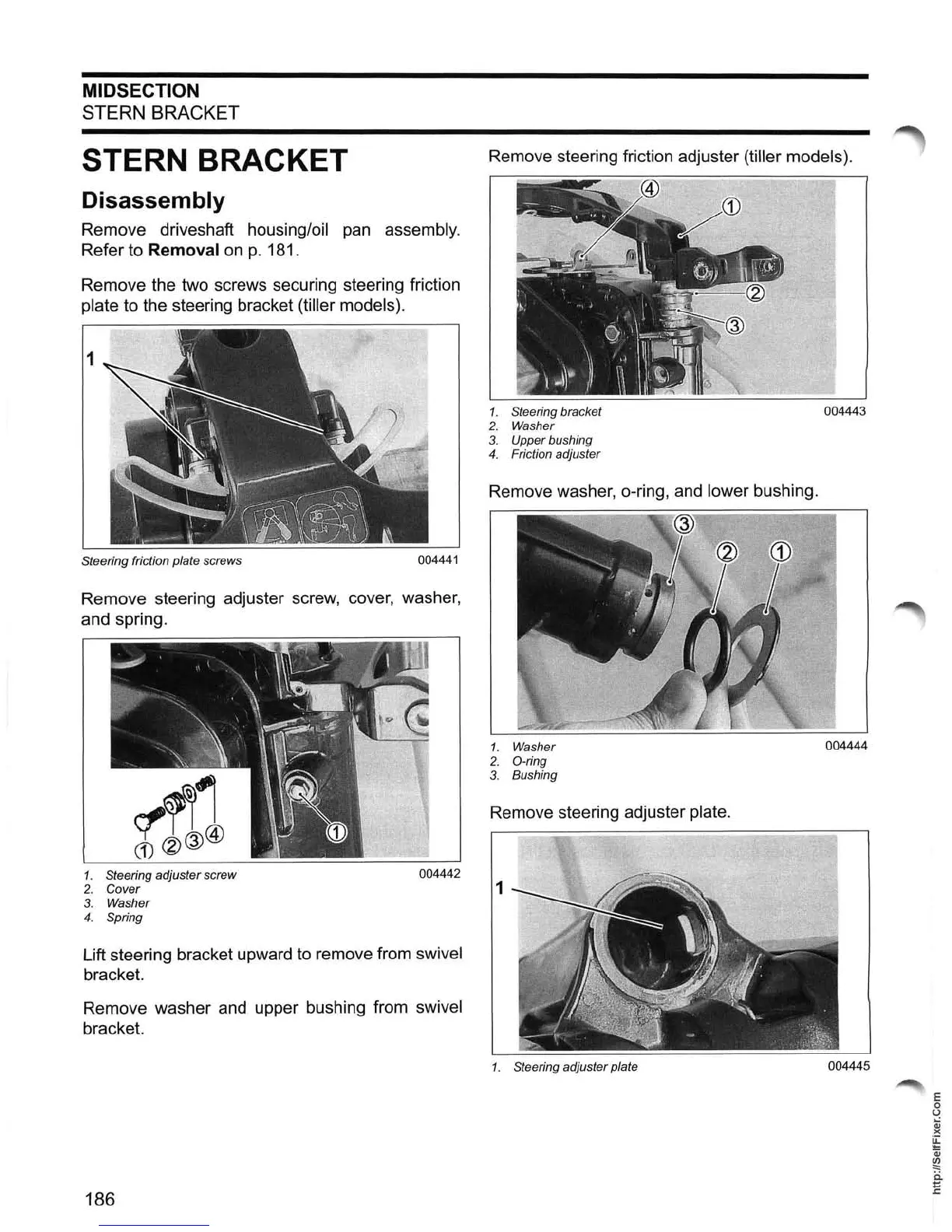

BRP 2995 Johnson - Stern Bracket; Disassembly

MIDSECTION
STERN
BRACKET
STERN BRACKET
Disassembly
Remove driveshaft housing/oil pan assembly.
Refer to Removal on p. 181.
Remove the two screws securing steering friction
plate to the steering bracket (tiller models).
1
Steering friction plate screws
004441
Remove steering adjuster screw, cover, washer,
and spring.
1. Steering adjuster screw
004442
2. Cover
3. Washer
4.
Spring
Lift steering bracket upward to remove from swivel
bracket.
Remove washer and upper bushing from
swivel
bracket.
186
Remove steering friction adjuster (tiller models).
1. Steering bracket
004443
2. Washer
3. Upper bushing
4. Friction adjuster
Remove washer, o-ring, and lower bushing.
1. Washer
004444
2. O-ring
3. Bushing
Remove steering adjuster plate.
1
1. Steering adjuster plate
004445
