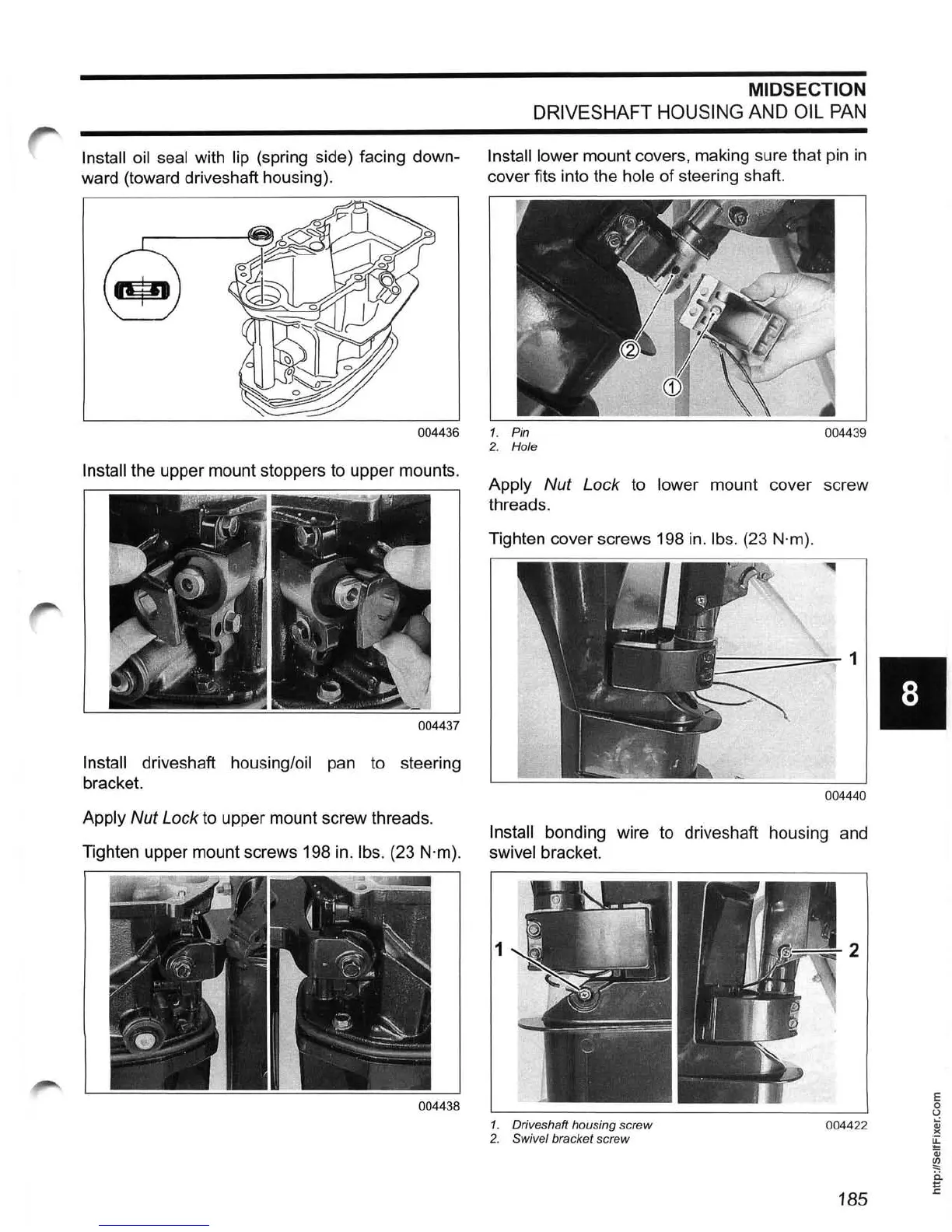

Install oil seal with lip (spring side) facing down-
ward (toward driveshaft housing).
004436
Install the upper mount stoppers to upper mounts.
004437
Install driveshaft housing/oil pan to steering
bracket.
Apply Nut Lock to upper mount screw threads.
Tighten upper mount screws 198
in.
Ibs. (23 N·m).
004438
MIDSECTION
DRIVESHAFT HOUSING AND OIL
PAN
Install lower mount covers, making sure that pin
in
cover fits into the hole of steering shaft.
1. Pin
004439
2. Hole
Apply Nut Lock to lower mount cover screw
threads.
Tighten cover screws 198
in
. Ibs. (23 N·m).
:
~:::::==~
1
004440
Install bonding wire to driveshaft housing and
swivel bracket.
1
2
1. Driveshaft housing screw
004422
2. Swivel bracket screw
185
•
E
o
U
Qj
)(
~
Qj
~
ii
E
