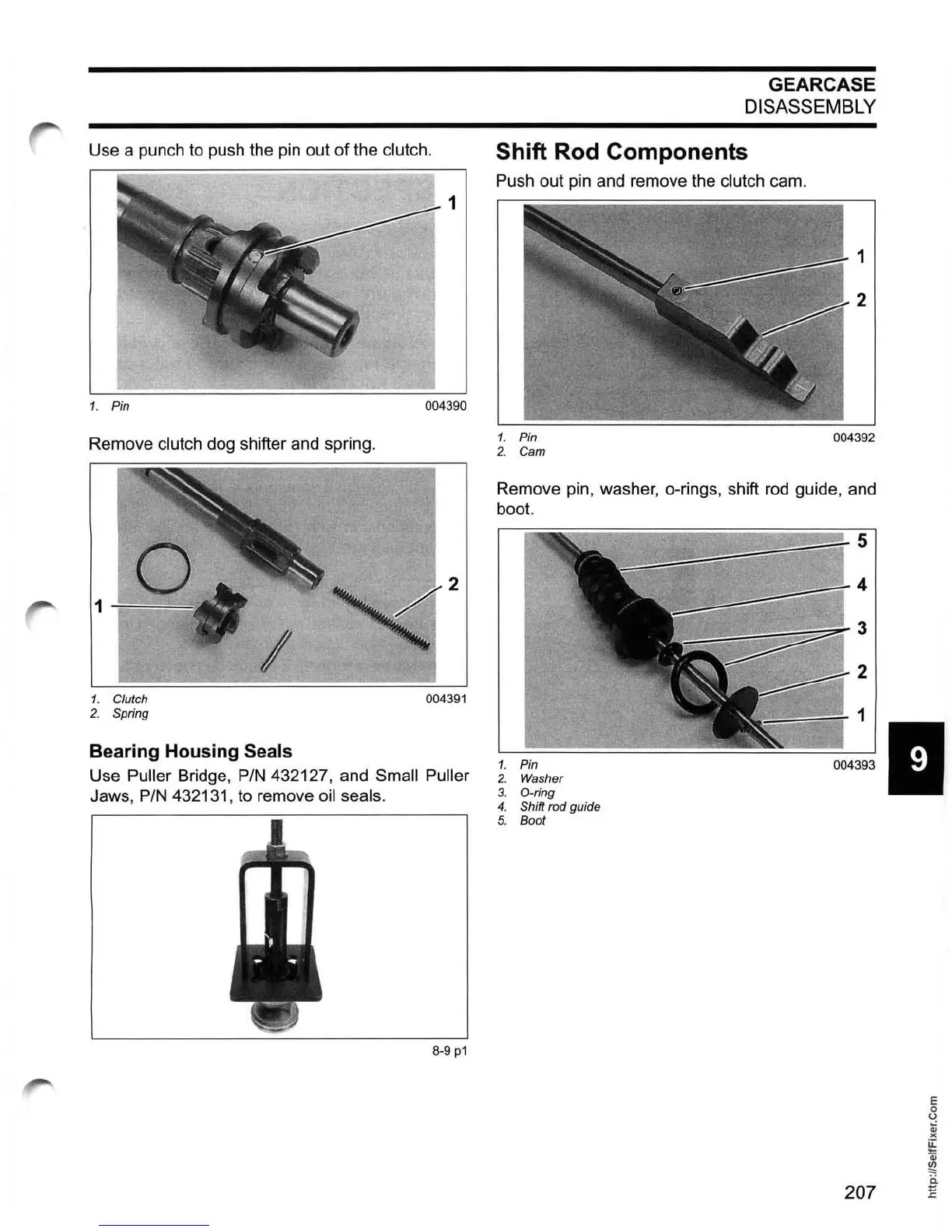

Use a punch to push the pin out of the clutch.
1
1. Pin 004390
Remove clutch dog shifter and spring.
1. Clutch
004391
2. Spring
Bearing Housing Seals
Use Puller Bridge, PIN 432127, and Small Puller
Jaws, PIN 432131, to remove oil seals.
8-9 p1
GEARCASE
DISASSEMBLY
Shift Rod Components
Push out pin and remove the clutch cam.
1
2
1. Pin
004392
2. Cam
Remove pin, washer, o-rings, shift rod guide, and
boot.
5
4
3
2
1
1. Pin
004393
2. Washer
3.
O-ring
4. Shift rod guide
5. Boot
207
