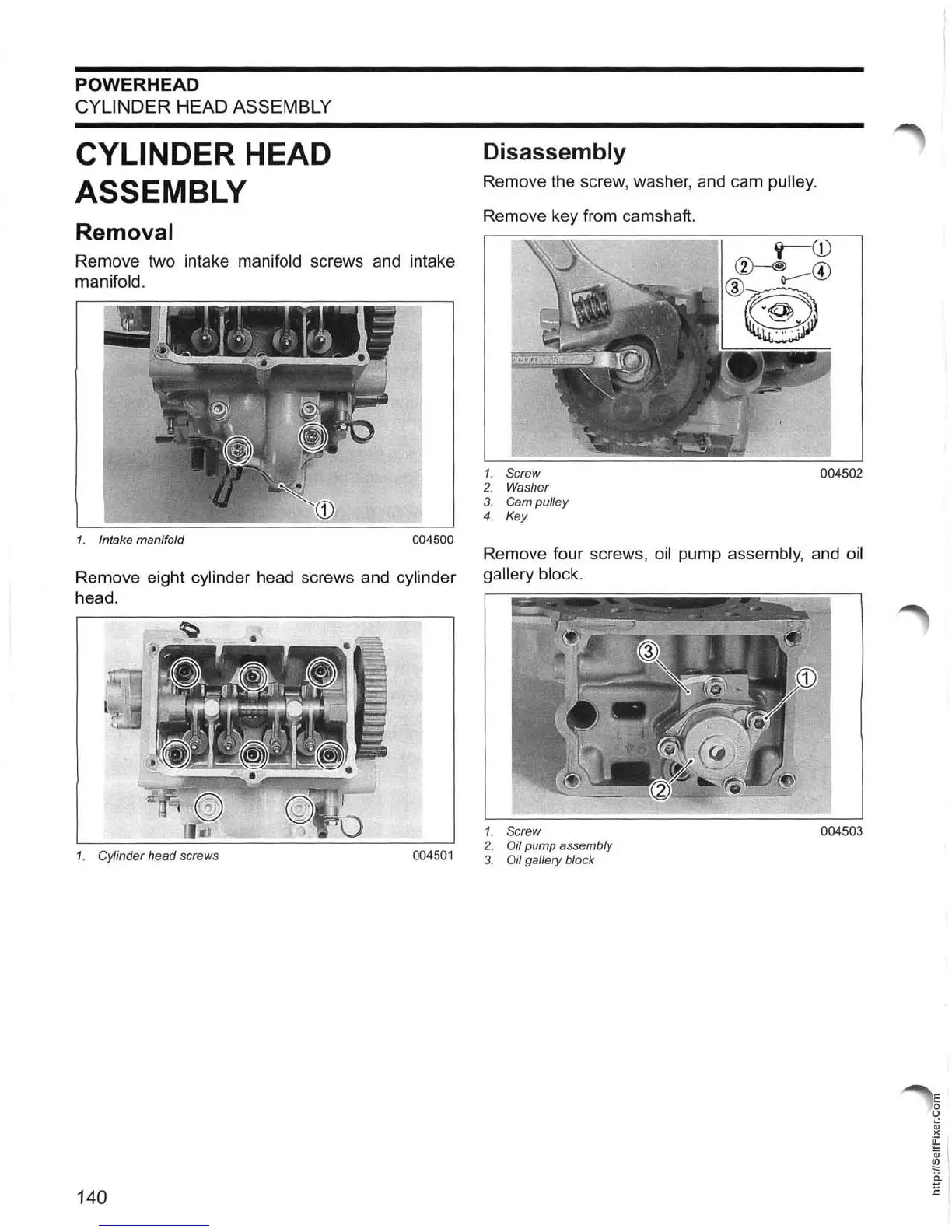

BRP 2995 Johnson - Cylinder Head Assembly; Removal; Disassembly

POWERHEAD
CYLINDER HEAD ASSEMBLY
CYLINDER HEAD
ASSEMBLY
Removal
Remove two intake manifold screws and intake
manifold.
1. Intake manifold 004500
Remove eight cylinder head screws and cylinder
head.
1. Cylinder head screws
004501
140
Disassembly
Remove the screw, washer, and cam pulley.
Remove key from camshaft.
1. Screw 004502
2. Washer
3. Cam pulley
4. Key
Remove four screws, oil pump assembly, and oil
gallery block.
1. Screw 004503
2. Oil pump assembly
3. Oil gallery block
