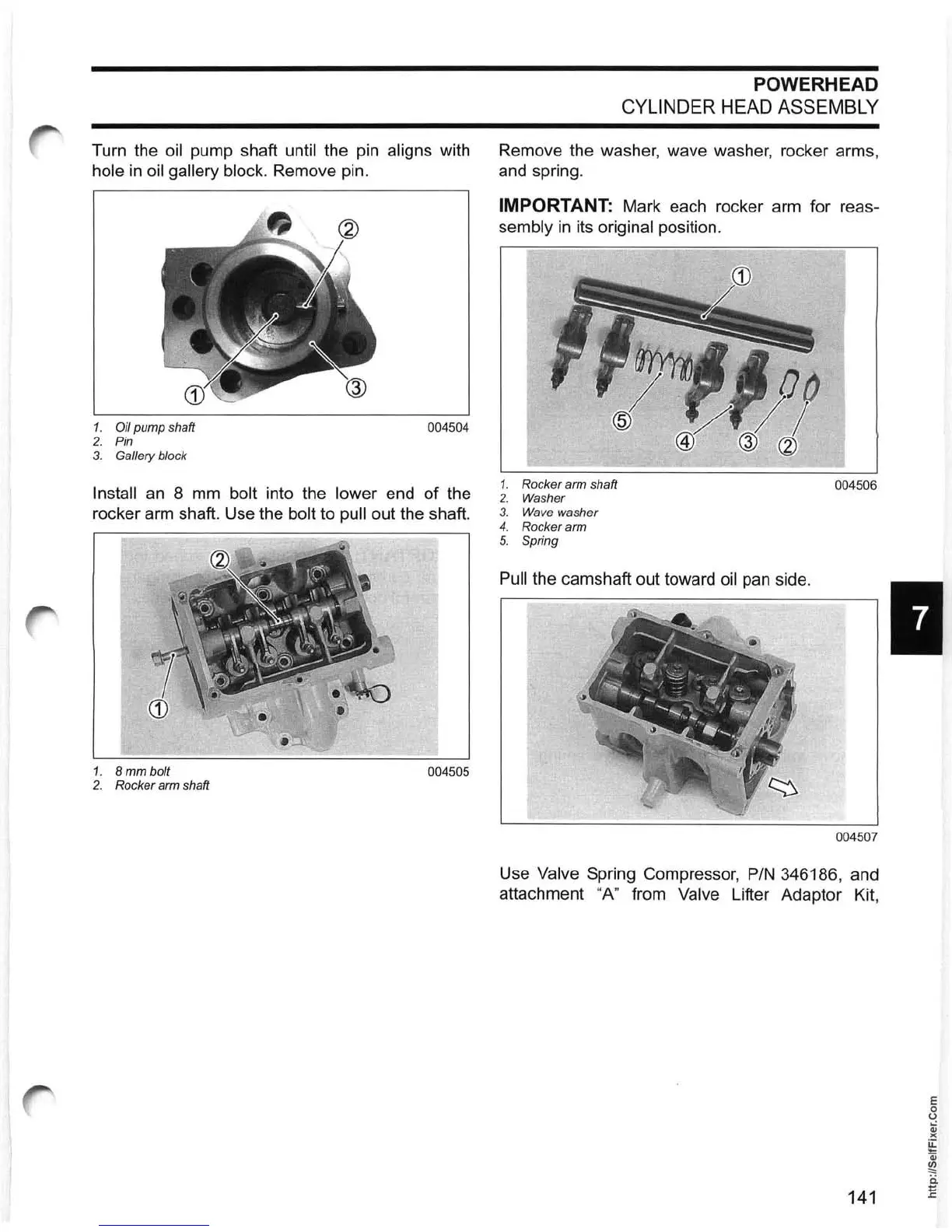

Turn the oil pump shaft until the pin aligns with
hole in oil gallery block. Remove pin.
1. Oil pump shaft 004504
2. Pin
3. Gallery block
Install an 8 mm bolt into the lower end of the
rocker arm shaft. Use the
bolt to pull out the shaft.
1. 8 mm bolt
004505
2. Rocker arm shaft
POWERHEAD
CYLINDER HEAD ASSEMBLY
Remove the washer, wave washer, rocker arms,
and spring.
IMPORTANT: Mark each rocker arm for reas-
sembly in its original position.
1. Rocker arm shaft
004506
2. Wa sher
3. Wave washer
4. Roc ker arm
5. Spring
Pull the camshaft out toward oil pan side.
004507
Use Valve Spring Compressor, PIN 346186 , and
attachment
" An from Valve Lifter Adaptor Kit ,
141
