IGNITION SYSTEM
SERVICE
CHART

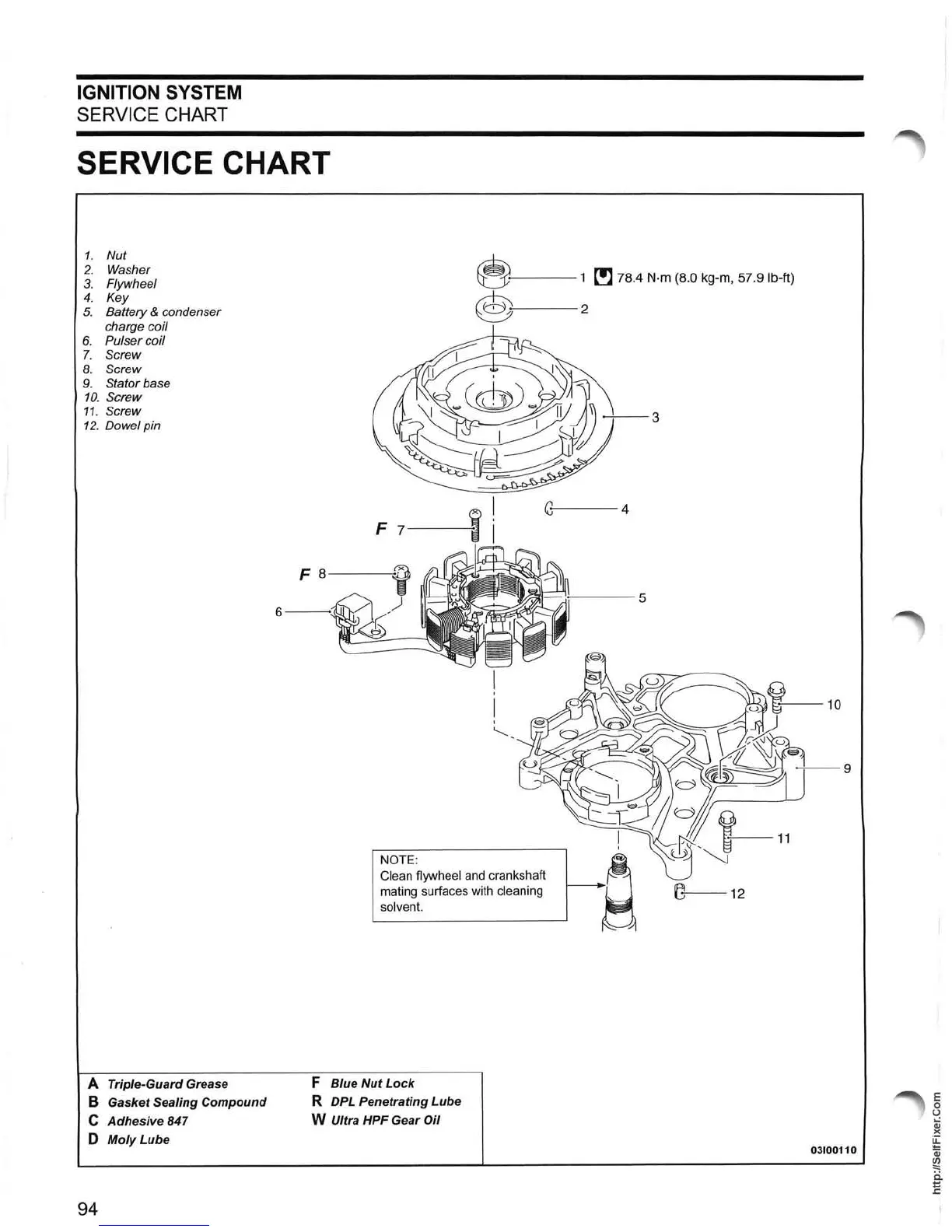

SERVICE CHART
1. Nut
2. Washer
3. Flywheel
4. Key
5. Battery
& condenser
charge coil
6. Pulser coil
7.
Screw
8. Screw
9. Stator base
10. Screw
11. Screw
12 . Dowel pin
A Triple-Guard Grease
B Gasket Sealing Compound
C Adhesive 847
o MolyLube
94
~ '----1 t!J 78.4 N·m (8.0 kg - m, 57.9 Ib-ft)
@ ---2
F8--~
6--- ' (\
NOTE:
Clean flywheel and crankshaft
mating surfaces with cleaning
solvent.
F Blue Nut Lock
R DPL Penetrating Lube
W Ultra HPF Gear Oil
""----4
:+----5
03100110
