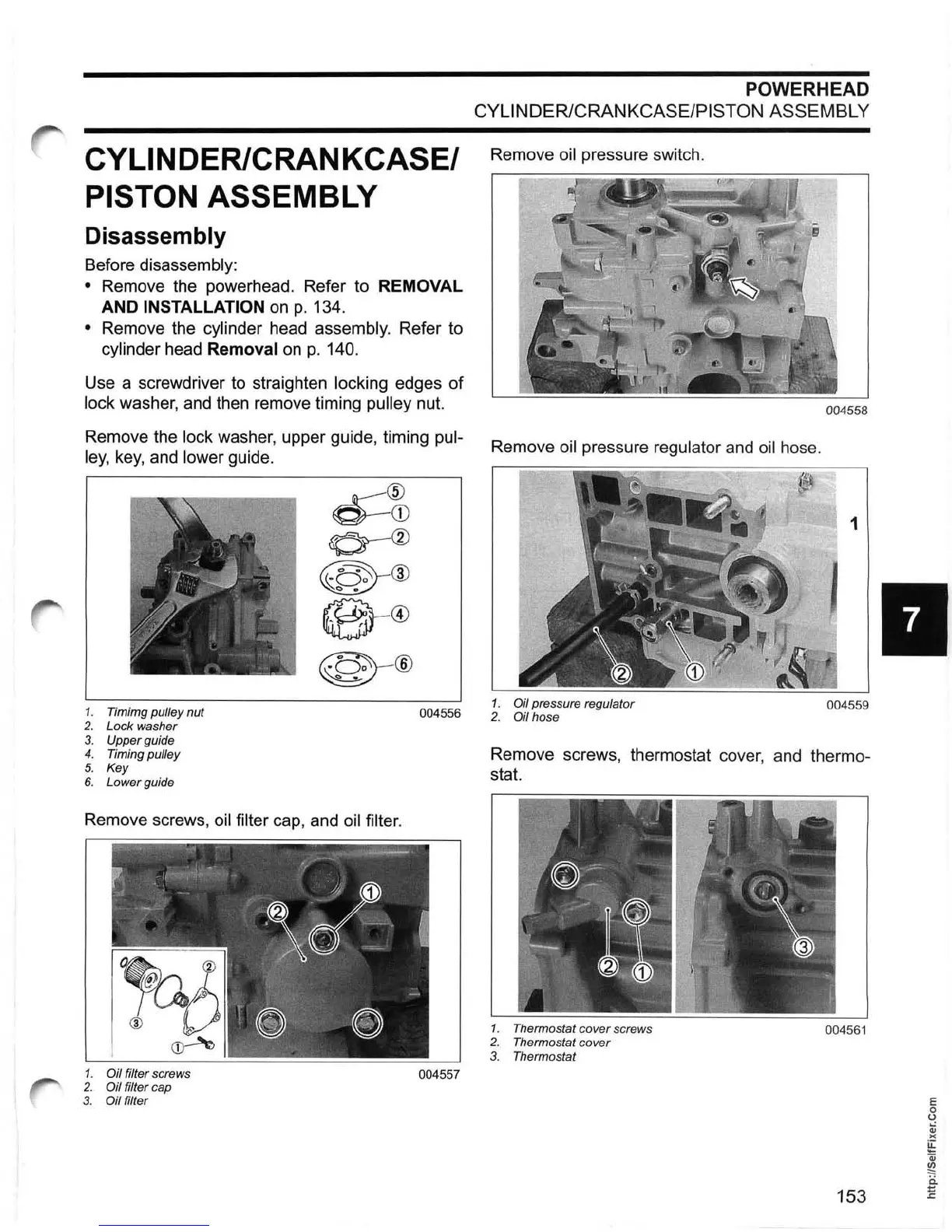

CYLINDER/CRANKCASEI
PISTON ASSEMBLY
Disassembly
Before disassembly:
•
Remove the powerhead. Refer to REMOVAL
AND INSTALLATION
on
p. 134.
• Remove the cylinder head assembly. Refer to
cylinder head Removal
on
p.
140.
Use a screwdriver to straighten locking edges of
lock washer, and then remove timing pulley nut.
Remove the
lock washer, upper guide, timing pul-
ley,
key,
and lower guide.
1. Timimg pulley nut
004556
2. Lock washer
3.
Upper guide
4. Timing pulley
5. Key
6. Lower guide
Remove screws, oil filter cap, and oil filter.
1. Oilfilter screws
004557
2.
ai/
filter cap
3.
ai/filter
POWERHEAD
CYLINDER/CRANKCASE/PISTON ASSEMBLY
Remove oil pressure switch.
004558
Remove oil pressure regulator and oil hose.
1
1. Oil pressure regulator
004559
2.
Oil hose
Remove screws, thermostat cover, and thermo-
stat.
1. Thermost
at
cover screws
004561
2. Thermostat cover
3.
Th
ermostat
153
