POWERHEAD

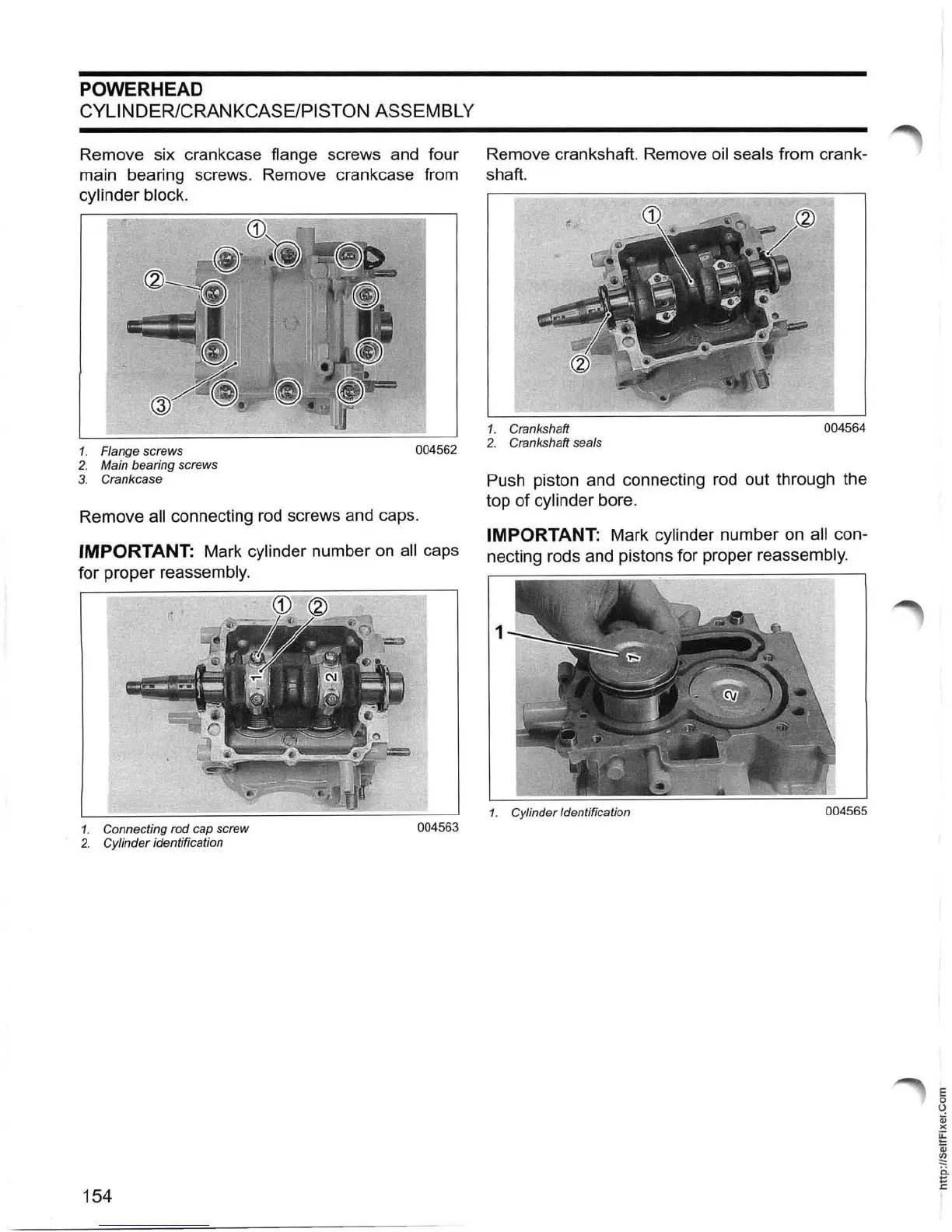

CYLINDER/CRANKCASE/PISTON ASSEMBLY
Remove six crankcase flange screws and four
main bearing screws. Remove crankcase from
cylinder block.
1. Flange screws
004562
2. Main bearing screws
3. Crankcase
Remove all connecting rod screws and caps.
IMPORTANT: Mark cylinder number on all caps
for proper
reassembly.
1. Connecting rod cap screw
004563
2. Cylinder identification
154
Remove crankshaft. Remove oil seals from crank-
shaft.
1. Crankshaft
004564
2. Crankshaft seals
Push piston and connecting rod out through the
top of
cylinder bore.
IMPORTANT: Mark cylinder number on all con-
necting rods and pistons for proper
reassembly.
1
1. Cylinder Identification
004565
