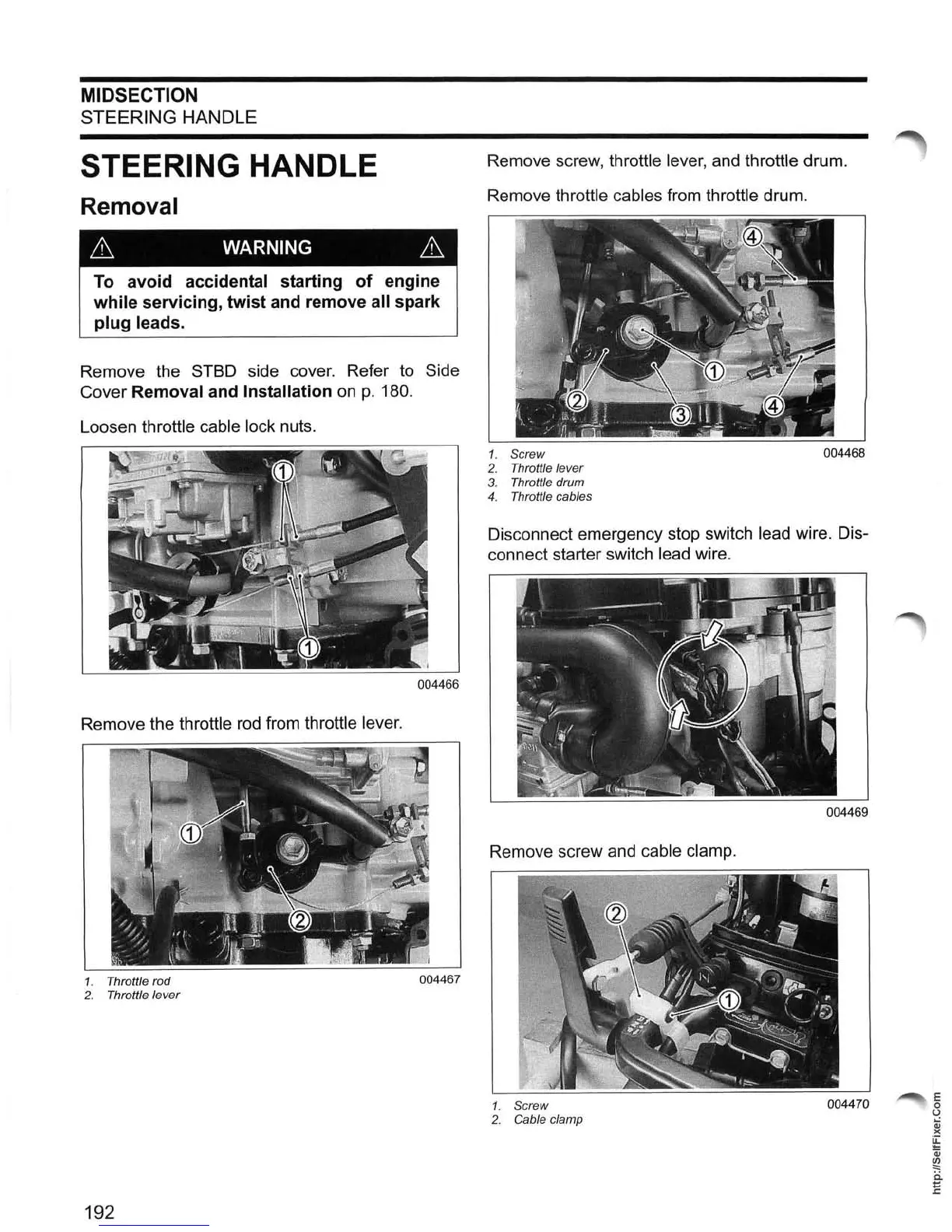

MIDSECTION
STEERING HANDLE
STEERING HANDLE
Removal
~
WARNING 6
To
avoid
accidental starting
of
engine
while
servicing,
twist
and remove all spark
plug
leads.
Remove the STBD side cover. Refer to Side
Cover Removal
and Installation
on
p.
180.
Loosen throttle cable lock nuts.
004466
Remove the throttle
rod
from throttle lever.
1.
Throttle rod
004467
2.
Throttle lever
192
Remove screw, throttle lever,
and
throttle drum.
Remove throttle
cables from throttle drum.
1. Screw
004468
2.
Throttle lever
3.
Throttle drum
4.
Throttle cables
Disconnect emergency stop switch lead wire. Dis-
connect starter switch
lead wire.
004469
Remove screw and cable clamp.
1. Screw
004470
2.
Cable clamp
To Next Page
