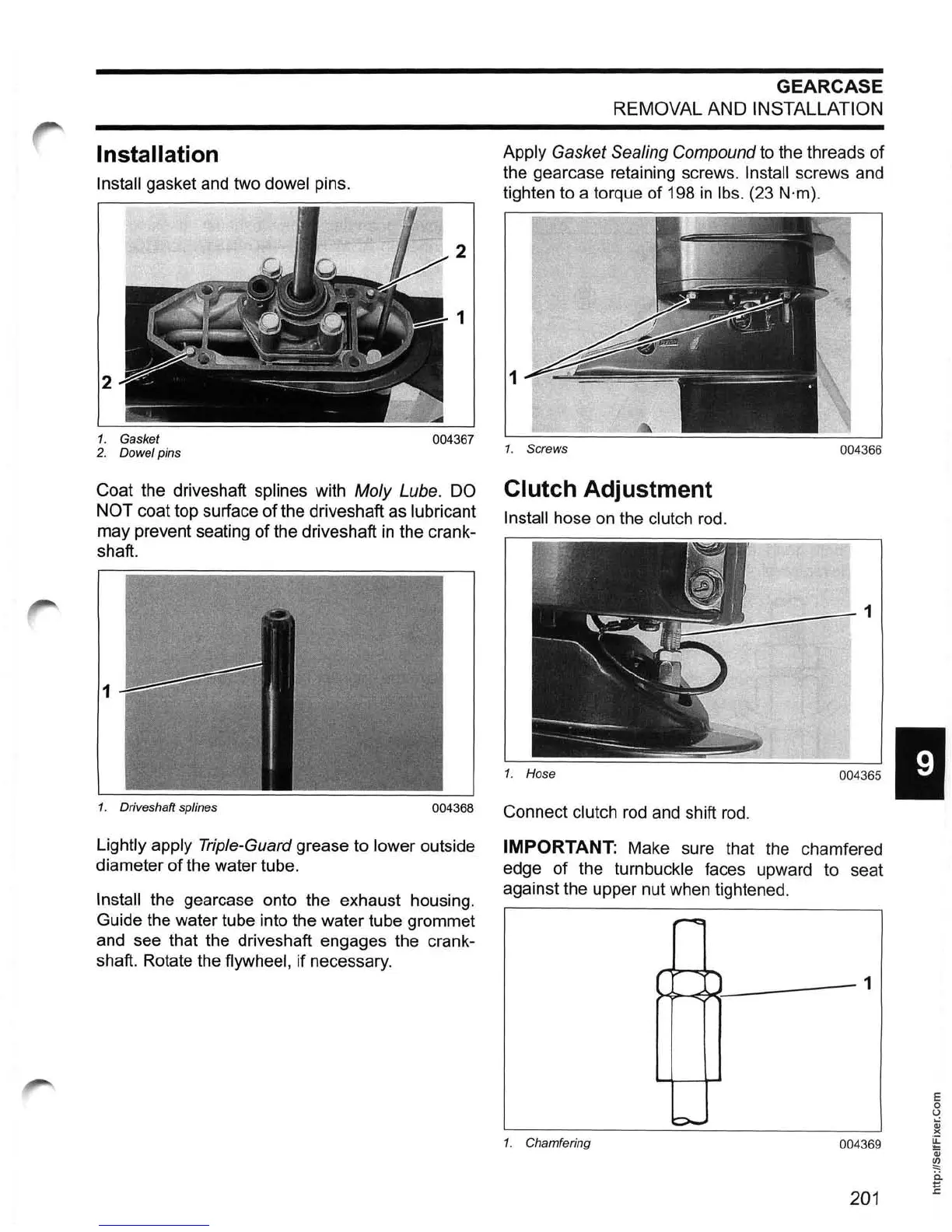

Installation
Install gasket
and
two dowel pins.
2
1. Gasket
2.
Dowel pins
2
1
004367
GEARCASE
REMOVAL AND
INSTALLATION
Apply Gasket Sealing Compound to the threads of
the gearcase retaining screws.
Install screws and
tighten to a torque of 198
in
Ibs.
(23
N·m).
1
1. Screws
004366
Coat the driveshaft splines with Moly Lube.
DO
Clutch Adjustment
NOT coat top surface of the driveshaft as lubricant Install hose
on
the clutch
rod.
may prevent seating of the driveshaft
in
the crank-
shaft.
1
1
1. Driveshaft splines
004368 Connect clutch
rod
and
shift
rod.
Lightly apply Triple-Guard grease to lower outside
diameter of the water tube.
Install the gearcase onto the exhaust housing.
Guide the water tube into the water tube grommet
and see that the driveshaft engages the crank-
shaft. Rotate the
flywheel, if necessary.
IMPORTANT: Make sure that the chamfered
edge of the
turnbuckle faces upward to seat
against the upper nut when tightened.
~
-1
I:::::>-
1. Chamfering
004369
201
