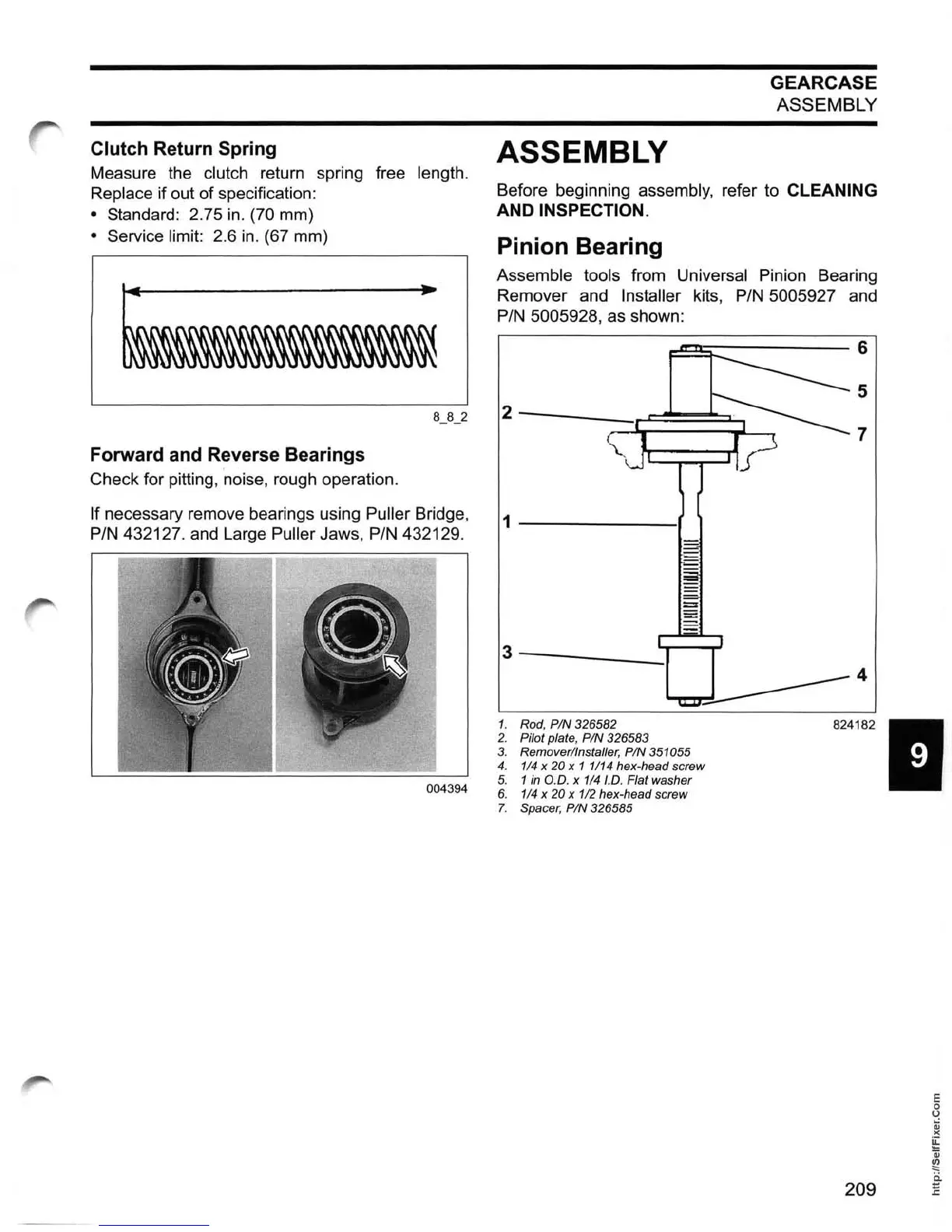

Clutch Return Spring
Measure the clutch return spring free length.
Replace
if out of specification:
• Standard: 2.75 in. (70 mm)
• Service limit: 2.6 in. (67 mm)
Forward and Reverse Bearings
Check for pitting, noise, rough operation.
If necessary remove bearings using Puller Bridge,
PIN 432127. and Large Puller Jaws, PIN 432129.
004394
ASSEMBLY
GEARCASE
ASSEMBLY
Before beginning assembly, refer to CLEANING
AND INSPECTION.
Pinion Bearing
Assemble tools from Universal Pinion Bearing
Remover and
Installer kits, PIN 5005927 and
PIN 5005928, as shown:
~~----6
5
7
1
-
~
-
-
=
-
3
1. Rod, PIN 326582
824182
2. Pilot plate, PIN 326583
3. Removerl lnstaller, PIN 351055
4. 114 x
20 x 1 1114 hex-head screw
5. 1 in 0 .0 . x 114 1.0. Flat washer
6. 114 x
20 x 112 hex-head screw
7. Spacer, PIN 326585
I
E
o
o
~
><
~
OJ
~
i:i
209 E
