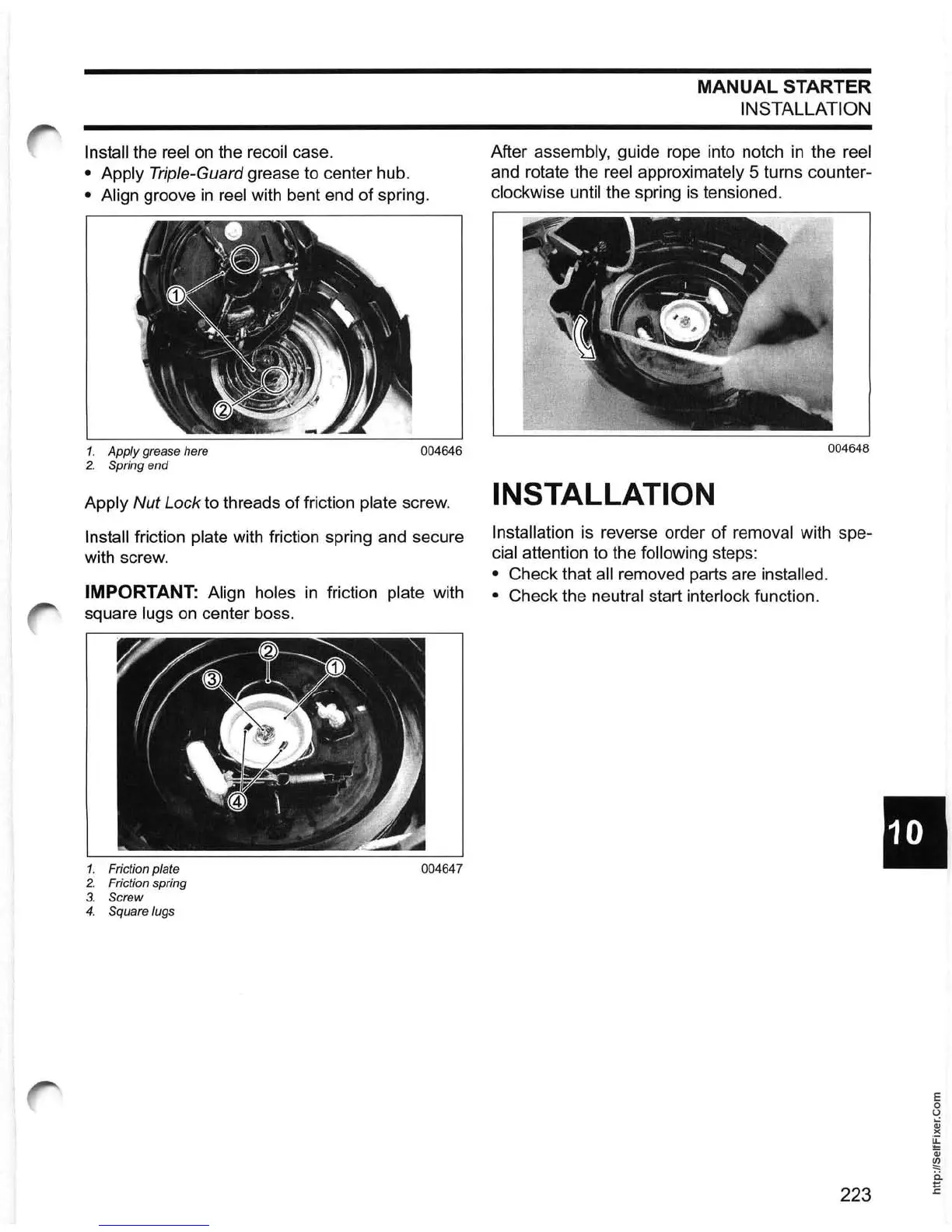

Install the reel
on
the recoil case.
• Apply Triple-Guard grease to center hub.
• Align groove
in
reel with bent end
of
spring.
1. Apply
gr
ease here
004646
2. Spring end
Apply
Nut
Lock to threads of friction plate screw.
Install friction plate with friction spring and secure
with screw.
IMPORTANT: Align holes
in
friction plate with
square
lugs
on
center boss.
1. Friction plate 004647
2. Friction spring
3. Screw
4. Square lugs
MANUAL STARTER
INSTALLATION
After assembly, guide rope into notch
in
the reel
and rotate the reel approximately 5 turns counter-
clockwise until the spring
is
tensioned.
004648
INSTALLATION
Installation
is
reverse order of removal with spe-
cial attention to the following steps:
• Check that all removed parts are installed.
•
Check the neutral start interlock function.
