POWERHEAD

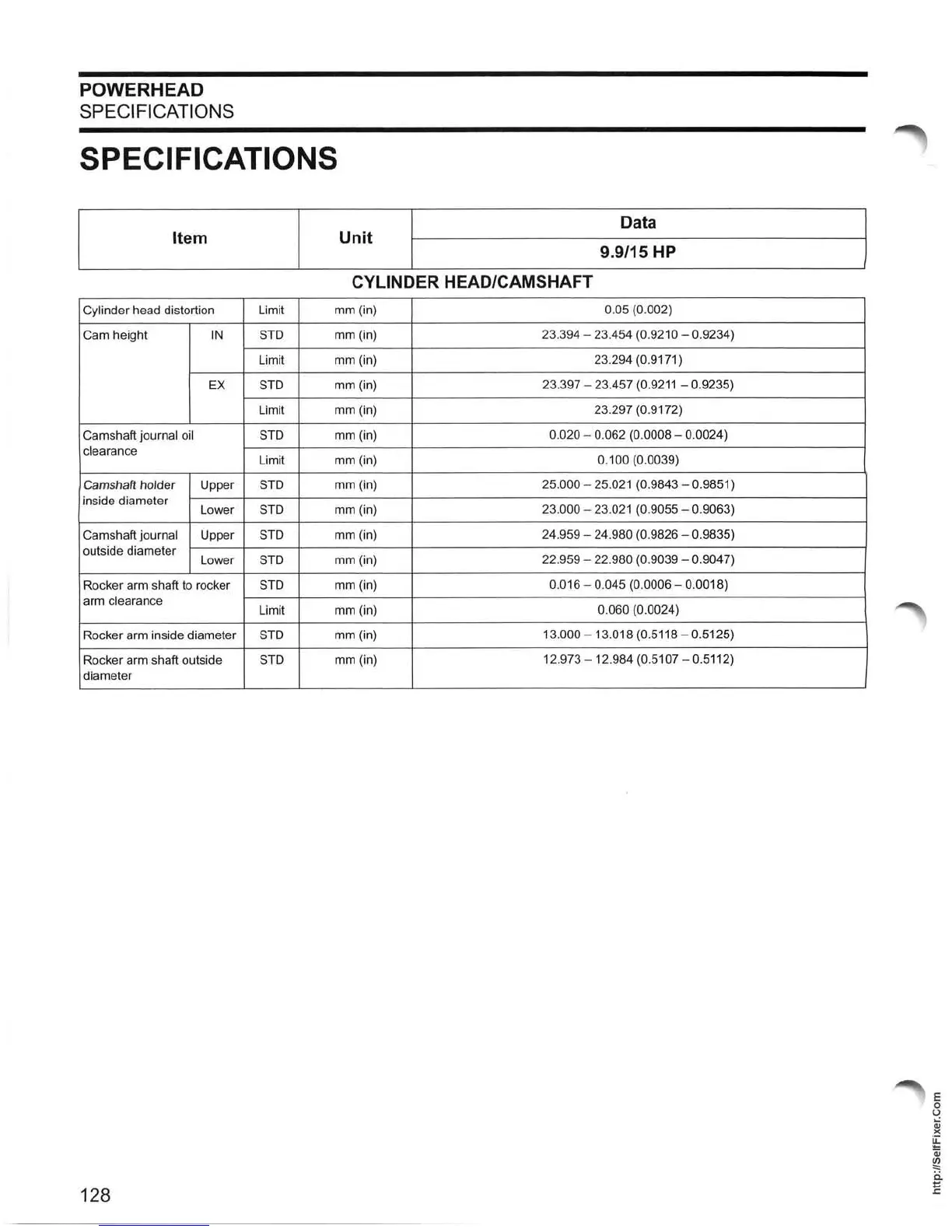

SPECIFICATIONS
SPECIFICATIONS
Data
Item Unit
9.9/15 HP
CYLINDER HEAD/CAMSHAFT
Cylinder head distortion Limit
mm(in)
0.05 (0 .002)
Cam height IN STD
mm(in)
23.394 - 23.454 (0 .9210 - 0.9234)
Limit mm (in)
23.294 (0 .9171)
EX STD
mm(in)
23.397 - 23.457 (0 .9211 - 0.9235)
Limit
mm( in) 23.297 (0 .9172)
Camshaft journal oil STD
mm( in)
0.020 - 0.062 (0.0008 - 0.0024)
clearance
Limit
mm( in)
0.100 (0 .0039)
Ca mshaft holder Upper STD
mm(in)
25.000 - 25.021 (0 .9843 - 0.9851)
inside diameter
Lower
STD mm(in)
23. 000 - 23.021 (0 .9055 - 0.9063)
Camshaft journal Upper
STD mm(in)
24.959 - 24.980 (0 .9826 - 0.9835)
outside diameter
Lower
STD mm(in)
22.959 - 22.980 (0 .9039 - 0.9047)
Rocker arm shaft to rocker STD mm( i n)
0.016 - 0.045 (0 .0006 - 0.0018)
arm clearance
Limit
mm(in)
0.060 (0.0024)
Rocker arm inside diameter STD
mm(in)
13.000 - 13. 018 (0 .5118 - 0.5125)
Rocker arm shaft outside
STD mm( in)
12.973 - 12.984 (0 .5107 - 0.5 11 2)
diameter
128
