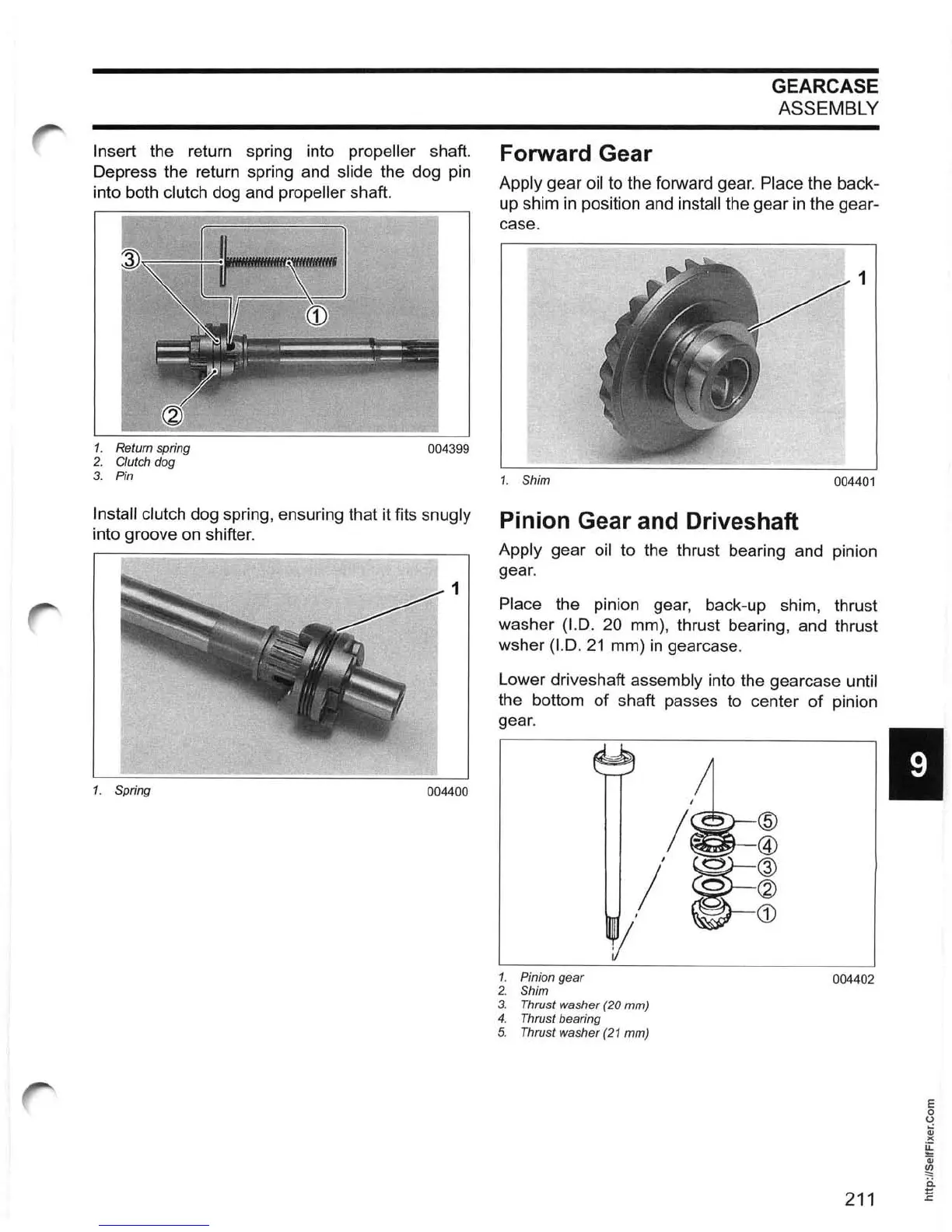

Insert the return spring into propeller shaft.
Depress the return spring and
slide the dog pin
into both clutch dog and
propeller shaft.
1. Return spring
004399
2.
Clutch dog
3.
Pin
Forward Gear
GEARCASE
ASSEMBLY
Apply gear oil to the forward gear. Place the back-
up shim
in
position and install the gear
in
the gear-
case.
1
1. Shim
004401
Install clutch dog spring, ensuring that it fits snugly Pinion Gear and Driveshaft
into groove
on
shifter. Apply gear oil to the thrust bearing and pinion
1
1.
Spring
gear.
Place the pinion gear, back-up shim, thrust
washer
(1.0.
20 mm), thrust bearing, and thrust
wsher
(1.0.
21
mm)
in
gearcase.
Lower driveshaft assembly into the gearcase
until
the bottom of shaft passes
to
center of pinion
gear.
1.
Pinion gear
004402
2.
Shim
3. Thrust washer (20 mm)
4. Thrust bearing
5. Thrust washer
(21 mm)
I
E
o
u
Qj
)(
~
Qj
~
i:i
211
~
