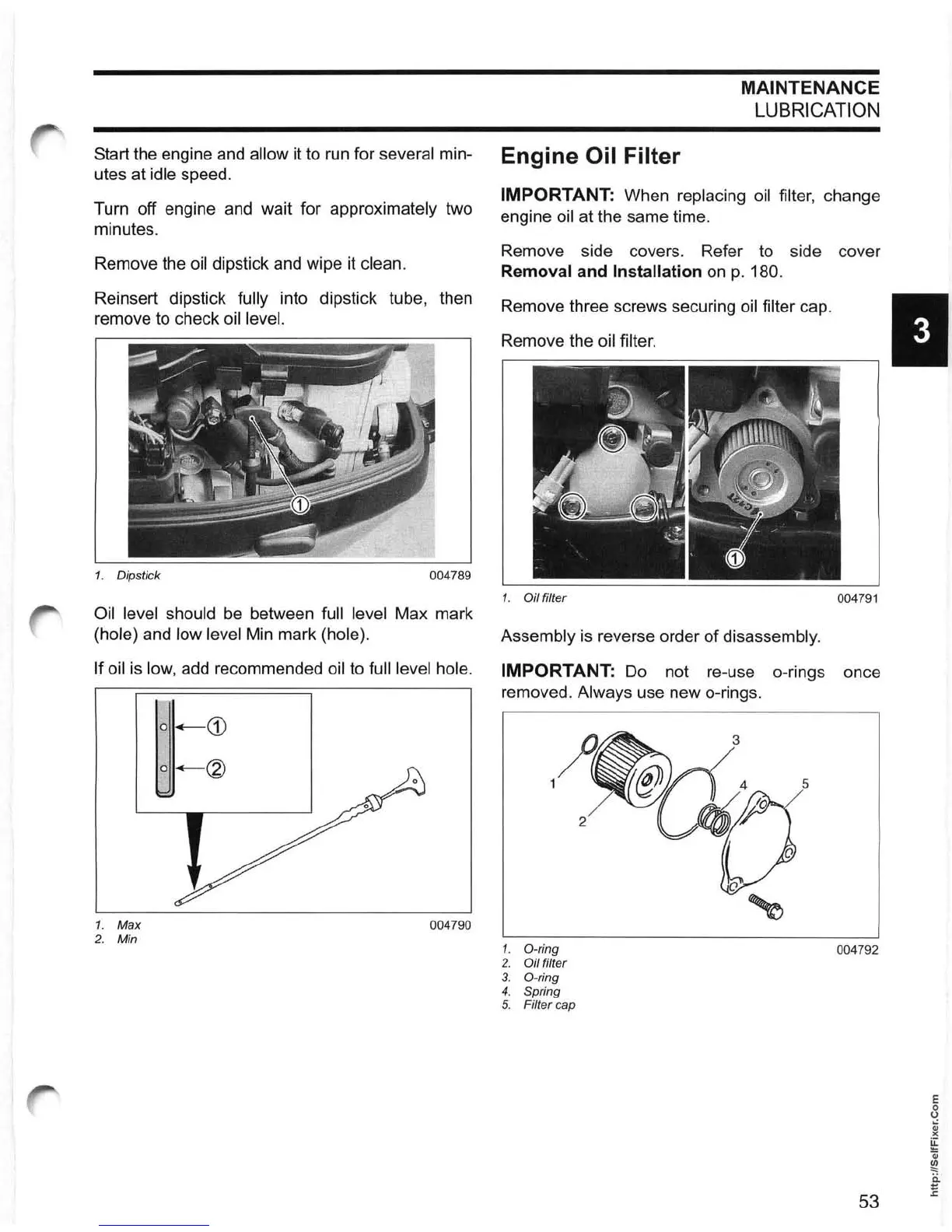

Start the engine and allow
it
to
run
for several min-
utes at idle speed.
Turn off engine and wait for
approximately two
minutes.
Remove the
oil dipstick and wipe
it
clean.
Engine Oil Filter
MAINTENANCE
LUBRICATION
IMPORTANT: When replacing oil filter, change
engine
oil at the same time.
Remove side covers. Refer to side cover
Removal and Installation
on
p.
180.
Reinsert dipstick fully into dipstick tube, then Remove three screws securing oil filter cap.
remove to check
oil level.
Remove the oil filter.
1.
Dipstick
004789
1. Oil filter
004791
Oil level should
be
between full level Max mark
(hole) and low level
Min
mark (hole). Assembly
is
reverse order of disassembly.
If oil
is
low,
add recommended oil to full level hole. IMPORTANT:
Do
not re-use a-rings once
removed.
Always use new a-rings.
5
1.
Max
004790
2.
Min
1.
a-ring
004792
2.
Oil filter
3.
a-ring
4. Spring
5. Filter cap
53
