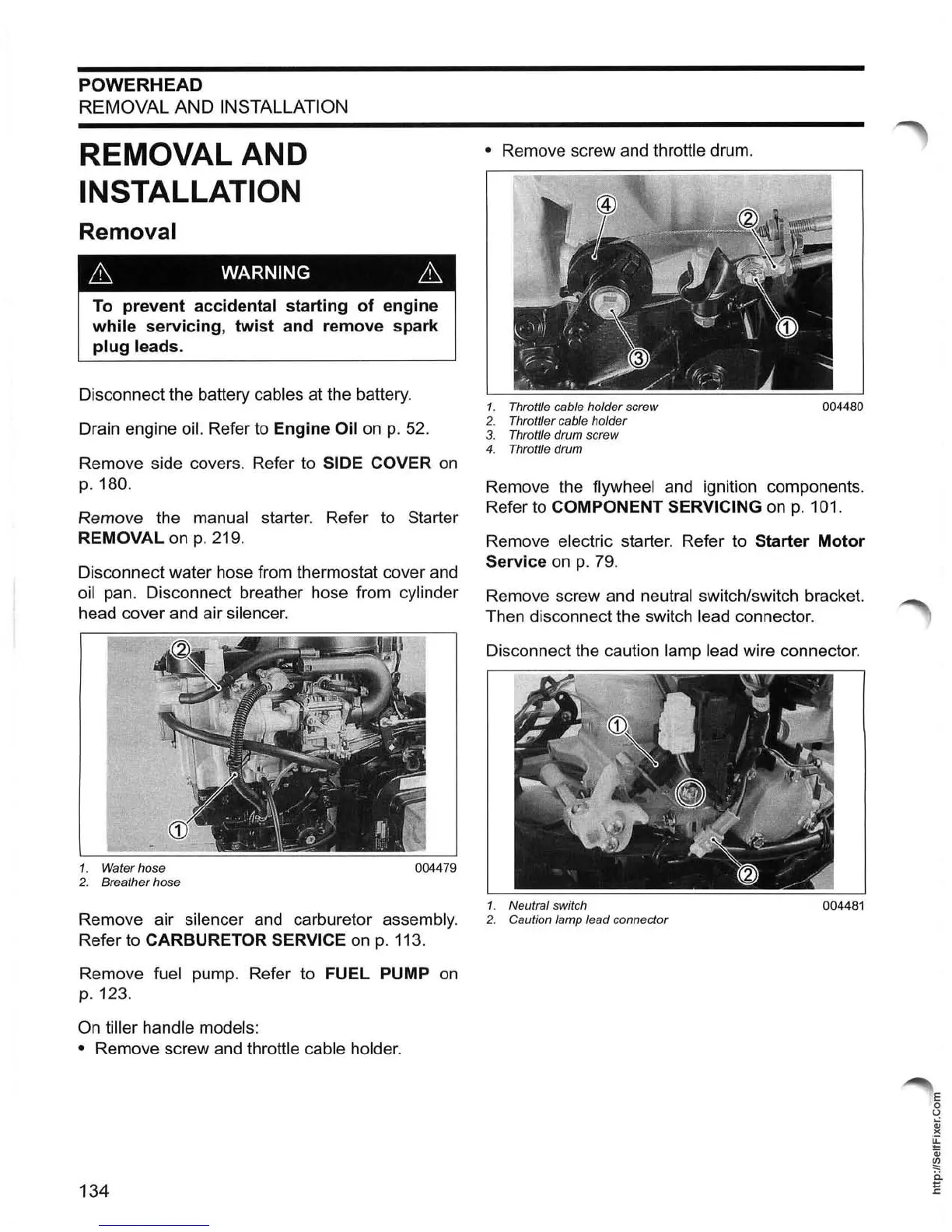

POWERHEAD
REMOVAL AND INSTALLATION
REMOVAL AND
INSTALLATION
Removal
ffi WARNING ffi
To
prevent
accidental
starting
of
engine
while
servicing,
twist
and remove
spark
plug
leads.
Disconnect the battery cables at the battery.
Drain engine
oil. Refer to Engine Oil
on
p.
52.
Remove side covers. Refer to SIDE COVER
on
p.180.
Remove the manual starter. Refer to Starter
REMOVAL
on
p.
219.
Disconnect water hose from thermostat cover and
oil pan. Disconnect breather hose from cylinder
head cover and air silencer.
1. Water hose
004479
2.
Breather hose
• Remove screw and throttle drum.
1.
Throttle cable holder screw
004480
2.
Throttler cable holder
3.
Throttle drum screw
4.
Throttle drum
Remove the flywheel and ignition components.
Refer to
COMPONENT SERVICING
on
p.
101.
Remove electric starter. Refer to Starter
Motor
Service
on
p.
79.
Remove screw and
neutral switch/switch bracket.
Then disconnect the switch
lead connector.
Disconnect the caution
lamp lead wire connector.
1.
Neutral switch
004481
Remove air silencer and carburetor assembly.
2.
Caution lamp lead connector
Refer to CARBURETOR SERVICE
on
p.
113.
Remove fuel pump. Refer to FUEL PUMP
on
p.123
.
On tiller handle models:
•
Remove screw and throttle cable holder.
134
