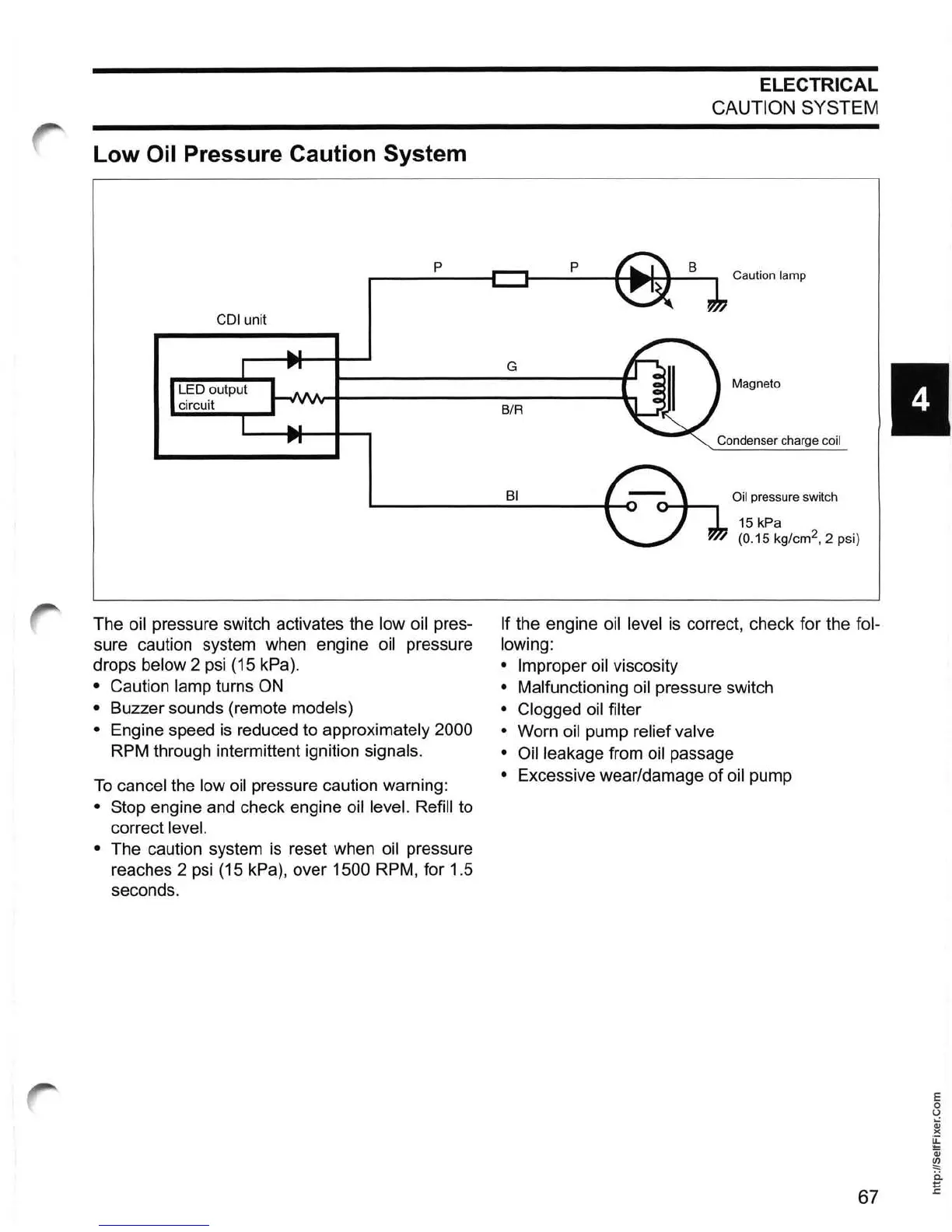

Low Oil Pressure Caution System
P
CDI unit
The oil pressure switch activates the low oil pres-
sure caution system when engine
oil pressure
drops
below 2
psi
(15 kPa).
•
Caution lamp turns
ON
• Buzzer sounds (remote models)
• Engine speed is reduced to approximately 2000
RPM
through intermittent ignition signals.
To
cancel the low oil pressure caution warning:
• Stop engine and check engine oil level. Refill to
correct
level.
•
The caution system is reset when oil pressure
reaches 2
psi
(15 kPa), over 1500 RPM, for 1.5
seconds.
ELECTRICAL
CAUTION SYSTEM
P
Caution lamp
G
Magneto
BIR
Condenser charge coil
BI
Oil pressure switch
15 kPa
(0
.15 kg/cm
2
,
2 psi)
If the engine oil level
is
correct, check for the fol-
lowing:
• Improper
oil viscosity
• Malfunctioning oil pressure switch
• Clogged oil filter
•
Worn oil pump relief valve
• Oil leakage
from oil passage
• Excessive wear/damage of oil pump
