IGNITION SYSTEM
IGNITION TESTS

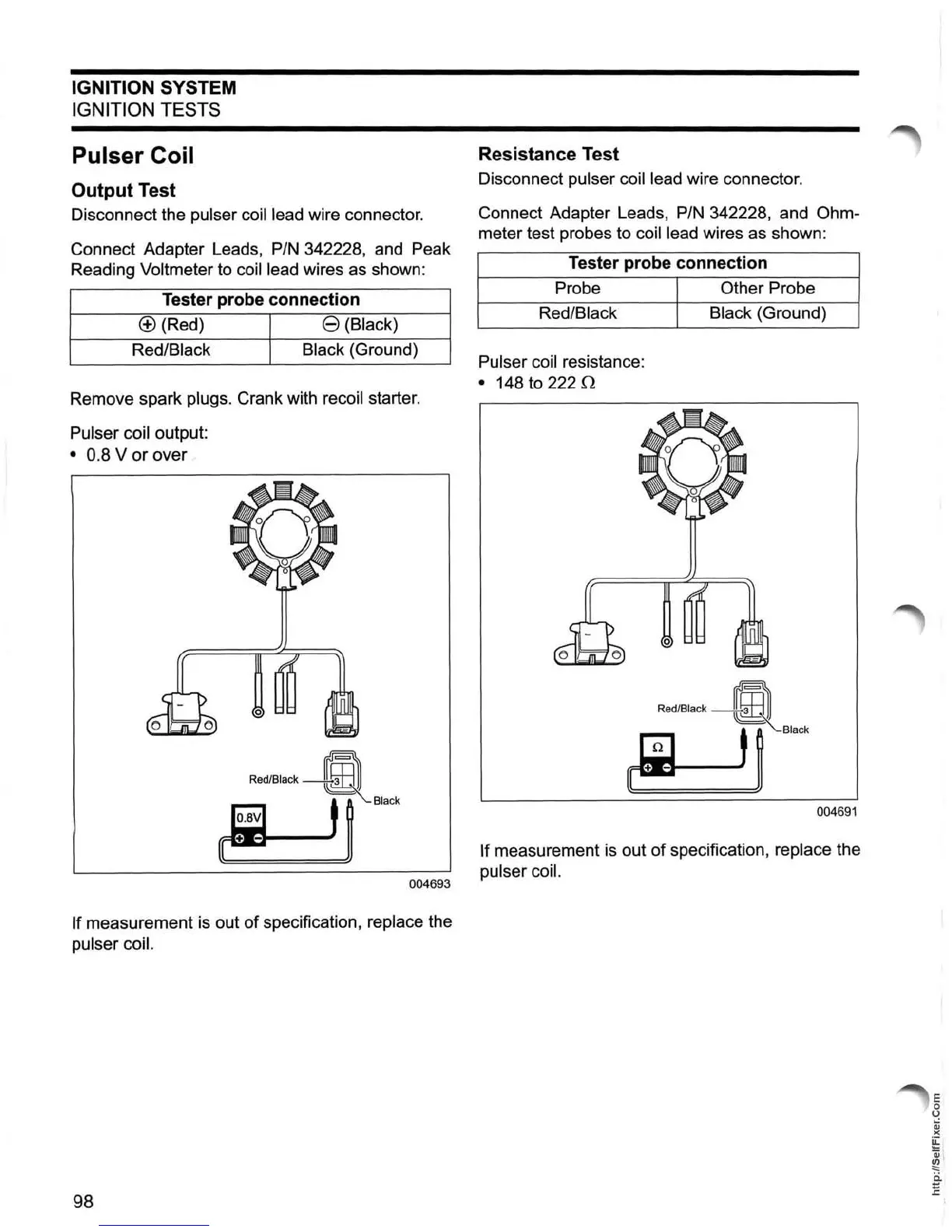

Pulser Coil
Output Test
Disconnect the pulser coil lead wire connector.
Connect Adapter Leads,
PIN 342228, and Peak
Reading
Voltmeter to coil lead wires as shown:
Tester probe connection
<±> (Red) 8 (Black)
Red/Black
Black
(Ground)
Remove spark
plugs. Crank with recoil starter.
Pulser coil output:
• 0.8 V or over .
Red/Black m
~ 1fB.~
004693
If measurement is out of specification, replace the
pulser coil.
98
Resistance Test
Disconnect pulser coil lead wire connector.
Connect Adapter Leads,
PIN 342228, and Ohm-
meter test probes to coil lead wires as shown:
Tester probe connection
Probe Other Probe
Red/Black Black (Ground)
Pulser coil resistance:
• 148 to 222 n
Red/Black m
J!l t f
B
''''
004691
If measurement is out of specification, replace the
pulser coil.
