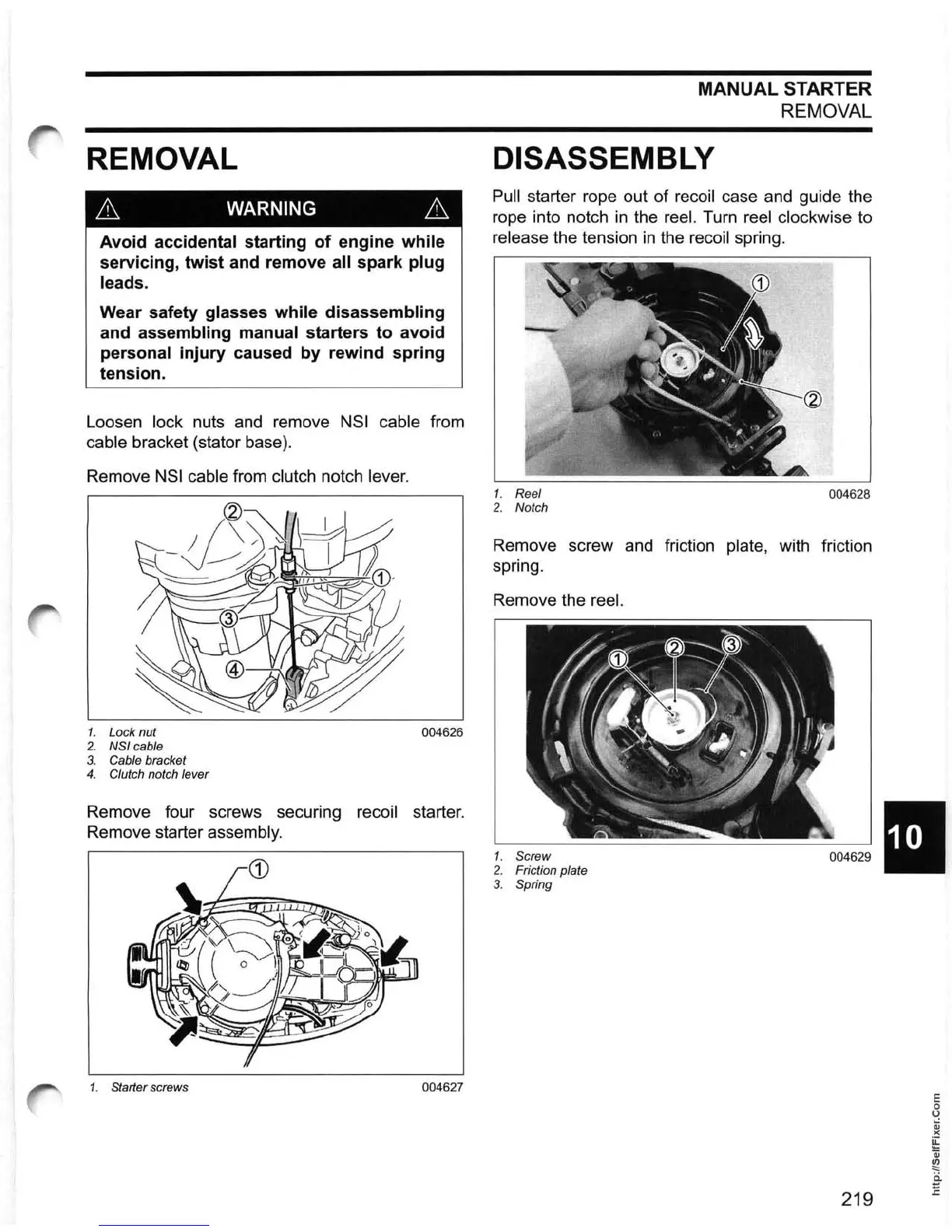

REMOVAL
& WARNING &
Avoid accidental starting of engine while
servicing, twist and remove
all spark plug
leads.
Wear safety glasses while disassembling
and assembling manual starters to avoid
personal injury caused by rewind spring
tension.
Loosen lock nuts and remove NSI cable from
cable bracket (stator base).
Remove NSI cable from clutch notch lever.
1. Lock nut 004626
2. NSI cable
3. Cable bracket
4. Clutch notch lever
Remove four screws securing recoil starter.
Remove starter assembly.
1. Starter screws 004627
MANUAL STARTER
REMOVAL
DISASSEMBLY
Pull starter rope out of recoil case and guide the
rope into notch
in the reel. Turn reel clockwise to
release the tension in the recoil spring.
1. Reel
004628
2. Notch
Remove screw and friction plate, with friction
spring.
Remove the
reel.
~1 . --SC-ffi-W-------------------------- -- 00 - 4 - 62 ~ 9 ~
2. Friction plate _
3. Spring
219
