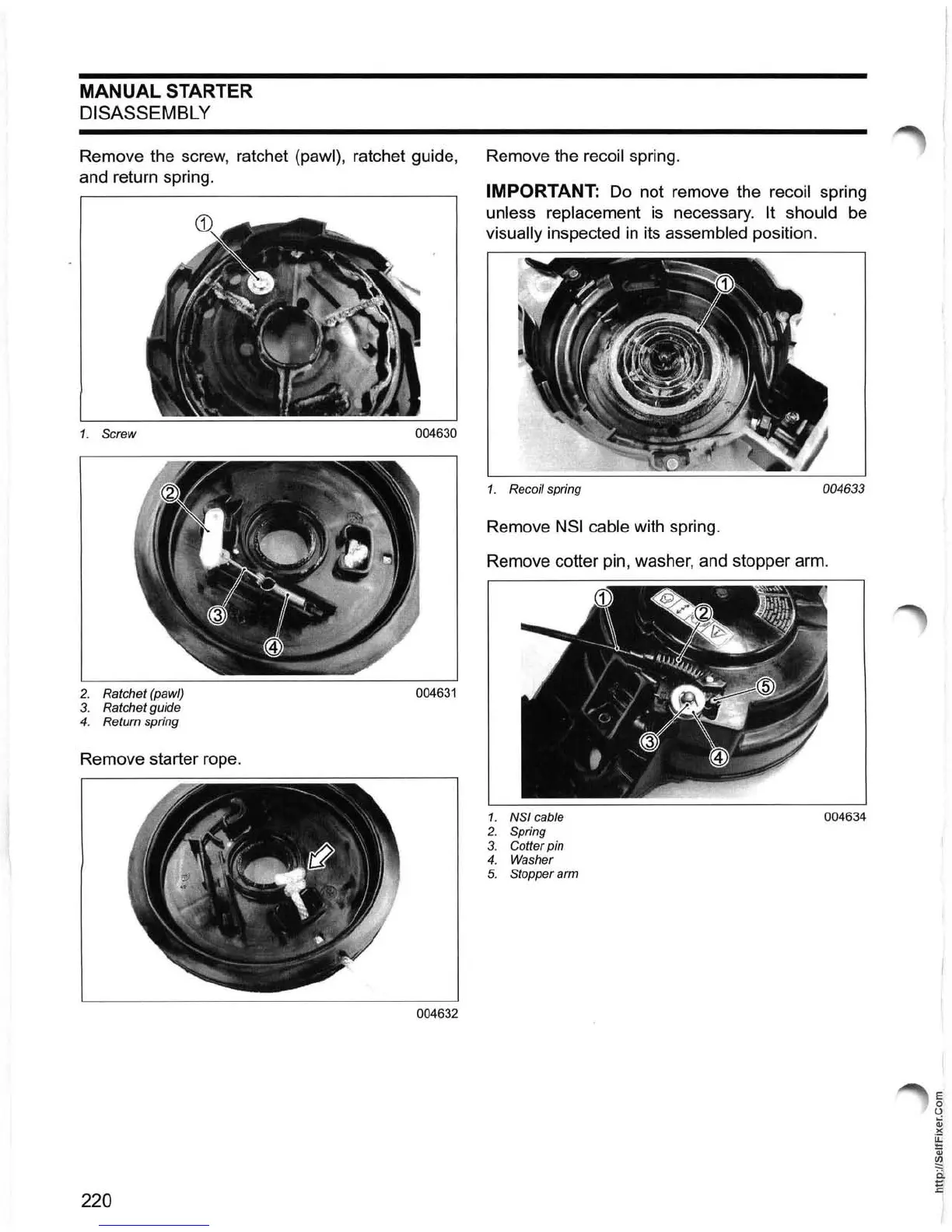

MANUAL STARTER
DISASSEMBLY
Remove the screw, ratchet (pawl), ratchet guide,
and return spring.
1. Screw
004630
2. Ratchet (pawl)
004631
3. Ratchet guide
4. Return spring
Remove starter rope.
004632
220
Remove the recoil spring.
IMPORTANT: Do not remove the recoil spring
unless replacement is necessary. It should be
visually inspected in its assembled position.
1. Recoil spring
004633
Remove NSI cable with spring .
Remove cotter pin , washer, and stopper arm .
1. NSI cable
004634
2. Spring
3. Cotter pin
4. Washer
5. Stopper arm
