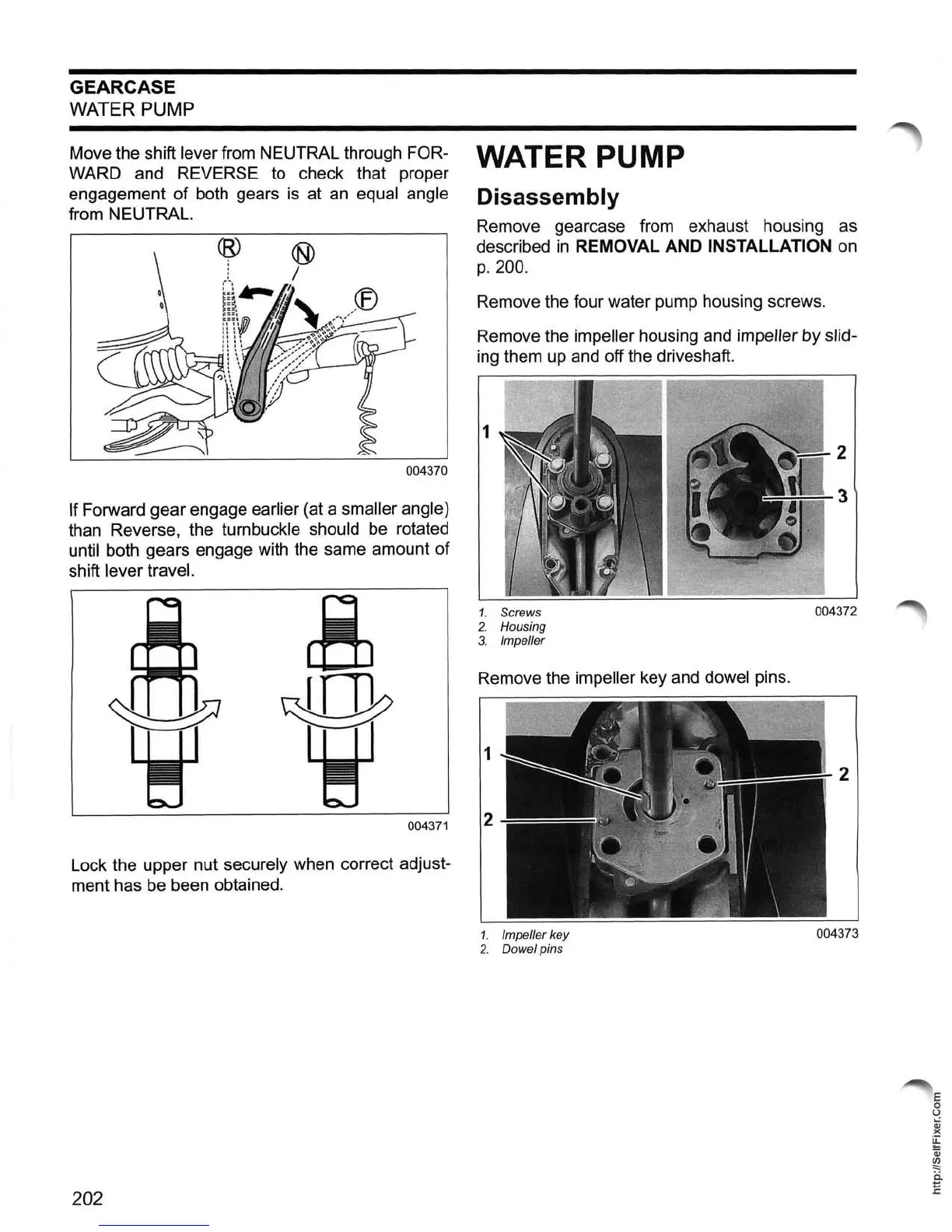

GEARCASE
WATER PUMP
Move the shift lever from NEUTRAL through FOR-
WAT
E R P U M P
WARD and REVERSE to check that proper
engagement of both gears
is
at
an
equal angle Disassembly
from NEUTRAL.
004370
If Forward gear engage earlier (at a smaller angle)
than Reverse, the turnbuckle should
be
rotated
until both gears engage with the same amount of
shift
lever travel.
004371
Lock the upper nut securely when correct adjust-
ment has be been obtained.
202
Remove gearcase from exhaust housing as
described
in
REMOVAL AND INSTALLATION on
p.200
.
Remove the four water pump housing screws.
Remove the
impeller housing and impeller by slid-
ing them
up
and off the drives haft.
1
2
3
1.
Screws 004372
2. Housing
3. Impeller
Remove the impeller key and dowel pins.
1
2
2
1. Impeller key
004373
2. Dowel pins
