IMPORTANT: Rotate the crankshaft
in
the nor-
mal running direction only (clockwise) to prevent
water pump
impeller damage.
PUNCH mark
TDC
cylinder number
1 No. 1
cylinder
2
No.2
cylinder

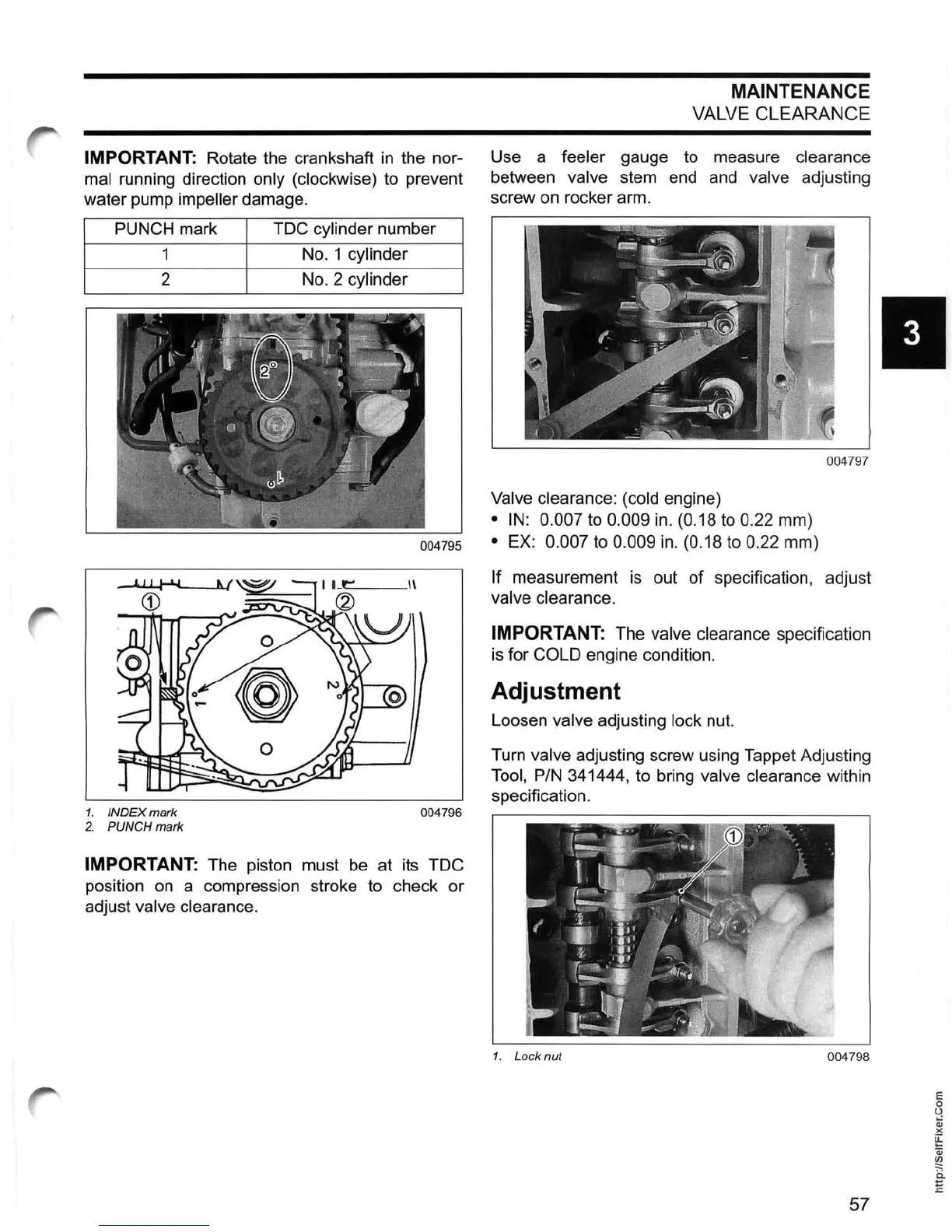

MAINTENANCE
VALVE CLEARANCE
Use a feeler gauge to measure clearance
between valve stem end and valve adjusting
screw
on
rocker arm.
004797
Valve clearance: (cold engine)
•
IN:
0.007 to 0.009
in
.
(0
.
18
to 0.22 mm)
004795 • EX: 0.007 to 0.009
in.
(0.18 to 0.22 mm)
~-_\\
1. INDEX mark 004796
2. PUNCH mark
IMPORTANT: The piston must
be
at its TDC
position
on
a compression stroke to check or
adjust
valve clearance.
If measurement
is
out of specification, adjust
valve clearance.
IMPORTANT: The valve clearance specification
is
for COLD engine condition.
Adjustment
Loosen valve adjusting lock nut.
Turn
valve adjusting screw using Tappet Adjusting
Tool,
PIN
341444, to bring valve clearance within
specification.
1. Lock nut
0047
98
57
•
