MANUAL STARTER

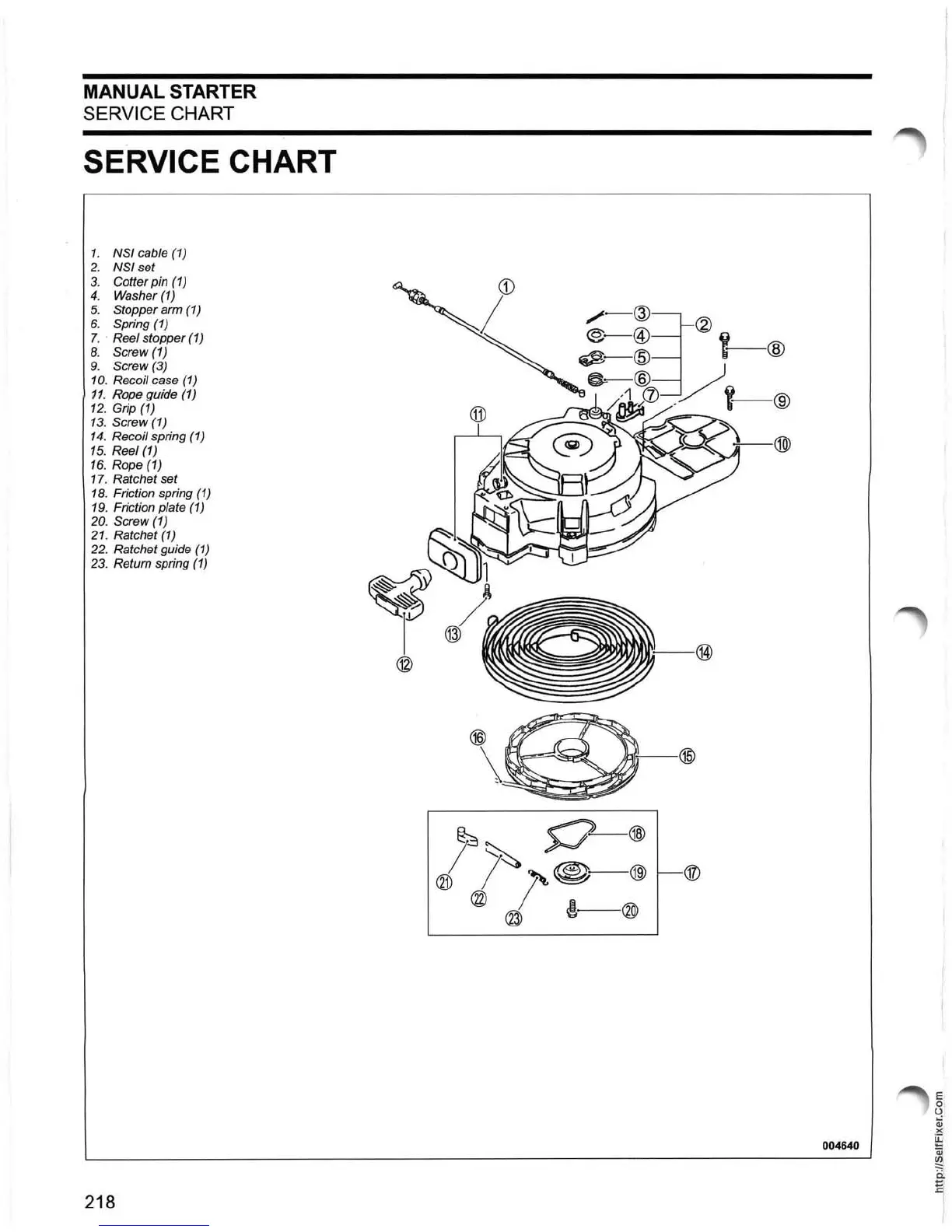

SERVICE CHART
SERVICE CHART
1. NSI cable (1)
2. NSI set
3. Cotter pin
(1)
4. Washer (1)
5. Stopper arm (1)
6. Spring (1)
7 . . Reel stopper (1)
8. Screw (1)
9. Screw (3)
10. Recoil case (1)
11. Rope guide (1)
12. Grip (1)
13 . Screw (1)
14 . Recoil spring (1)
15 . Reel (1)
16 . Rope (1)
17. Ratchet set
18 . Friction spring (1)
19 . Friction plate (1)
20. Screw (1)
21 . Ratchet (1)
22. Ratchet guide (1)
23. Return spring (1)
218
004640
