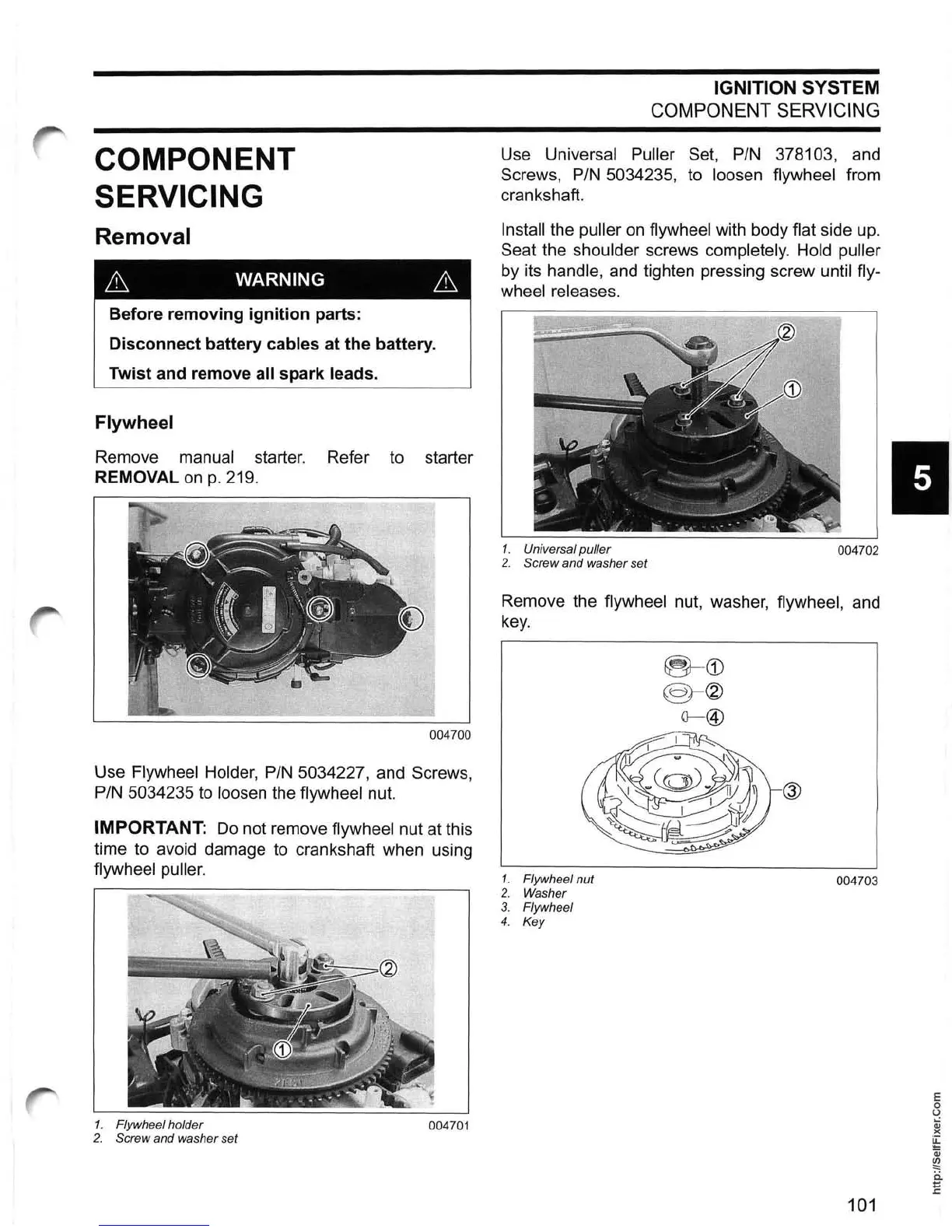

COMPONENT
SERVICING
Removal
ill
WARNING
ill
Before removing
ignition
parts:
Disconnect
battery cables
at
the
battery.
Twist and remove
all
spark
leads.
Flywheel
Remove manual starter. Refer to starter
REMOVAL
on
p.
219.
004700
Use Flywheel Holder,
PIN
5034227, and Screws,
PIN 5034235
to
loosen the flywheel nut.
IMPORTANT:
Do
not remove flywheel nut at this
time to avoid damage to crankshaft when using
flywheel
puller.
1.
Flywheel holder
004701
2. Screw and washer set
IGNITION SYSTEM
COMPONENT SERVICING
Use Universal Puller Set,
PIN
378103, and
Screws,
PIN
5034235, to loosen flywheel from
crankshaft.
Install the puller
on
flywheel with body flat side up.
Seat the shoulder screws completely. Hold
puller
by its handle, and tighten pressing screw until fly-
wheel releases.
1.
Universal puller
004702
2.
Screw and washer set
Remove the flywheel nut, washer, flywheel, and
key.
1.
Flywheel nut
004703
2.
Washer
3.
Flywheel
4. Key
101
