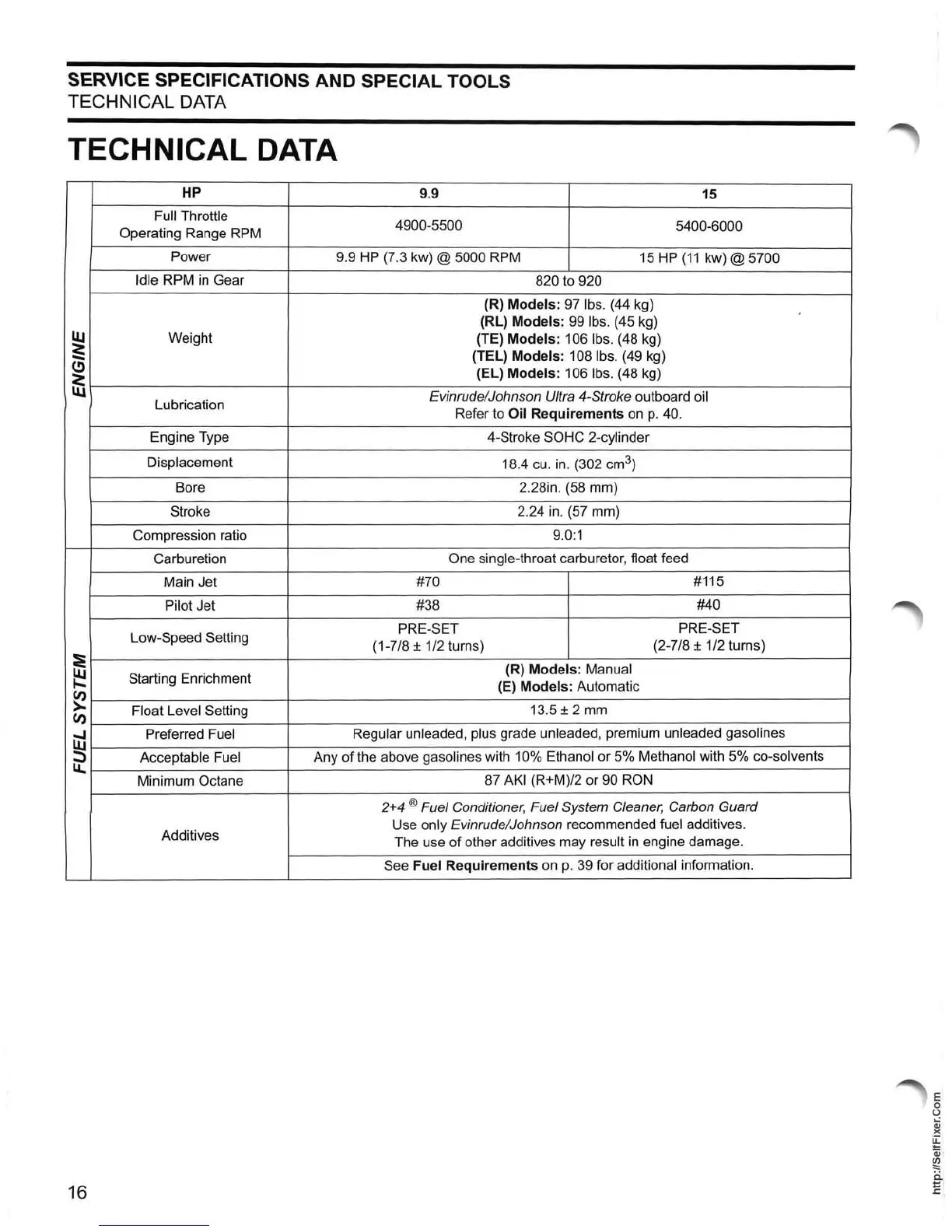

SERVICE SPECIFICATIONS AND SPECIAL TOOLS
TECHNICAL DATA
TECHNICAL DATA
HP
9.9
15
Full Throttle
4900-5500
5400-6000
Operating Range RPM
Power
9.9 HP
(7
.3 kw) @ 5000 RPM
15 HP
(11
kw) @ 5700
Idle
RPM
in
Gear
820 to 920
(R) Models: 97 Ibs. (44 kg)
(Rl)
Models: 99 Ibs. (45 kg)
ILl
Weight
(TE)
Models: 1061bs. (48 kg)
~
(TEL)
Models
: 1081bs. (49 kg)
Cl
(El)
Models: 106 Ibs. (48 kg)
Gl
Evinrude/Johnson Ultra 4-Stroke outboard oil
Lubrication
Refer to
Oil
Requirements
on
p. 40.
Engine Type 4-Stroke SOHC 2-cylinder
Displacement
18.4 cu.
in
. (302 cm
3
)
Bore 2.28in. (58 mm)
Stroke
2.24
in
. (57 mm)
Compression ratio
9.0:1
Carburetion
One single-throat carburetor, float feed
Main Jet
#70
#115
Pilot Jet
#38
#40
Low-Speed Setting
PRE-SET
PRE-SET
(1-7/8 ± 1/2 turns)
(2-7/8 ±
1/2 turns)
:::E
(R) Models: Manual
~
Starting Enrichment
(E)
Models: Automatic
~
Float Level Setting
13.5 ± 2 mm
CI)
m
Preferred Fuel
Regular unleaded, plus
grade unleaded, premium unleaded gasolines
~
Acceptable Fuel
Any
of
the above gasolines with 10% Ethanol or
5%
Methanol with 5% co-solvents
u..
Minimum Octane
87
AKI (R+M)/2 or 90 RON
2+4 ® Fuel Conditioner, Fuel System Cleaner, Carbon Guard
Additives
Use
only Evinrude/Johnson recommended fuel additives.
The use of other additives may
result
in
engine damage.
See
Fuel Requirements
on
p. 39 for additional information.
16
E
o
U
Qj
)(
~
0;
'
~
ii
E
