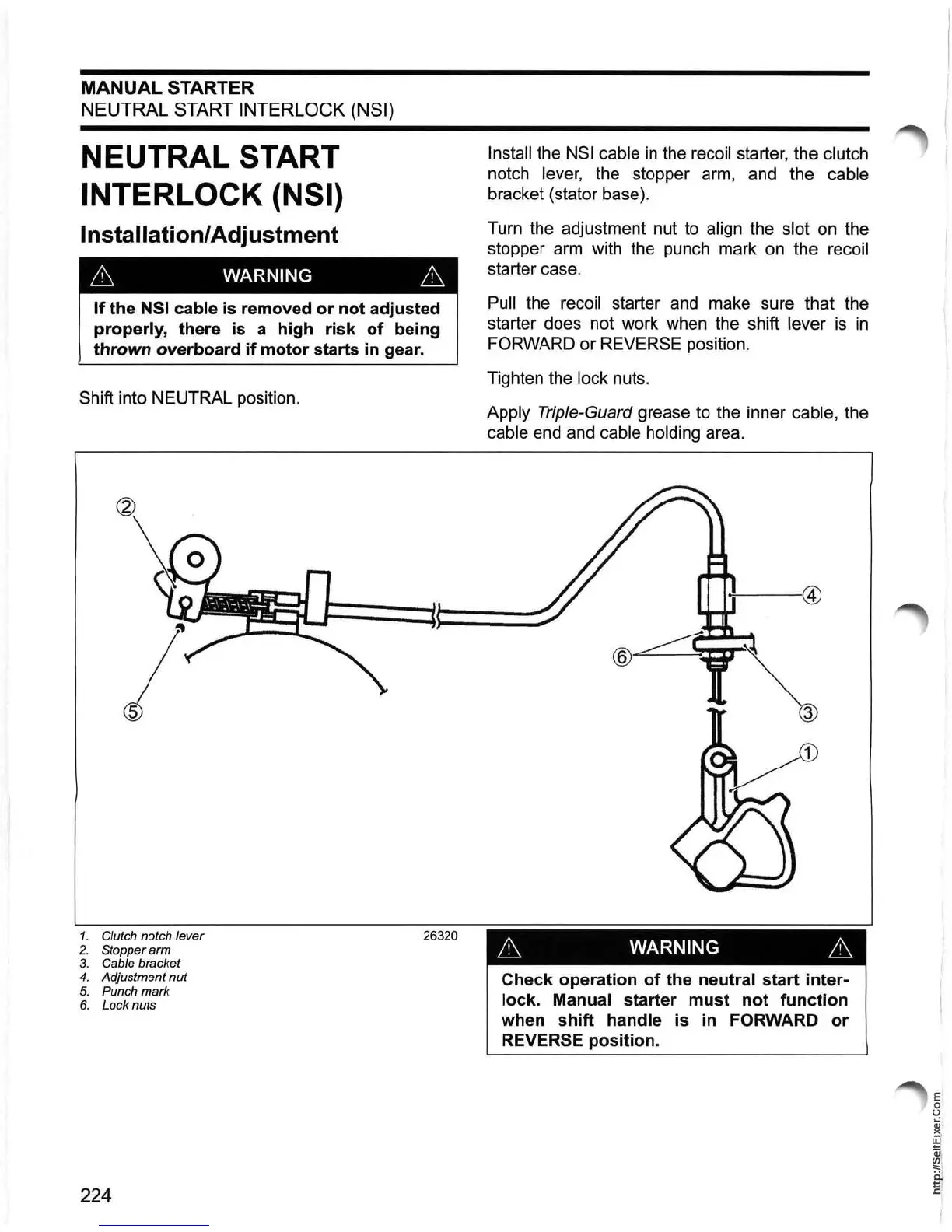

MANUAL
STARTER
NEUTRAL
START
INTERLOCK
(NSI)
NEUTRAL START
INTERLOCK (NSI)
Installation/Adjustment
ill
WARNING
ill
If
the
NSI cable is removed
or
not
adjusted
properly, there
is
a high
risk
of
being
thrown
overboard
if
motor
starts in gear.
Shift into NEUTRAL position.
1. Clutch notch lever 26320
2. Stopper arm
3.
Cable bracket
4. Adjustment
nut
5. Punch mark
6. Lock nuts
224
Install the
NSI
cable
in
the recoil starter, the clutch
notch
lever, the stopper arm, and the cable
bracket (stator base).
Turn the adjustment nut to
align the slot on the
stopper arm with the punch mark
on
the recoil
starter case.
Pull the recoil starter and make sure that the
starter does not work when the shift
lever
is
in
FORWARD or REVERSE position.
Tighten the
lock nuts.
Apply Triple-Guard grease to the inner cable, the
cable end and cable holding area.
ill
WARNING
ill
Check operation
of
the neutral start inter-
lock
. Manual starter
must
not
function
when
shift
handle
is
in FORWARD
or
REVERSE position.
