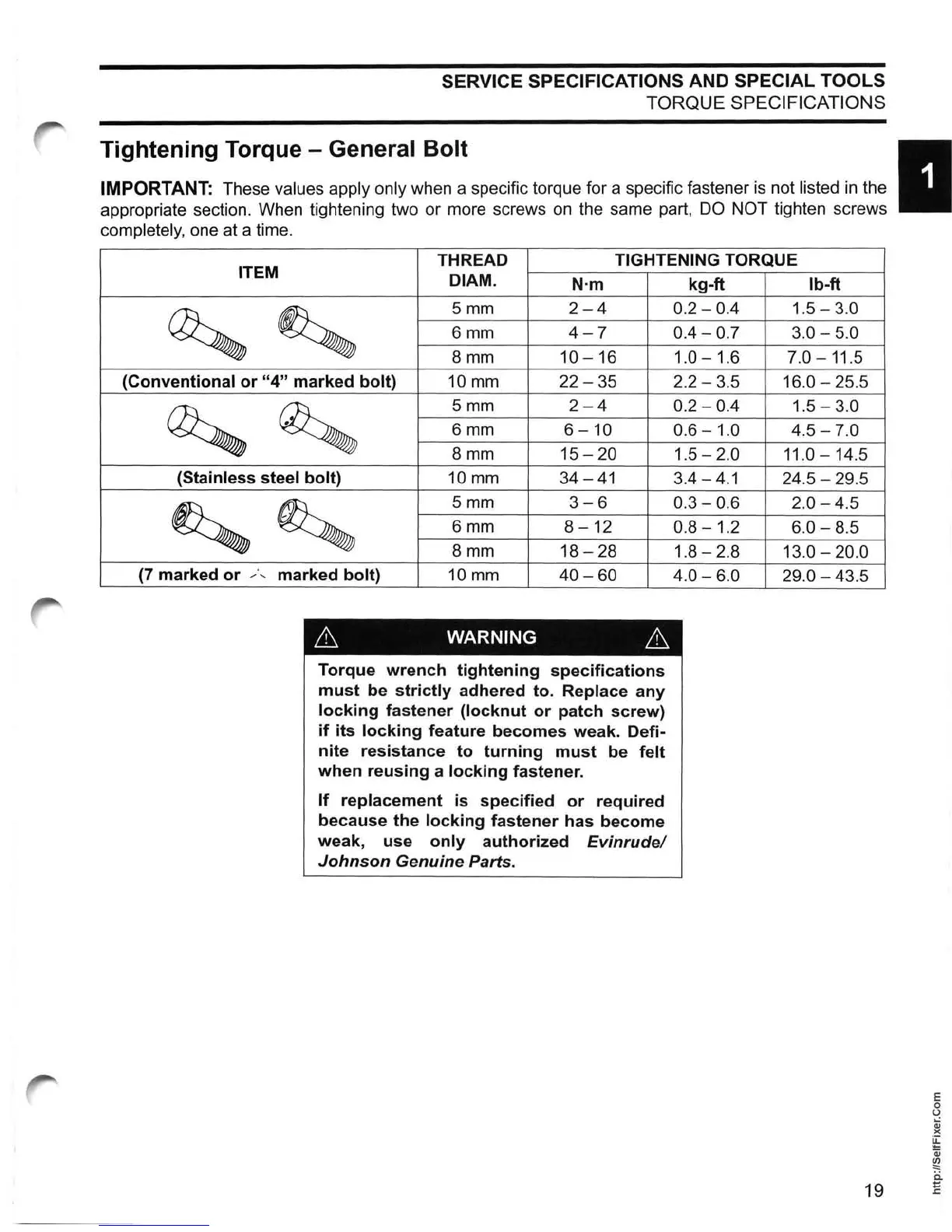

SERVICE SPECIFICATIONS AND SPECIAL TOOLS
TORQUE SPECIFICATIONS
Tightening Torque - General Bolt
IMPORTANT: These values apply only when a specific torque for a specific fastener is not listed in the
appropriate section. When tightening two or more screws
on the same part, DO NOT tighten screws
completely, one at a time.
ITEM
THREAD TIGHTENING TORQUE
DIAM.
N·m
~
~
5mm
2-4
6mm
4-7
8mm 10 -16
(Conventional or "4" marked bolt) 10 mm 22-35
~
~
5mm
2-4
6mm 6 -10
8mm 15 - 20
(Stainless steel bolt) 10 mm 34 -41
~
~
5mm 3-6
6mm 8 -12
8mm 18-28
(7 marked or --'-.. marked bolt)
10 mm
40-60
A WARNING 6
Torque wrench tightening specifications
must be strictly adhered to. Replace any
locking fastener (locknut or patch screw)
if its locking feature becomes weak. Defi-
nite resistance to turning must be felt
when reusing a locking fastener.
If replacement is specified or required
because the locking fastener has become
weak, use only authorized Evinrudel
Johnson Genuine Parts.
kg-ft Ib-ft
0.2
- 0.4 1.5 - 3.0
0.4
- 0.7 3.0 - 5.0
1.0
-1.6 7. 0-11.5
2.2- 3.5 16.0 - 25.5
0.2 - 0.4
1.5 - 3.0
0.6
-1.0 4.5 - 7.0
1.5 - 2.0 11.0-14.5
3.4 - 4.1
24.5 - 29.5
0.3-0.6 2.0 -4.5
0.8-1.2
6.0 - 8.5
1.8 - 2.8
13.0 - 20.0
4.0- 6.0
29.0
- 43.5
•
