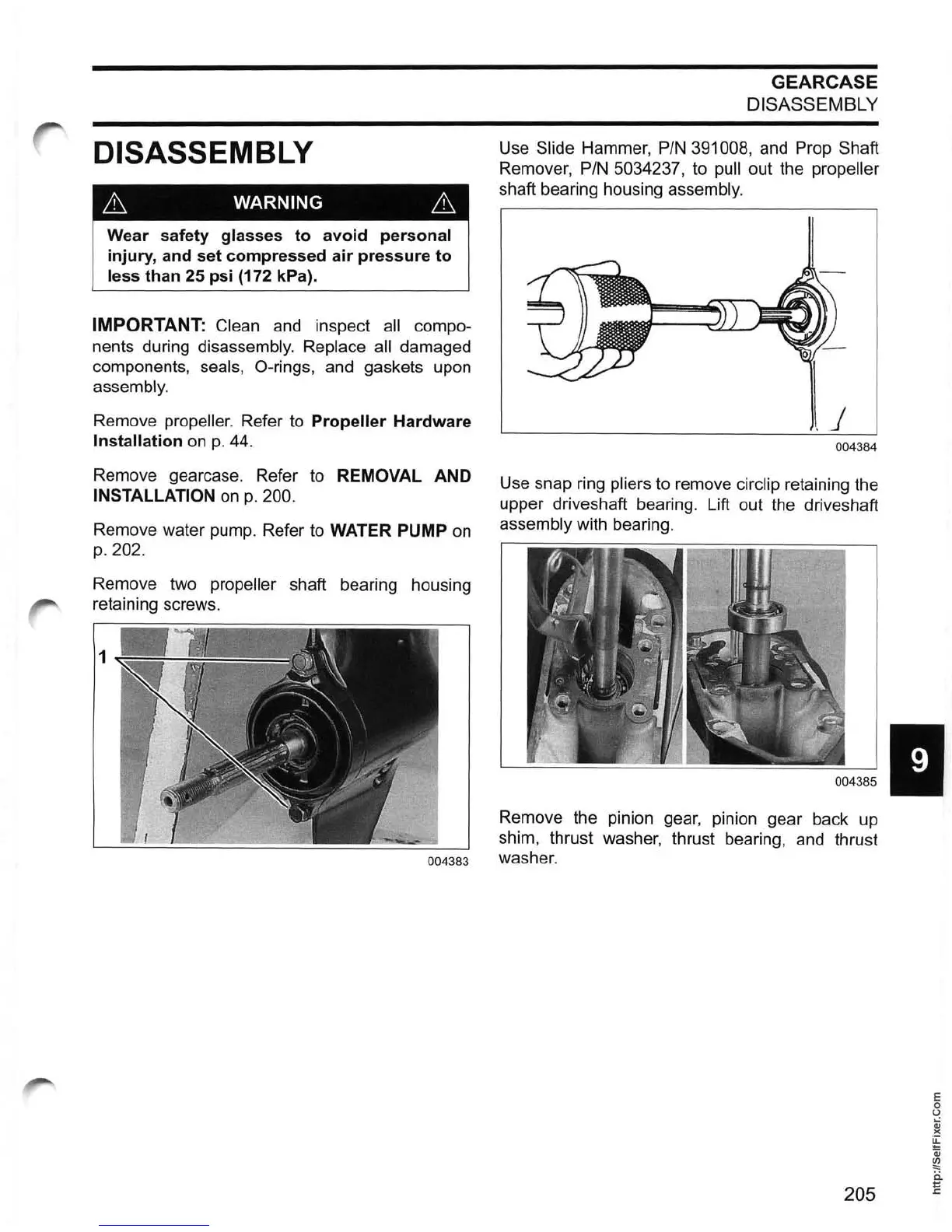

DISASSEMBLY
ill WARNING ill
Wear safety glasses to avoid personal
injury, and set compressed air pressure to
less than 25
psi
(172 kPa).
IMPORTANT: Clean and inspect all compo-
nents during
disassembly. Replace all damaged
components,
seals, O-rings, and gaskets upon
assembly.
Remove propeller. Refer to Propeller Hardware
Installation
on
p.
44
.
Remove gearcase. Refer to
REMOVAL AND
INSTALLATION
on
p.
200.
Remove water pump. Refer to WATER PUMP
on
p.202
.
Remove two propeller shaft bearing housing
retaining screws.
1
004383
GEARCASE
DISASSEMBLY
Use Slide Hammer,
PIN
391008, and Prop Shaft
Remover,
PIN
5034237, to pull out the propeller
shaft bearing housing assembly.
j
004384
Use snap ring pliers to remove circlip retaining the
upper driveshaft bearing. Lift out the driveshaft
assembly with bearing.
004385
Remove the pinion gear, pinion gear back up
shim, thrust washer, thrust bearing, and thrust
washer.
205
I
E
o
U
Qj
)(
~
Qj
~
ii
E
