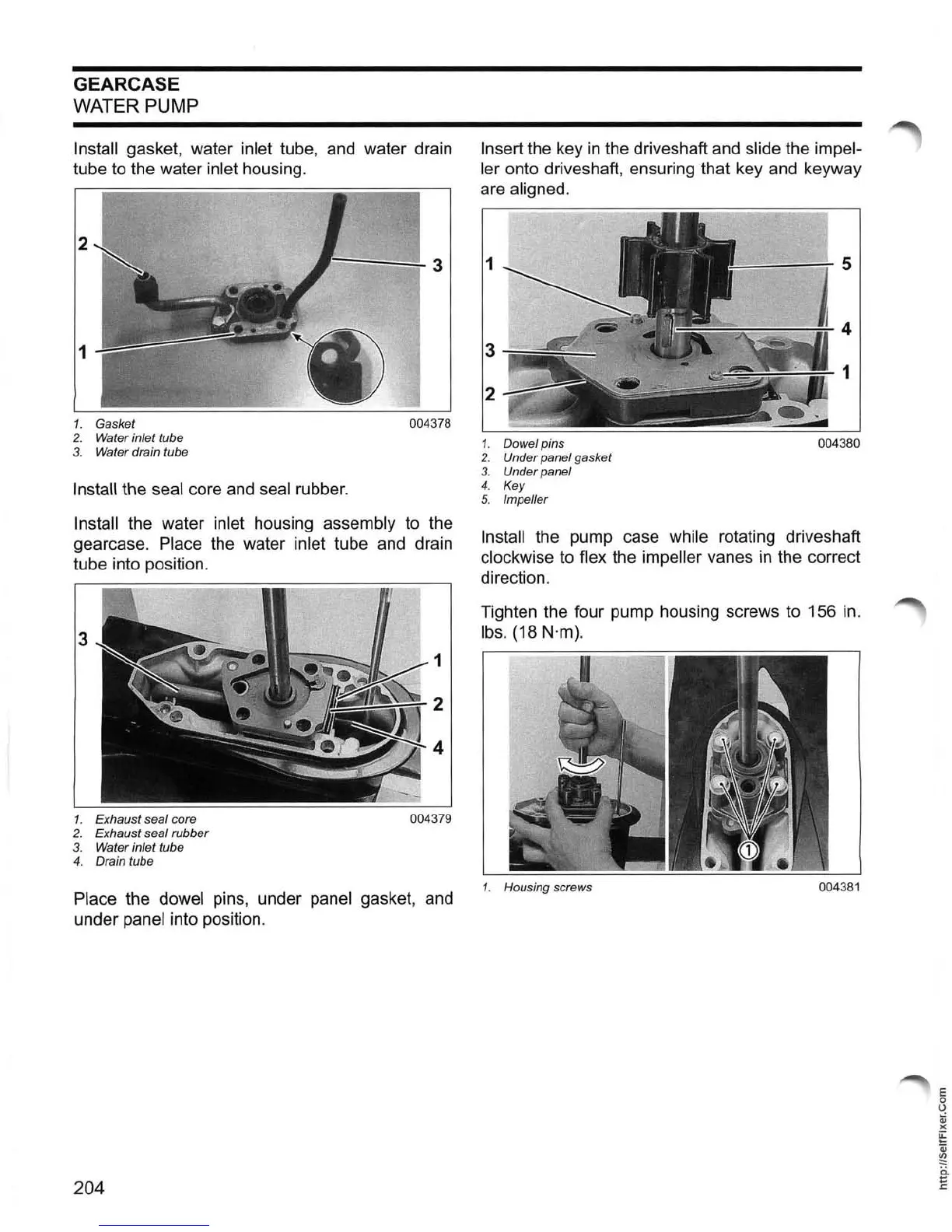

GEARCASE
WATER PUMP
Install gasket, water inlet tube, and water drain
tube to the water
inlet housing.
2
1
1. Gasket
004378
2. Water inlet tube
3. Water drain tube
Install the seal core and seal rubber.
Install the water inlet housing assembly to the
gearcase.
Place the water inlet tube and drain
tube into position.
3
1
2
4
1. Exhaust seal core
004379
2. Exhaust seal rubber
3. Water inlet tube
4. Drain tube
Place the dowel pins, under panel gasket, and
under
panel into position.
204
Insert the key in the driveshaft and slide the impel-
ler
onto driveshaft, ensuring that key and keyway
are
aligned.
1
= ==- 4
3
1
2
1. Dowel pins 004380
2. Under panel gasket
3. Under panel
4. Key
5. Impeller
Install the pump case while rotating driveshaft
clockwise to
flex the impeller vanes in the correct
direction.
Tighten the four pump housing screws to 156 in.
Ibs. (18 N·m).
1. Housing screws
004381
