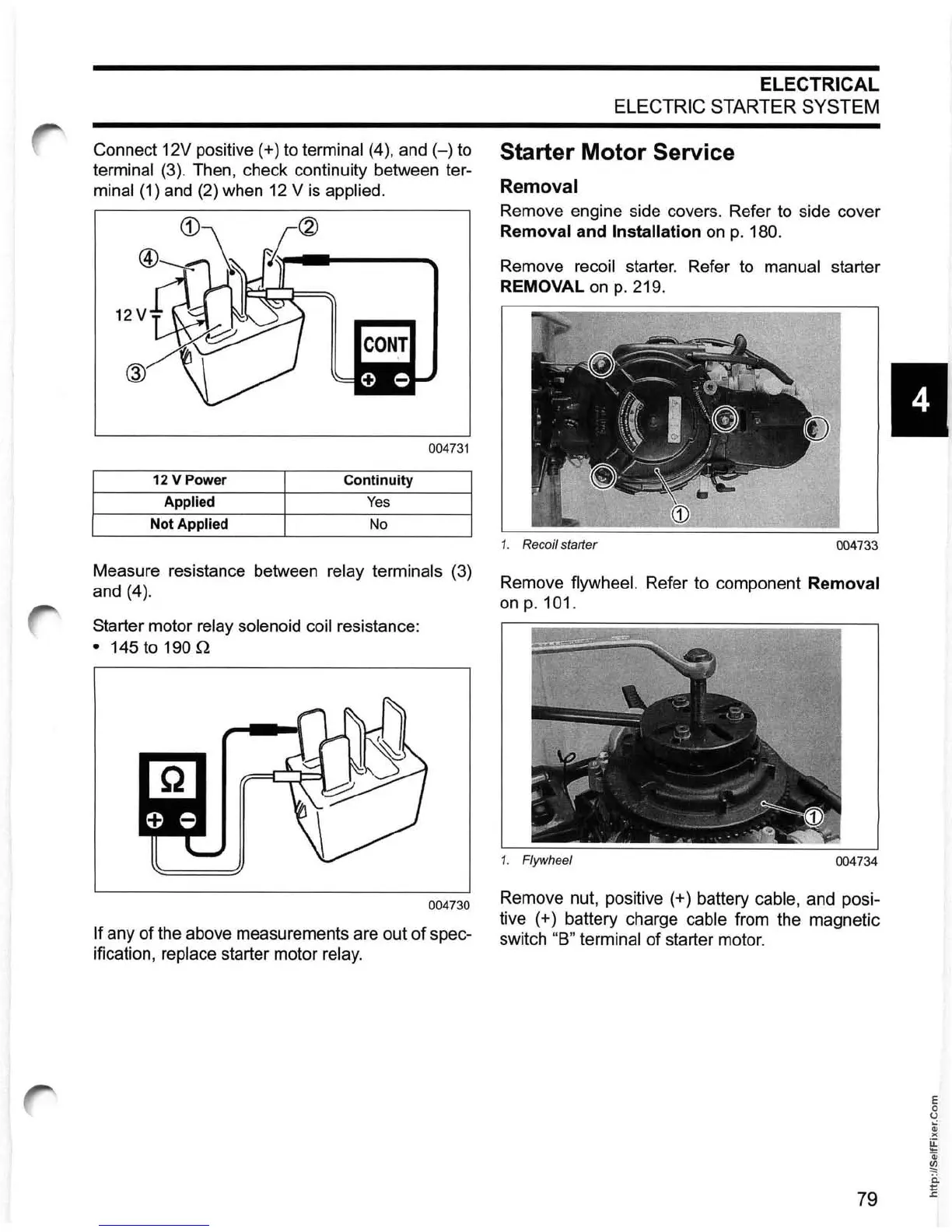

ELECTRICAL
ELECTRIC STARTER SYSTEM
Connect 12V positive (+) to terminal (4), and
(-)
to Starter Motor Service
terminal (3). Then, check continuity between ter-
minal (1) and (2) when 12 V is applied.
Removal
004731
12
V Power
Continuity
Applied
Yes
Not Applied
No
Measure resistance between relay terminals (3)
and (4).
Starter motor
relay solenoid coil resistance:
• 145 to 190 n
004730
If any
of
the above measurements are out
of
spec-
ification,
replace starter motor relay.
Remove engine side covers. Refer to side cover
Removal and Installation on
p.
180.
Remove recoil starter. Refer to manual starter
REMOVAL on
p.
219.
1. Recoil starter
004733
Remove flywheel. Refer to component Removal
onp
. 101.
1.
Flywheel
004734
Remove nut, positive (+) battery cable, and posi-
tive (+) battery charge
cable from the magnetic
switch
"8
" terminal
of
starter motor.
79
