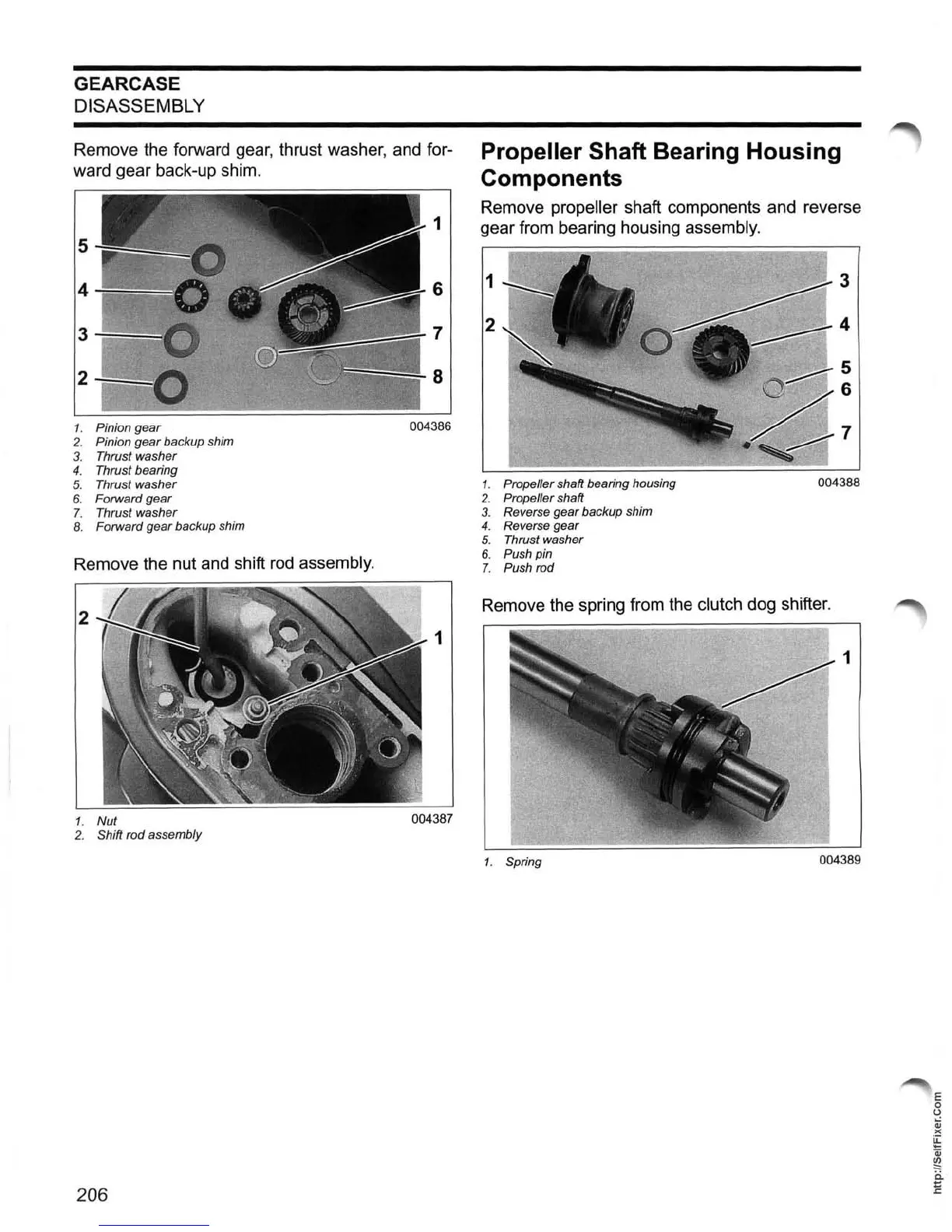

GEARCASE
DISASSEMBLY
Remove the forward gear, thrust washer, and for-
ward gear back-up shim.
1
6
7
8
1. Pinion gear
004386
2. Pinion gear backup shim
3. Thrust washer
4. Thrust bearing
5. Thrust washer
6. Forward gear
7. Thrust washer
8. Forward gear backup shim
Remove the nut and shift rod assembly.
2
1
1. Nut
004387
2. Shift rod assembly
206
Propeller Shaft Bearing Housing
Components
Remove propeller shaft components and reverse
gear
from bearing housing assembly.
1
2
1. Propeller shaft bearing housing
004388
2. Propeller shaft
3. Reverse gear backup shim
4. Reverse gear
5. Thrust washer
6. Push pin
7. Push rod
Remove the spring from the clutch dog shifter.
1
1. Spring
004389
