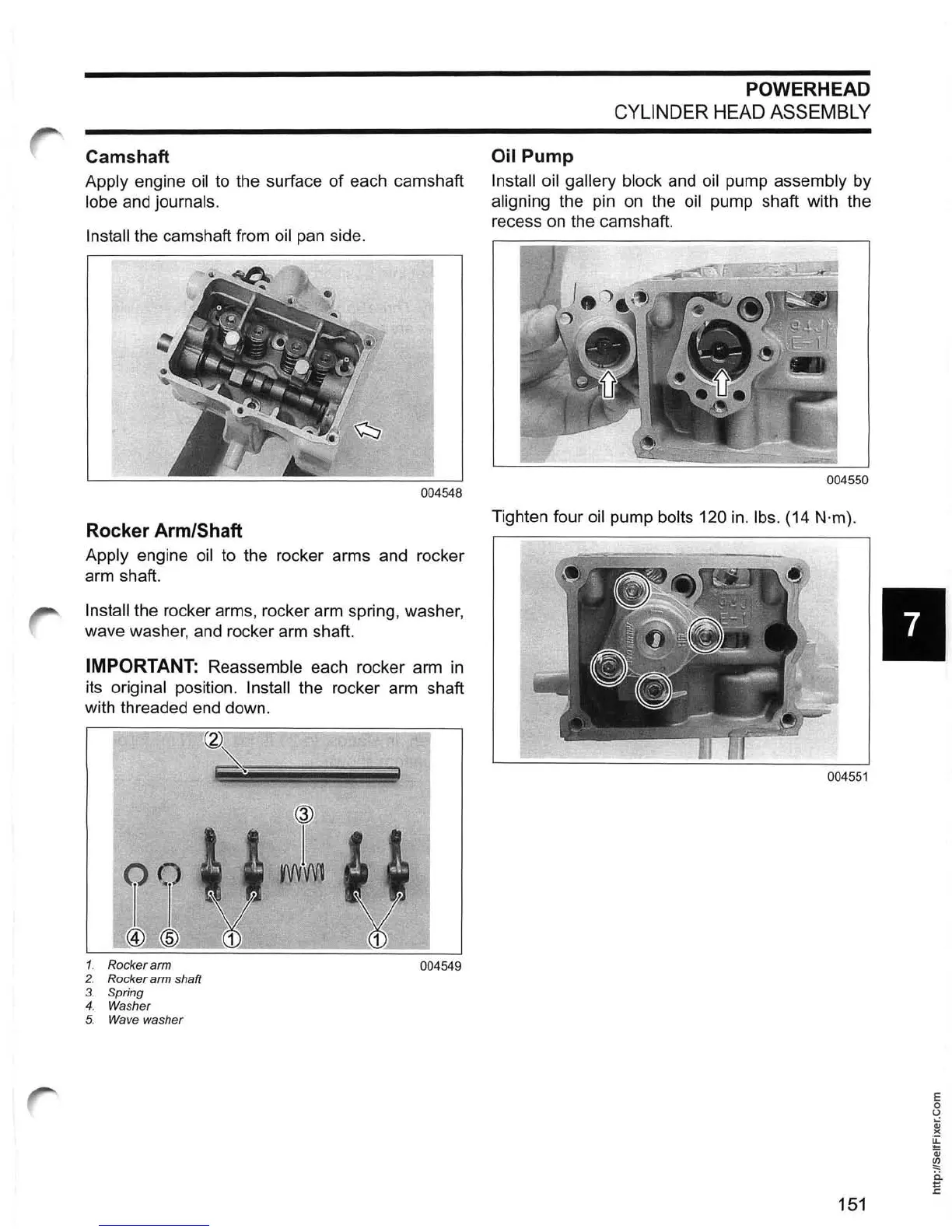

Camshaft
Apply engine oil to the surface of each camshaft
lobe and journals.
Install
the camshaft from oil
pan
side.
004548
Rocker Arm/Shaft
Apply engine oil to the rocker arms and rocker
arm shaft.
Install the rocker arms, rocker arm spring, washer,
wave washer, and rocker arm shaft.
IMPORTANT: Reassemble each rocker arm
in
its original position. Install the rocker arm shaft
with threaded
end
down.
1. Rocker arm
004549
2.
Rocker arm shaft
3.
Spring
4. Washer
5.
Wave washer
Oil
Pump
POWERHEAD
CYLINDER HEAD ASSEMBLY
Install oil gallery block and oil pump assembly by
aligning the pin
on
the oil pump shaft with the
recess
on
the camshaft.
004550
Tighten four oil pump bolts 120
in
. Ibs. (14 N·m).
004551
