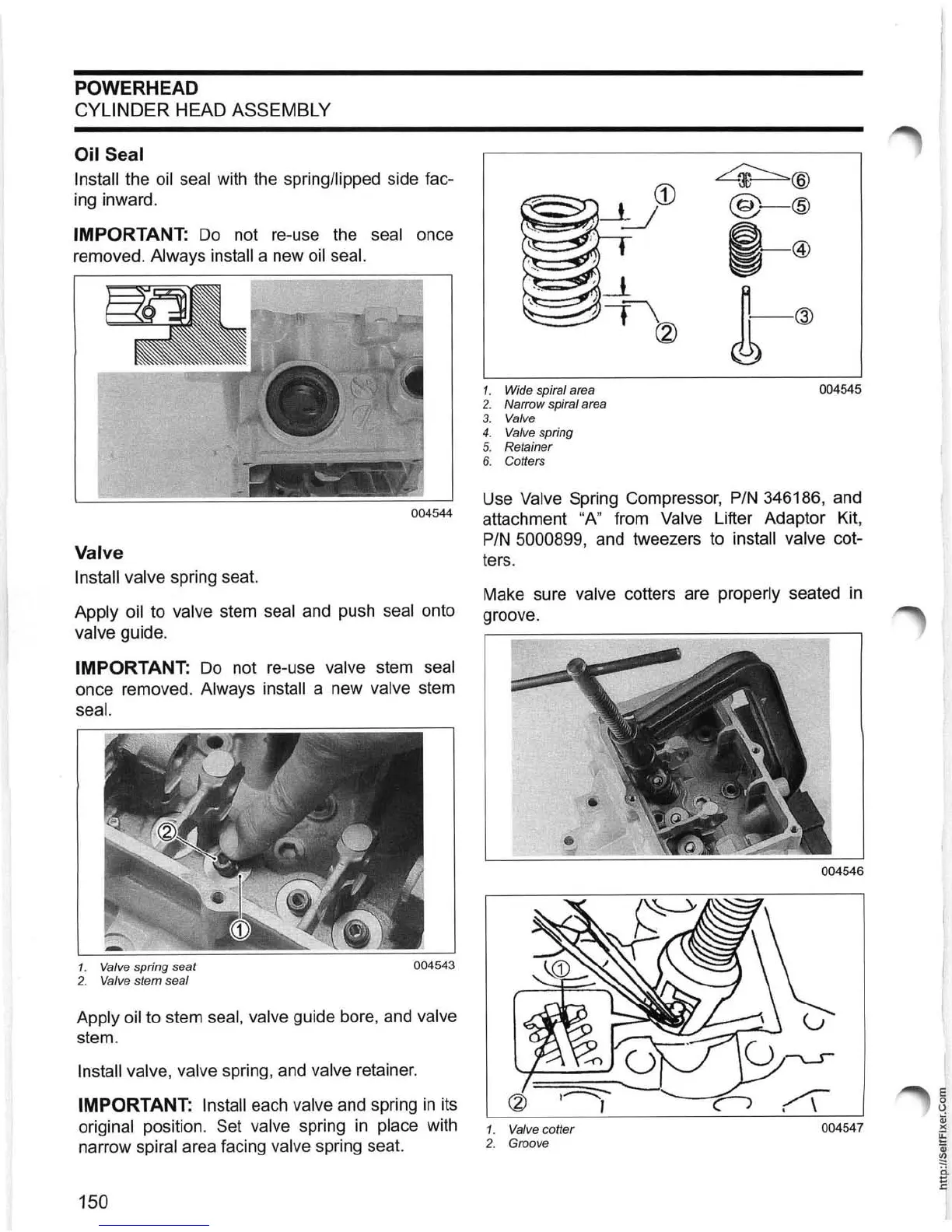

POWERHEAD
CYLINDER HEAD
ASSEMBLY
Oil Seal
Install the oil seal with the springllipped side fac-
ing inward.
IMPORTANT: Do not re-use the seal once
removed.
Always install a new oil seal.
004544
Valve
Install valve spring seat.
Apply oil to valve stem seal and push seal onto
valve guide.
IMPORTANT:
Do
not re-use valve stem seal
once removed. Always install a new valve stem
seal.
1. Valve spring seat
004543
2. Valve stem seal
Apply oil to stem seal, valve guide bore, and valve
stem.
Install valve, valve spring, and valve retainer.
IMPORTANT: Install each valve and spring
in
its
1. Wide spiral area
2. Narrow spiral area
3. Valve
4. Valve spring
5. Retainer
6. Cotters
~@
@-@
I-@
t-@
004545
Use Valve Spring Compressor,
PIN
346186, and
attachment
"A" from Valve Lifter Adaptor Kit,
PIN
5000899, and tweezers to install valve cot-
ters.
Make sure
valve cotters are properly seated
in
groove.
004546
original position. Set valve spring
in
place with 1. Valve cotter 004547
narrow spiral area facing valve spring seat. 2. Groove
