FUEL SYSTEM
THROTTLE
CONTROL
Remote Models
I
"j
I :
r-'
!
\
\
\f
'!
r- -l
!
i
I
!
!
i
i

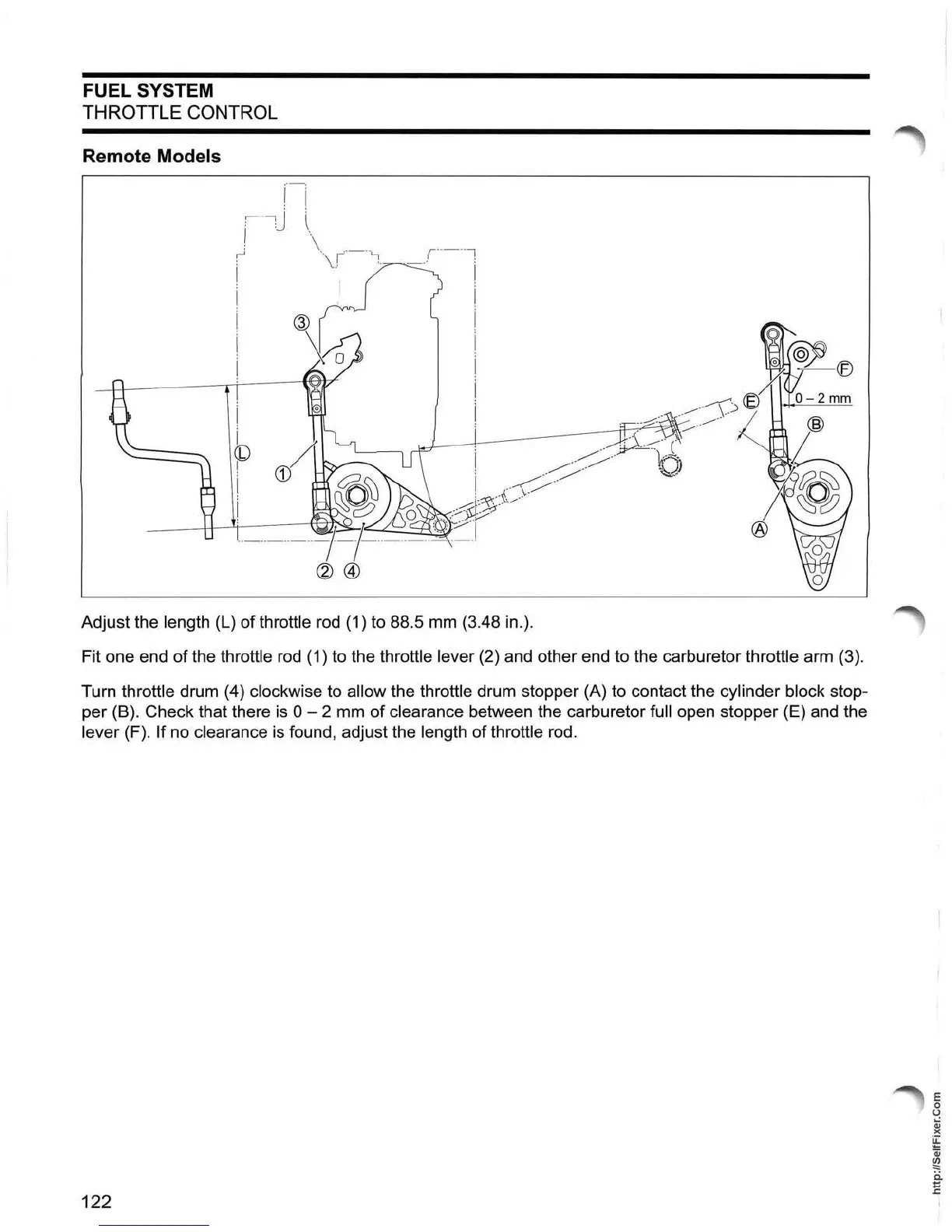

Adjust the length (L) of throttle rod (1) to 88.5 mm (3.48 in.).
------::-
Fit one end of the throttle rod (1) to the throttle lever (2) and other end to the carburetor throttle arm (3).
Turn
throttle drum (4) clockwise to allow the throttle drum stopper (A) to contact the cylinder block stop-
per
(8). Check that there is 0 - 2 mm of clearance between the carburetor full open stopper (E) and the
lever (F). If no clearance is found, adjust the length of throttle rod.
