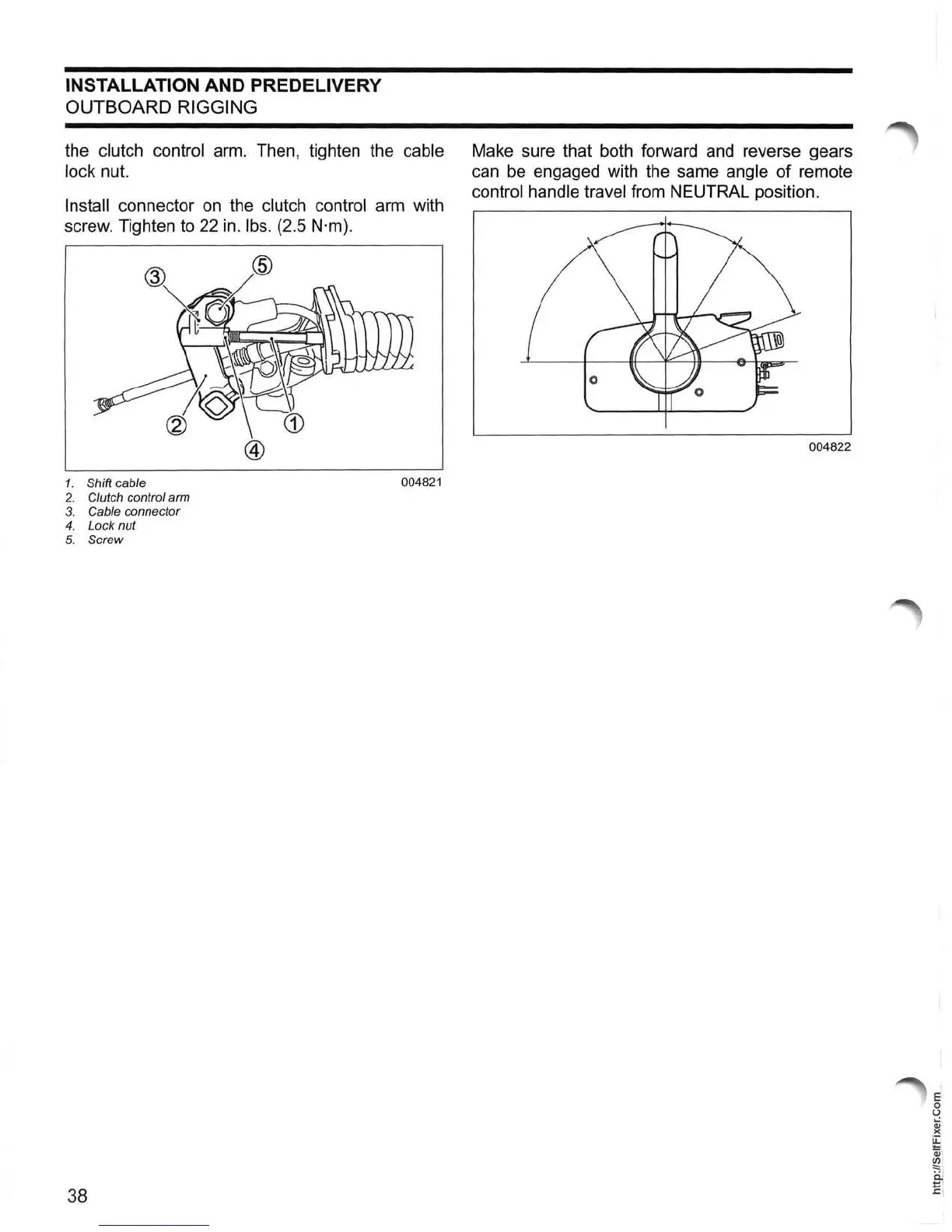

INSTALLATION AND PREDELIVERY
OUTBOARD RIGGING
the clutch control arm. Then, tighten the cable
lock
nut.
Install connector
on
the clutch control arm with
screw. Tighten to
22
in.
Ibs
. (2.5 N·m).
1.
Shift cable
004821
2.
Clutch control arm
3. Cable connector
4.
Lock nut
5.
Screw
38
Make sure that both forward and reverse gears
can
be
engaged with the same angle
of
remote
control handle travel from NEUTRAL position.
004822
