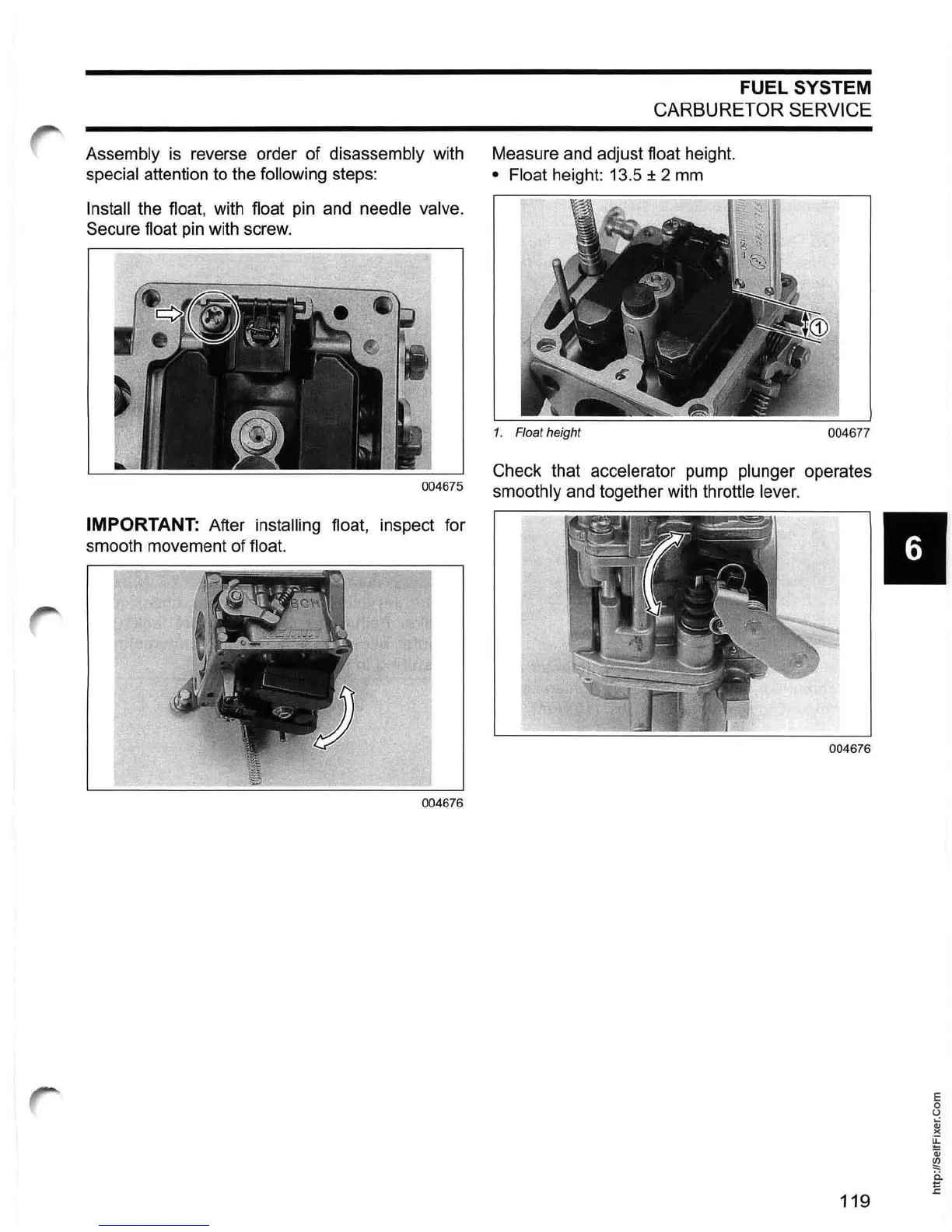

Assembly
is
reverse order of disassembly with
special attention to the following steps:
Install the float, with float pin and needle valve.
Secure float pin with screw.
004675
IMPORTANT: After installing float, inspect for
smooth movement of float.
004676
FUEL SYSTEM
CARBURETOR SERVICE
Measure and adjust float height.
• Float height: 13.5 ± 2
mm
1. Float height
004677
Check that accelerator pump plunger operates
smoothly and together with throttle lever.
004676
119
