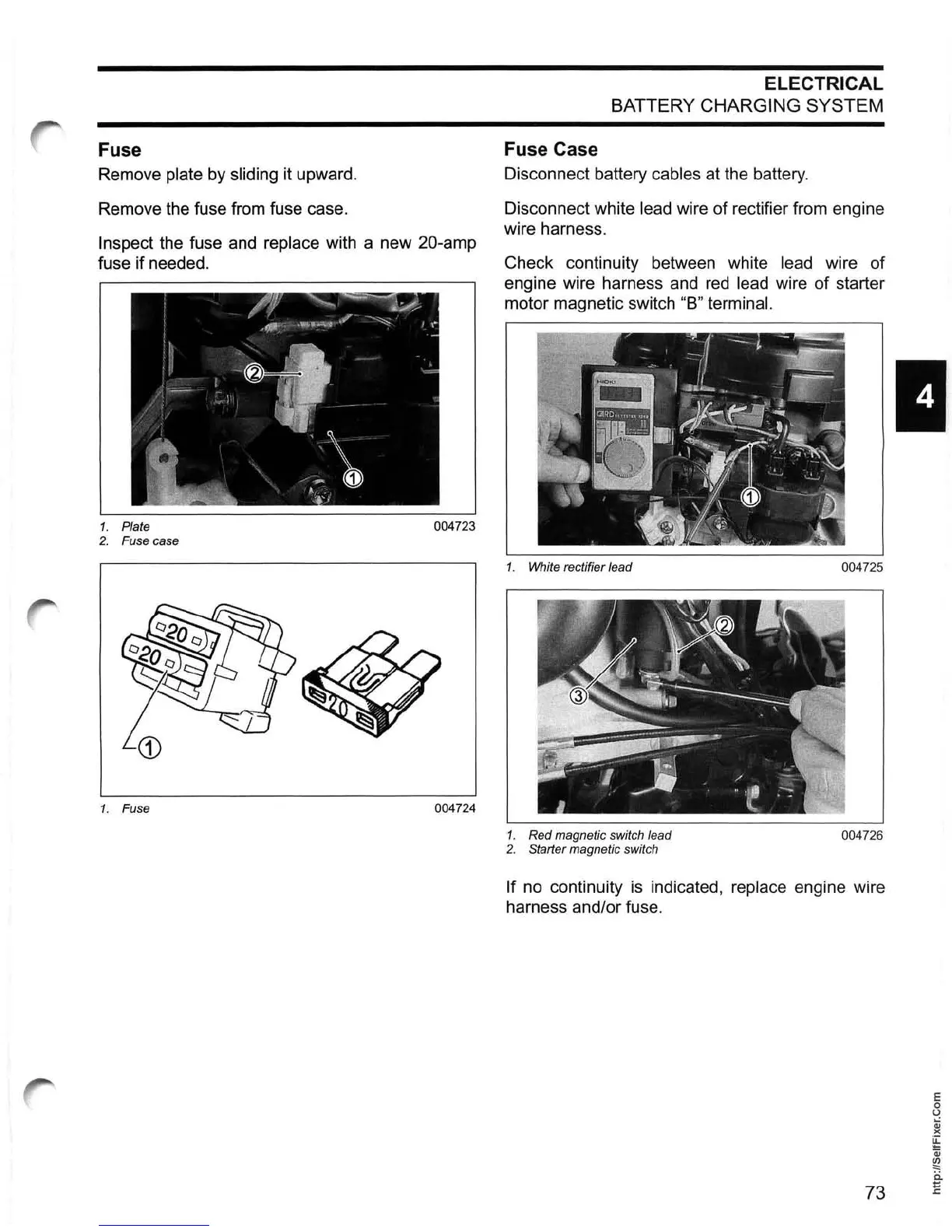

Fuse
Remove plate
by
sliding it upward.
Remove the fuse from fuse case.
Inspect the fuse and replace with a new 20-amp
fuse if needed.
1.
Plate
004723
2. Fuse case
1. Fuse
004724
ELECTRICAL
BATTERY CHARGING
SYSTEM
Fuse Case
Disconnect battery cables at the battery.
Disconnect white
lead wire of rectifier from engine
wire harness.
Check continuity between white
lead wire of
engine wire harness and
red
lead wire
of
starter
motor magnetic switch
"8" terminal.
1.
White rectifier lead 004725
1.
Red magnetic switch lead
004726
2. Starter magnetic switch
If no continuity is indicated, replace engine wire
harness and/or fuse.
I
E
o
U
Qj
)(
~
Qj
~
ii
73 E
