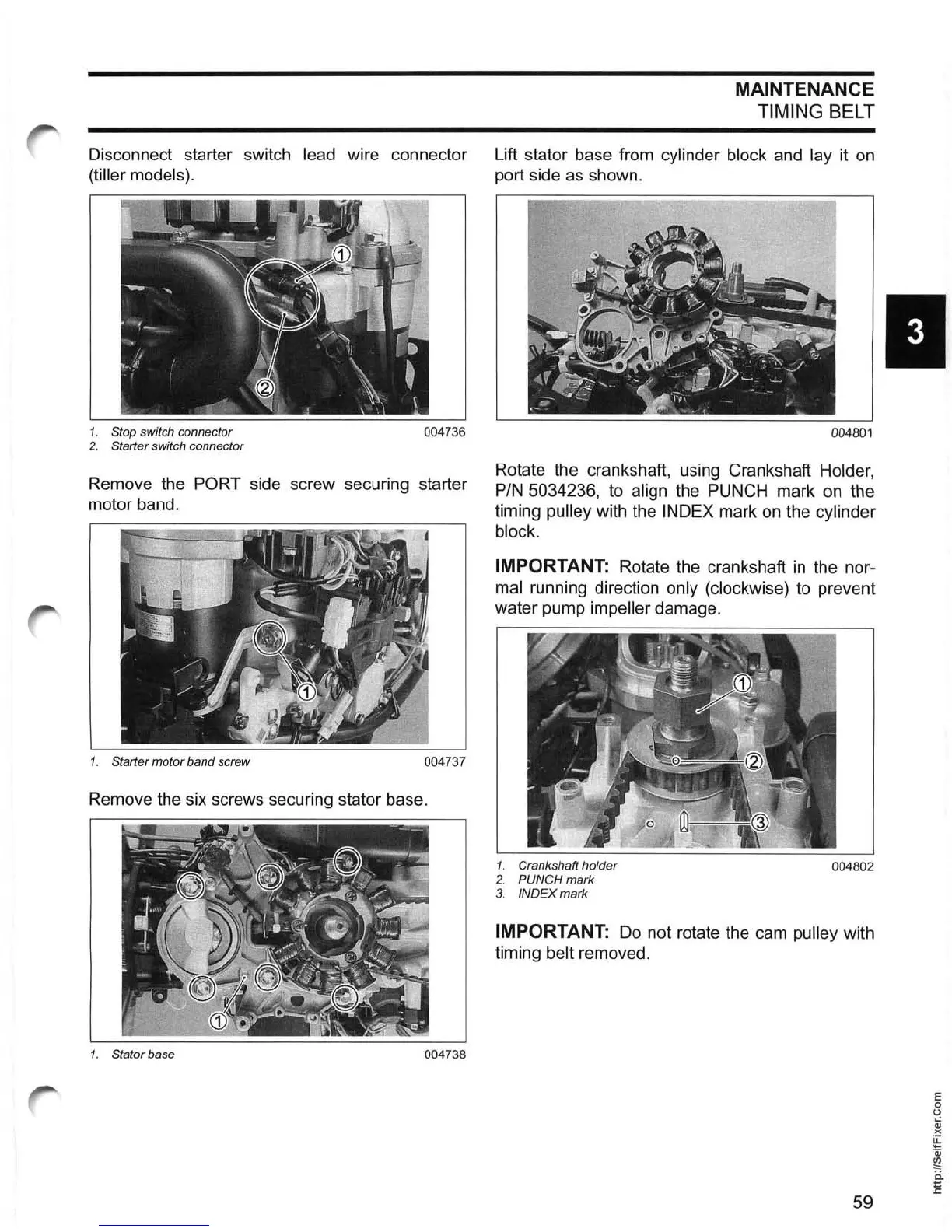

Disconnect starter switch lead wire connector
(tiller models).
1.
Stop switch connector
004736
2. Starter switch connector
Remove the PORT side screw securing starter
motor band.
1.
Starter motor band screw
004737
Remove the six screws securing stator base.
1. Stator base 004738
MAINTENANCE
TIMING
BELT
Lift stator base from cylinder block and lay it
on
port side as shown.
004801
Rotate the crankshaft, using Crankshaft Holder,
PIN
5034236, to align the PUNCH mark on the
timing
pulley with the INDEX mark
on
the cylinder
block.
IMPORTANT: Rotate the crankshaft
in
the nor-
mal running direction only (clockwise) to prevent
water pump
impeller damage.
1. Crankshaft holder
004802
2. PUNCH mark
3.
INDEX mark
IMPORTANT:
Do
not rotate the cam pulley with
timing
belt removed.
59
•
