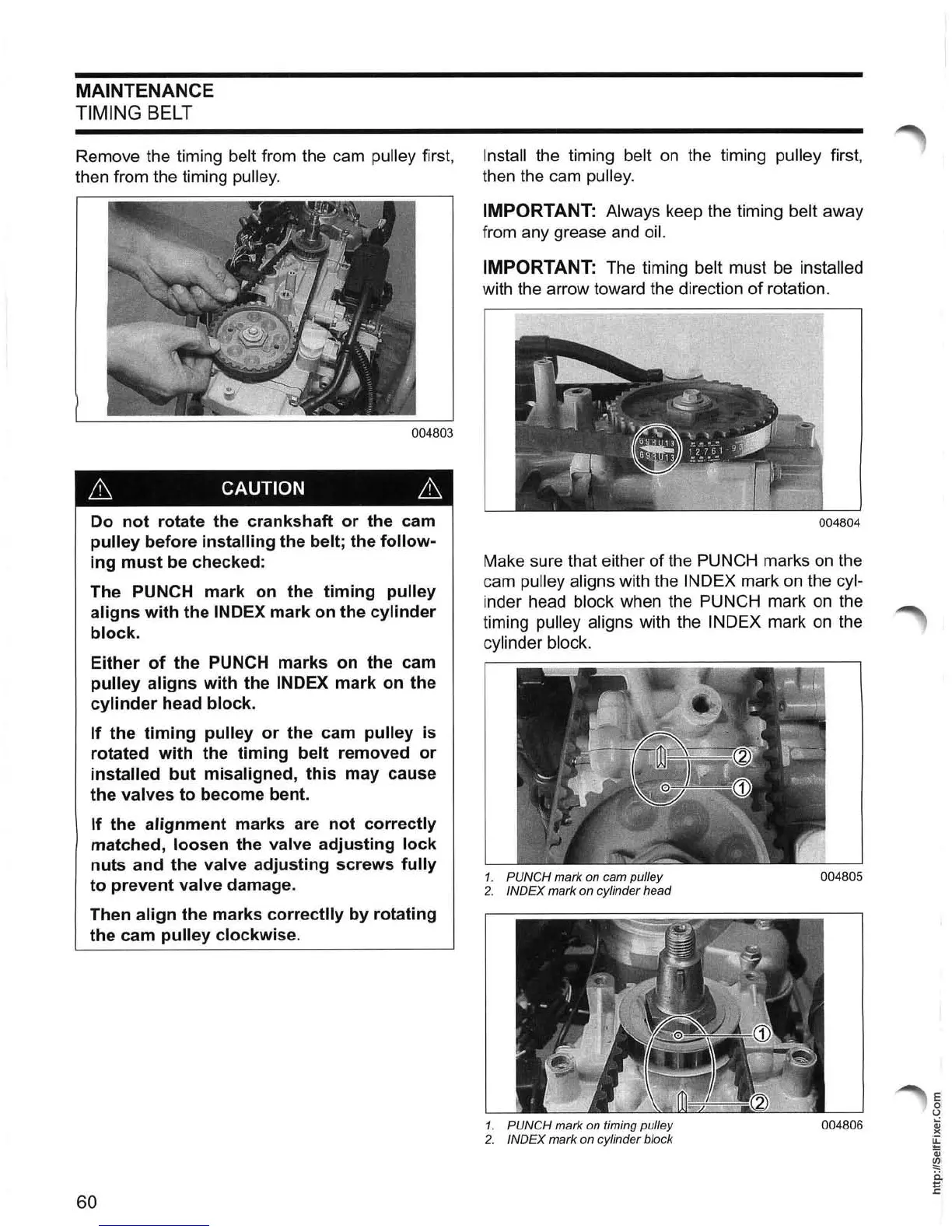

MAINTENANCE
TIMING
BELT
Remove the timing belt from the cam pulley first,
then from the timing
pulley.
004803
ill CAUTION 6
Do not rotate the crankshaft or the cam
pulley before installing the belt; the follow-
ing must
be
checked:
The PUNCH mark
on
the timing pulley
aligns
with the INDEX mark
on
the cylinder
block.
Either of the PUNCH marks
on
the cam
pulley aligns with the INDEX mark
on
the
cylinder head block.
If
the timing pulley or the cam pulley
is
rotated with the timing belt removed or
installed but misaligned, this may cause
the
valves to become bent.
If the alignment marks are not correctly
matched, loosen the valve adjusting lock
nuts and the valve adjusting screws fully
to prevent valve damage.
Then
align the marks correctlly
by
rotating
the cam
pulley clockwise.
60
Install the timing belt
on
the timing pulley first,
then the cam
pulley.
IMPORTANT: Always keep the timing belt away
from any grease and
oil.
IMPORTANT: The timing belt must be installed
with the arrow toward the direction
of
rotation.
004804
Make sure that either of the PUNCH marks
on
the
cam
pulley aligns with the INDEX mark
on
the cyl-
inder head block when the PUNCH mark
on
the
timing
pulley aligns with the INDEX mark
on
the
cylinder block.
1.
PUNCH mark on cam pulley
004805
2.
INDEX mark on cylinder head
1. PUNCH mark on timing pulley
004806
2.
INDEX mark on cylinder block
